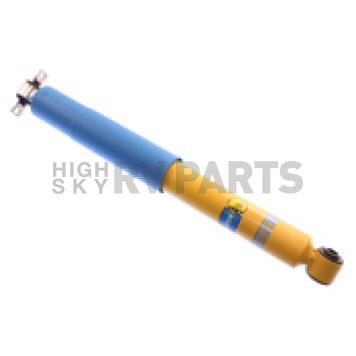

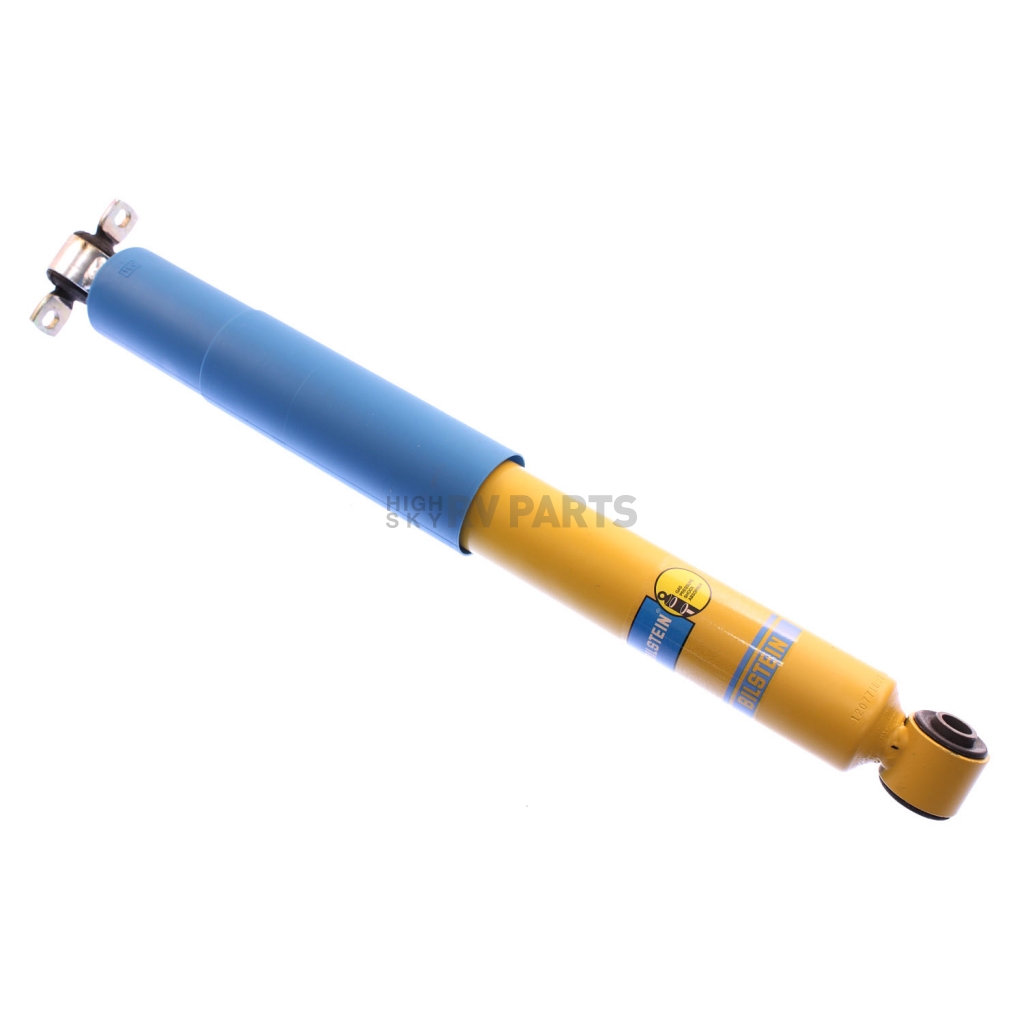

Bilstein 4600 Series Shock Absorber - 24-186209
Adjustable Valving
No
Body Color
Yellow
Body Material
Steel
Compressed Length (IN)
13.36 Inch
Estimated Install Time (Hours)
0.5
Extended Length (IN)
21.02 Inch
Includes Boot
Yes
Includes Dust Shield
No
Includes Hardware
No
Internal Design
Monotube
Lower Mounting Style
Eyelet
Share this page
Shock Absorber; 4600 Series Shock; Nitrogen Gas Charged; Limited Lifetime Warranty; Not Adjustable Valving; Without Shock Boots; Single
MPN: 24-186209
Bilstein 4600 Series Shock Absorbers and Struts are designed specifically to help your Truck, Van or SUV reach its pinnacle in ride performance and handling, while still providing the comfortable ride that has come to be expected from the name BILSTEIN. A 4600 Series equipped vehicle offers superior control compared to conventional alternatives, allowing you to keep cargo secure-from your kids to work equipment, mile after mile. Utilizing our patented design, the dampers allow the vehicle to glide over every type of road surface you may encounter while maintaining complete command at all times. These dampers are the least expensive and most effective upgrade to extend the service life of any vehicle out on the road today.Type: Nitrogen Gas Charged
With Coil Spring: No
Internal Design: Monotube
Adjustable Valving: No
Extended Length (IN): 21.02 Inch
Compressed Length (IN): 13.36 Inch
Upper Mounting Style: Cross Pin
Lower Mounting Style: Eyelet
Body Color: Yellow
Quantity: Single
Rod Diameter (IN): 1/2 Inch
Valving Type: Self-Adjusting Deflective Disc Valving
Rod Material: Steel
Body Material: Steel
With Reservoir: No
Includes Dust Shield: No
Includes Hardware: No
Includes Boot: Yes
Estimated Install Time (Hours): 0.5
Features
- Increased Power Reserves And Service Life, Even When Pulling Transporters And Trailers Or During Frequent Journeys With Loads
- Optimum Addition And Enhanced Lane Change Stability In Both Day To Day And Extreme Solutions
- Marked Improvement In Safety And Performance Without Additional Spring Changes
- Bilstein Gas Pressure Technology
- Bilstein Monotube/Upside Down Technology
- Road And Track Tested By Bilstein For Fine Tuning
- Limited Lifetime Warranty
Specifications of Bilstein 4600 Series Shock Absorber - 24-186209 | |
Adjustable Valving | No |
Body Color | Yellow |
Body Material | Steel |
Compressed Length (IN) | 13.36 Inch |
Estimated Install Time (Hours) | 0.5 |
Extended Length (IN) | 21.02 Inch |
Includes Boot | Yes |
Includes Dust Shield | No |
Includes Hardware | No |
Internal Design | Monotube |
Lower Mounting Style | Eyelet |
Quantity | Single |
Rod Diameter (IN) | 1/2 Inch |
Rod Material | Steel |
Type | Nitrogen Gas Charged |
Upper Mounting Style | Cross Pin |
Valving Type | Self-Adjusting Deflective Disc Valving |
With Coil Spring | No |
With Reservoir | No |
2004 Chevrolet Colorado
2005 Chevrolet Colorado
2006 Chevrolet Colorado
2007 Chevrolet Colorado
2008 Chevrolet Colorado
2009 Chevrolet Colorado
2010 Chevrolet Colorado
2011 Chevrolet Colorado
2012 Chevrolet Colorado
2005 Chevrolet Colorado
2006 Chevrolet Colorado
2007 Chevrolet Colorado
2008 Chevrolet Colorado
2009 Chevrolet Colorado
2010 Chevrolet Colorado
2011 Chevrolet Colorado
2012 Chevrolet Colorado
2004 GMC Canyon
2005 GMC Canyon
2006 GMC Canyon
2007 GMC Canyon
2008 GMC Canyon
2009 GMC Canyon
2010 GMC Canyon
2011 GMC Canyon
2012 GMC Canyon
2005 GMC Canyon
2006 GMC Canyon
2007 GMC Canyon
2008 GMC Canyon
2009 GMC Canyon
2010 GMC Canyon
2011 GMC Canyon
2012 GMC Canyon
2006 Isuzu i-280
2007 Isuzu i-290
2008 Isuzu i-290
2008 Isuzu i-290
2008 Isuzu i-370
