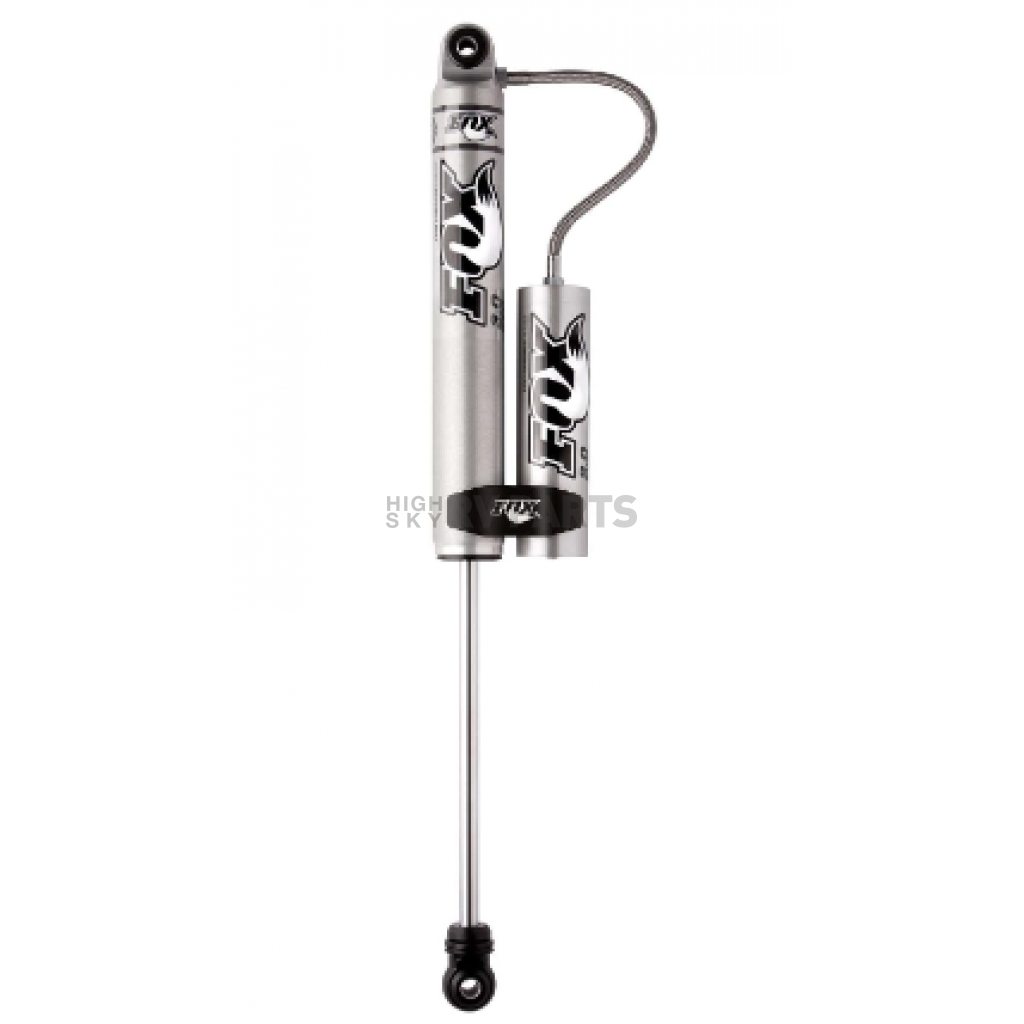

Fox Shocks Shock Absorber - 985-24-109

Brand: Fox Shocks Manufacturer
0 reviews
  • Have a product question? Ask us
  • Part Number: 985-24-109
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by June 20
Retail: $374.84
Price: $356.99
You Save: $17.85
Adjustable
No
Body Color
Silver
Body Material
Aluminum
Compressed Length (IN)
16.2 Inch
Estimated Install Time (Hours)
0.5
Extended Length (IN)
26.8 Inch
Includes Boot
No
Includes Dust Shield
No
Includes Hardware
Yes
Internal Design
Monotube
Lower Mounting Style
Cross Pin
Share this page

Fox Shocks Shock Absorber

Shock Absorber; 2.0 Performance Series; Hydraulic/ Nitrogen Gas Charged; With External Reservoir; 1 Year Factory Warranty; Non Adjustable Valving; 26.8 Extended Height/ 16.2 Compressed Height; SM3 Top Mount/ BP1 Bottom Mount; Without Shock Boot; ALUMINUM; Single

MPN: 98524109

The aluminum bodied 2.0 Inch Performance Series Reservoir smooth body shock delivers FOX's industry leading and race dominating performance in an affordable, hassle-free bolt on package. Its heat reducing design includes a metal impacted clear anodized aluminum shock body that dissipates heat faster than a conventional steel body shock. Its external reservoir allows for increase oil and nitrogen capacity while delivering striking race look. The included black anodized reservoir mounting clamp and other components are CNC machined from 6061-T6 aluminum. The race developed high flow damping piston matched with application specific valving provides the 2.0 Inch Performance Series Reservoir shock a predicable ride quality capable of handling the roughest road conditions.
Type: Hydraulic/ Nitrogen Gas Charged
With Coil Spring: No
Internal Design: Monotube
Adjustable: No
Extended Length (IN): 26.8 Inch
Compressed Length (IN): 16.2 Inch
Upper Mounting Style: Stud
Lower Mounting Style: Cross Pin
Body Color: Silver
Quantity: Single
Rod Diameter (IN): 5/8 Inch
Valving Type: Application Specific Valving
Rod Finish: Chrome Plated
Rod Material: Steel
Body Material: Aluminum
With Reservoir: Yes
Includes Dust Shield: No
Includes Hardware: Yes
Includes Boot: No
Estimated Install Time (Hours): 0.5

Features

  • Body: 2.0 Inch Metal Impacted 6061-T6 Aluminum Will Resist Rust Over Time
  • Body Plating: Clear-Anodized For A Durable Finish
  • External Reservoir: 2.0 Inch Smooth Bore 6061-T6 Aluminum Is Hard Anodized
  • Black-Anodized, CNC-Machined 6061-T6 Billet Aluminum Components
  • 5/8 Inch Hard Chrome Plated Heat-Treated Alloy Steel Shaft
  • Race-Developed High-Flow Piston Design. Application Specific Valving To Maximize Performance
  • JM92 Advanced Suspension Fluid For Improved Performance At Variable Temperatures
  • Limited 1 Year Factory Warranty And Limited 90 Day Valving Warranty
Specifications of Fox Shocks Shock Absorber - 985-24-109
Adjustable No
Body Color Silver
Body Material Aluminum
Compressed Length (IN) 16.2 Inch
Estimated Install Time (Hours) 0.5
Extended Length (IN) 26.8 Inch
Includes Boot No
Includes Dust Shield No
Includes Hardware Yes
Internal Design Monotube
Lower Mounting Style Cross Pin
Quantity Single
Rod Diameter (IN) 5/8 Inch
Rod Finish Chrome Plated
Rod Material Steel
Type Hydraulic/ Nitrogen Gas Charged
Upper Mounting Style Stud
Valving Type Application Specific Valving
With Coil Spring No
With Reservoir Yes

1984 Jeep Cherokee
1985 Jeep Cherokee
1986 Jeep Cherokee
1987 Jeep Cherokee
1988 Jeep Cherokee
1989 Jeep Cherokee
1990 Jeep Cherokee
1991 Jeep Cherokee
1992 Jeep Cherokee
1993 Jeep Cherokee
1994 Jeep Cherokee
1995 Jeep Cherokee
1996 Jeep Cherokee
1997 Jeep Cherokee
1998 Jeep Cherokee
1999 Jeep Cherokee
2000 Jeep Cherokee
2001 Jeep Cherokee

1986 Jeep Comanche
1987 Jeep Comanche
1988 Jeep Comanche
1989 Jeep Comanche
1990 Jeep Comanche
1991 Jeep Comanche
1992 Jeep Comanche

1993 Jeep Grand Cherokee
1994 Jeep Grand Cherokee
1995 Jeep Grand Cherokee
1996 Jeep Grand Cherokee
1997 Jeep Grand Cherokee
1998 Jeep Grand Cherokee
1999 Jeep Grand Cherokee
2000 Jeep Grand Cherokee
2001 Jeep Grand Cherokee
2002 Jeep Grand Cherokee
2003 Jeep Grand Cherokee
2004 Jeep Grand Cherokee

1997 Jeep Wrangler TJ
1998 Jeep Wrangler TJ
1999 Jeep Wrangler TJ
2000 Jeep Wrangler TJ
2001 Jeep Wrangler TJ
2002 Jeep Wrangler TJ
2003 Jeep Wrangler TJ
2004 Jeep Wrangler TJ
2005 Jeep Wrangler TJ
2006 Jeep Wrangler TJ
