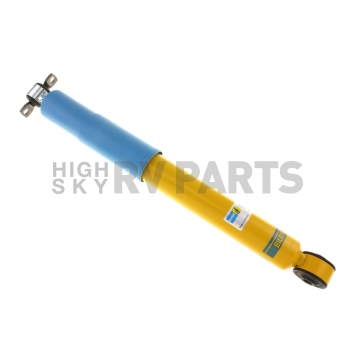

Bilstein 4600 Series Shock Absorber - 24-024815

Brand: Bilstein Bilstein
  • Have a product question? Ask us
  • Part Number: 24-024815
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: 2 - 3 Weeks
Retail: $143.84
Price: $136.99
You Save: $6.85
Adjustable Valving
 No
Body Color
 Yellow
Body Material
 Steel
Compressed Length (IN)
 13.29 Inch
Estimated Install Time (Hours)
 0.5
Extended Length (IN)
 20.89 Inch
Includes Boot
 Yes
Includes Dust Shield
 No
Includes Hardware
 No
Internal Design
 Monotube
Lower Mounting Style
 Eyelet
Share this page

Shock Absorber; 4600 Series Shock; Nitrogen Gas Charged; Limited Lifetime Warranty; Not Adjustable Valving; Without Shock Boots; Single

MPN: 24-024815

Bilstein 4600 Series Shock Absorbers and Struts are designed specifically to help your Truck, Van or SUV reach its pinnacle in ride performance and handling, while still providing the comfortable ride that has come to be expected from the name BILSTEIN. A 4600 Series equipped vehicle offers superior control compared to conventional alternatives, allowing you to keep cargo secure-from your kids to work equipment, mile after mile. Utilizing our patented design, the dampers allow the vehicle to glide over every type of road surface you may encounter while maintaining complete command at all times. These dampers are the least expensive and most effective upgrade to extend the service life of any vehicle out on the road today.

Type: Nitrogen Gas Charged
With Coil Spring: No
Internal Design: Monotube
Adjustable Valving: No
Extended Length (IN): 20.89 Inch
Compressed Length (IN): 13.29 Inch
Upper Mounting Style: Cross Pin
Lower Mounting Style: Eyelet
Body Color: Yellow
Quantity: Single
Rod Diameter (IN): 1/2 Inch
Valving Type: Self-Adjusting Deflective Disc Valving
Rod Material: Steel
Body Material: Steel
With Reservoir: No
Includes Dust Shield: No
Includes Hardware: No
Includes Boot: Yes
Estimated Install Time (Hours): 0.5

Features

  • Increased Power Reserves And Service Life, Even When Pulling Transporters And Trailers Or During Frequent Journeys With Loads
  • Optimum Addition And Enhanced Lane Change Stability In Both Day To Day And Extreme Solutions
  • Marked Improvement In Safety And Performance Without Additional Spring Changes
  • Bilstein Gas Pressure Technology
  • Bilstein Monotube/Upside Down Technology
  • Road And Track Tested By Bilstein For Fine Tuning
  • Limited Lifetime Warranty
Specifications of Bilstein 4600 Series Shock Absorber - 24-024815
Adjustable Valving  No
Body Color  Yellow
Body Material  Steel
Compressed Length (IN)  13.29 Inch
Estimated Install Time (Hours)  0.5
Extended Length (IN)  20.89 Inch
Includes Boot  Yes
Includes Dust Shield  No
Includes Hardware  No
Internal Design  Monotube
Lower Mounting Style  Eyelet
Quantity  Single
Rod Diameter (IN)  1/2 Inch
Rod Material  Steel
Type  Nitrogen Gas Charged
Upper Mounting Style  Cross Pin
Valving Type  Self-Adjusting Deflective Disc Valving
With Coil Spring  No
With Reservoir  No

1996 Chevrolet Express 1500
1997 Chevrolet Express 1500
1998 Chevrolet Express 1500
1999 Chevrolet Express 1500
2000 Chevrolet Express 1500
2001 Chevrolet Express 1500
2002 Chevrolet Express 1500
2003 Chevrolet Express 1500
2004 Chevrolet Express 1500
2005 Chevrolet Express 1500
2006 Chevrolet Express 1500
2007 Chevrolet Express 1500
2008 Chevrolet Express 1500
2009 Chevrolet Express 1500
2010 Chevrolet Express 1500
2011 Chevrolet Express 1500
2012 Chevrolet Express 1500
2013 Chevrolet Express 1500
2014 Chevrolet Express 1500

1996 Chevrolet Express 2500
1997 Chevrolet Express 2500
1998 Chevrolet Express 2500
1999 Chevrolet Express 2500
2000 Chevrolet Express 2500
2001 Chevrolet Express 2500
2002 Chevrolet Express 2500
2003 Chevrolet Express 2500
2004 Chevrolet Express 2500
2005 Chevrolet Express 2500
2006 Chevrolet Express 2500
2007 Chevrolet Express 2500
2008 Chevrolet Express 2500
2009 Chevrolet Express 2500
2010 Chevrolet Express 2500
2011 Chevrolet Express 2500
2012 Chevrolet Express 2500
2013 Chevrolet Express 2500
2014 Chevrolet Express 2500
2015 Chevrolet Express 2500

1996 GMC G3500

1996 GMC Savana 1500
1997 GMC Savana 1500
1998 GMC Savana 1500
1999 GMC Savana 1500
2000 GMC Savana 1500
2001 GMC Savana 1500
2002 GMC Savana 1500
2003 GMC Savana 1500
2004 GMC Savana 1500
2005 GMC Savana 1500
2006 GMC Savana 1500
2007 GMC Savana 1500
2008 GMC Savana 1500
2009 GMC Savana 1500
2010 GMC Savana 1500
2011 GMC Savana 1500
2012 GMC Savana 1500
2013 GMC Savana 1500
2014 GMC Savana 1500

1996 GMC Savana 2500
1997 GMC Savana 2500
1998 GMC Savana 2500
1999 GMC Savana 2500
2000 GMC Savana 2500
2001 GMC Savana 2500

2003 GMC Savana 2500
2004 GMC Savana 2500
2005 GMC Savana 2500
2006 GMC Savana 2500
2007 GMC Savana 2500
2008 GMC Savana 2500
2009 GMC Savana 2500
2010 GMC Savana 2500
2011 GMC Savana 2500
2012 GMC Savana 2500
2013 GMC Savana 2500
2014 GMC Savana 2500
2015 GMC Savana 2500

Please login or register to ask, or continue as a Guest

Captcha
Click to refresh

No questions found. Be the first?


Reviews for Bilstein 4600 Series Shock Absorber - 24-024815(0)

There are no reviews for this product.

Write a review
Note: HTML is not translated!
