B&M Automatic Transmission Fluid Cooler - 70298
Color
Black
Condition
New
Construction
Tube And Fin
Core Depth (IN)
1-1/2 Inch
Core Height (IN)
6-1/2 Inch
Core Width (IN)
10-1/4 Inch
Fan Amp Draw
6 Amp
Fan CFM Rating
350 CFM
Fan Control
175 Degree Thermostatic Switch
Fan Diameter
7 Inch
Finish
Painted
Share this page

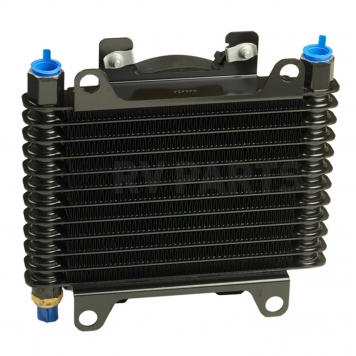

B&M Fluid Cooler
Fluid Cooler; Hi-Tek; For Automatic Transmission Fluid; 10 Inch Width x 7-1/2 Inch Height x 4 Inch Depth; 1/2 Inch NPT; With 1/2 Inch NPT Fittings/7 Inch Diameter Fan/Thermal Switch/Mounting Hardware
MPN: 70298
The newest addition to B&M's line of Super Cooler fluid coolers is the Hi-Tek cooling system. Fitted with a high quality 12 Volt electric fan and built-in mounting brackets, these coolers handle tough cooling jobs. They include a thermal switch to activate the fan when the fluid temperature reaches 175 Degree Fahrenheit. Can be used for racing, RV and street performance vehicles. Suitable for all fluid cooling needs including: automatic transmission fluid, engine oil, differential fluid, power steering and turbocharger oil in circle track, road racing, off-road, tractor pulling and monster truck applications.
Condition: New
Recommended Use: Automatic Transmission
Construction: Tube And Fin
Overall Height (IN): 7-1/2 Inch
Overall Width (IN): 10 Inch
Overall Depth (IN): 4 Inch
Number Of Cooling Rows: 10
Core Height (IN): 6-1/2 Inch
Core Width (IN): 10-1/4 Inch
Core Depth (IN): 1-1/2 Inch
Inlet Attachment: Female Threads
Inlet Size: 1/2 Inch NPT
Outlet Attachment: Female Threads
Outlet Size: 1/2 Inch NPT
Finish: Painted
Color: Black
Material: Aluminum
With Fan: Yes
Fan Control: 175 Degree Thermostatic Switch
Fan CFM Rating: 350 CFM
Fan Diameter: 7 Inch
Fan Amp Draw: 6 Amp
With Mounting Hardware: No
Features
- Fin And Plate Cooler Construction
- Includes 12 Volt High Flow Fan
- Pressure Tested To 200 PSI
- Units Include 1/2 NPT Fittings And Thermal Switch
- Easily Adaptable To Steel Braided Lines
- Limited 1 Year Warranty
| Specifications of B&M Automatic Transmission Fluid Cooler - 70298 | |
| Color | Black |
| Condition | New |
| Construction | Tube And Fin |
| Core Depth (IN) | 1-1/2 Inch |
| Core Height (IN) | 6-1/2 Inch |
| Core Width (IN) | 10-1/4 Inch |
| Fan Amp Draw | 6 Amp |
| Fan CFM Rating | 350 CFM |
| Fan Control | 175 Degree Thermostatic Switch |
| Fan Diameter | 7 Inch |
| Finish | Painted |
| Inlet Attachment | Female Threads |
| Inlet Size | 1/2 Inch NPT |
| Material | Aluminum |
| Number Of Cooling Rows | 10 |
| Outlet Attachment | Female Threads |
| Outlet Size | 1/2 Inch NPT |
| Overall Depth (IN) | 4 Inch |
| Overall Height (IN) | 7-1/2 Inch |
| Overall Width (IN) | 10 Inch |
| Recommended Use | Automatic Transmission |
| With Fan | Yes |
| With Mounting Hardware | No |
