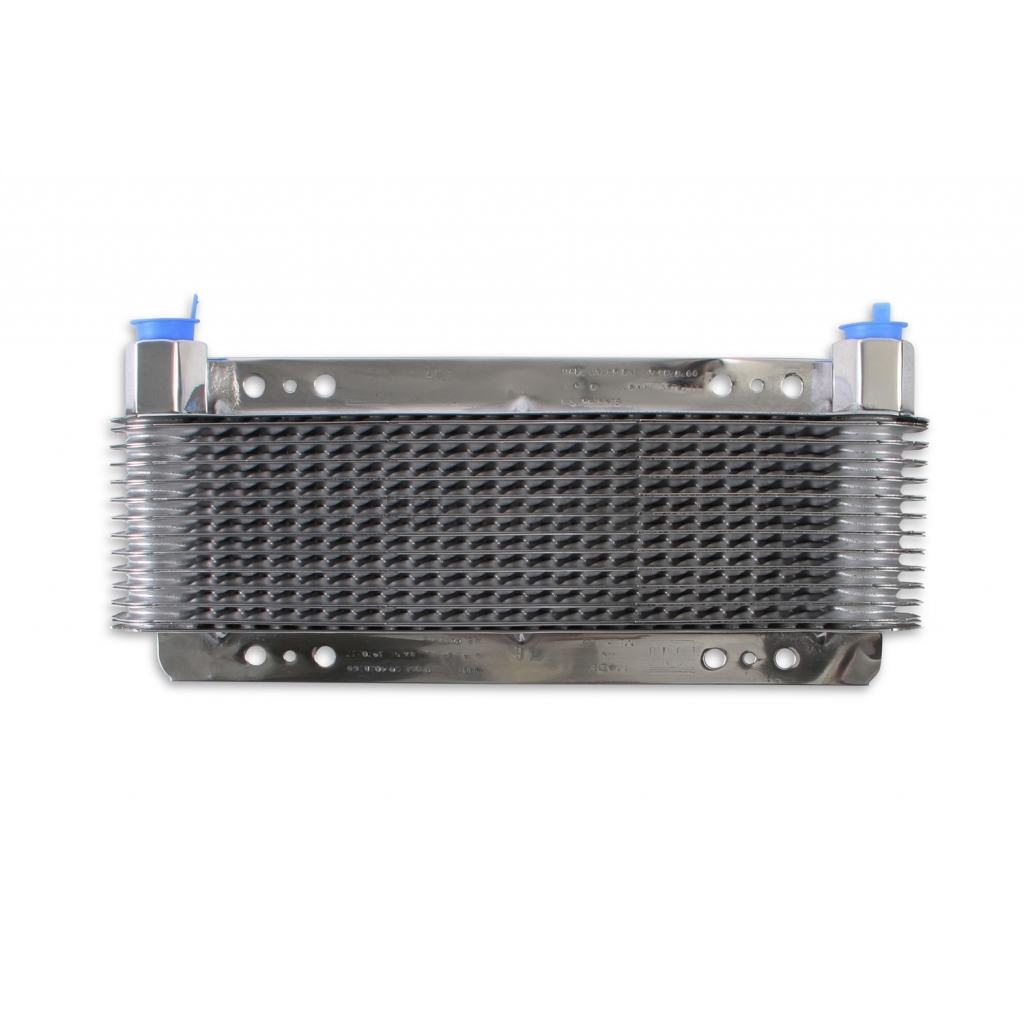

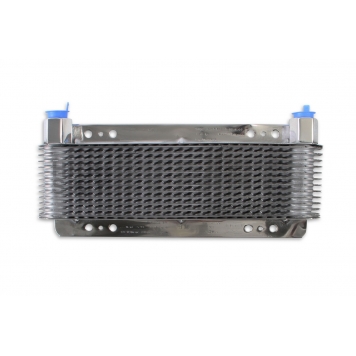

B&M Automatic Transmission Fluid Cooler - 70265
Color
Silver
Condition
New
Construction
Stacked Plate
Core Depth (IN)
1-1/2 Inch
Core Height (IN)
2-3/4 Inch
Core Width (IN)
11 Inch
Fan Amp Draw
No Fan
Fan CFM Rating
No Fan
Fan Control
No Fan
Fan Diameter
No Fan
Finish
Polished
Share this page
B&M Fluid Cooler
Fluid Cooler; Super Cooler; For Automatic Transmission Fluid; 11 Inch Width x 4-1/2 Inch Height x 1/2 Inch Depth; 1/2 Inch NPT; With Supercooler
MPN: 70265
B&M Super Coolers are 100 Percent aluminum construction and use stamped plates sandwiched together to create one of the most efficient oil cooling devices available. Not only does this unique design provide for maximized cooling through more efficient heat dissipation but it also provides a much sturdier cooler which is practically impervious to flying rocks or other debris. Suitable for all fluid cooling needs including: automatic transmission fluid, engine oil, differential fluid, power steering and turbocharger oil in circle track, road racing, off-road, tractor pulling and monster truck applications. The polished aluminum finish looks great on street rods and street machines.
Condition: New
Recommended Use: Automatic Transmission
Construction: Stacked Plate
Overall Height (IN): 4-1/2 Inch
Overall Width (IN): 11-1/4 Inch
Overall Depth (IN): 1-1/2 Inch
Number Of Cooling Rows: 12
Core Height (IN): 2-3/4 Inch
Core Width (IN): 11 Inch
Core Depth (IN): 1-1/2 Inch
Inlet Attachment: Female Threads
Inlet Size: 1/2 Inch NPT
Outlet Attachment: Female Threads
Outlet Size: 1/2 Inch NPT
Finish: Polished
Color: Silver
Material: Aluminum
With Fan: No
Fan Control: No Fan
Fan CFM Rating: No Fan
Fan Diameter: No Fan
Fan Amp Draw: No Fan
With Mounting Hardware: No
Features
- Stacked Plate Design Provides Better Cooling Than Ordinary Fin And Tube Coolers
- Resistant To Damage From Flying Rocks Or Other Debris
- Pressure Tested To 200 PSI
- Easily Adaptable To Steel Braided Lines
- Suitable For All Fluid Cooling Needs Including: Automatic Transmission Fluid, Engine Oil, Differential Fluid, Power Steering And Turbocharger Oil
- Accepts 1/2 Inch NPT Male Fittings
- Compact But Efficient Design
- This Small Polished Supercooler Has A BTU Rating Of 7,500 BTU's
- Limited 1 Year Warranty
| Specifications of B&M Automatic Transmission Fluid Cooler - 70265 | |
| Color | Silver |
| Condition | New |
| Construction | Stacked Plate |
| Core Depth (IN) | 1-1/2 Inch |
| Core Height (IN) | 2-3/4 Inch |
| Core Width (IN) | 11 Inch |
| Fan Amp Draw | No Fan |
| Fan CFM Rating | No Fan |
| Fan Control | No Fan |
| Fan Diameter | No Fan |
| Finish | Polished |
| Inlet Attachment | Female Threads |
| Inlet Size | 1/2 Inch NPT |
| Material | Aluminum |
| Number Of Cooling Rows | 12 |
| Outlet Attachment | Female Threads |
| Outlet Size | 1/2 Inch NPT |
| Overall Depth (IN) | 1-1/2 Inch |
| Overall Height (IN) | 4-1/2 Inch |
| Overall Width (IN) | 11-1/4 Inch |
| Recommended Use | Automatic Transmission |
| With Fan | No |
| With Mounting Hardware | No |
