Aeromotive Fuel System Fuel Pump Electric - 18688

Brand: Aeromotive Fuel Aeromotive Fuel
0 reviews
  • Have a product question? Ask us
  • Part Number: 18688
  • Part Location: U.S.
  • Availability: *Special Order
Retail: $826.34
Price: $786.99
You Save: $39.35
Estimated Install Time (Hours)
 2
Free Flow Rate
 340 Liter Per Hour At 43 Pounds Per Square Inch
Fuel Type
 Diesel/ E85/ Gasoline
Inlet Attachment
 O-Ring Boss
Inlet Quantity
 1
Inlet Size
 3/8 Inch (-6 AN)
Maximum Pressure (PSI)
 95 Pounds Per Square Inch
Mounting Style
 In-Tank
Outlet Attachment
 O-Ring Boss
Outlet Quantity
 1
Outlet Size
 3/8 Inch (-6 AN)
Share this page

Fuel Pump Electric; Phantom Stealth; Supports Up To 700 Horsepower EFI Supercharged/ 1000 Horsepower Carbureted Supercharged; 6 AN O-Ring Inlet/ Outlet/ Vent Ports; With In-Tank Fuel Pump/ Hanger Assembly/ Internal Baffle

MPN: 18688

Aeromotive’s Phantom Fuel System gives you the option to put a high performance fuel pump inside virtually any fuel tank, including your factory tank. Simply cut a hole in you tank. Measure the depth. Cut you pump hanger bracket to length and your baffle / basket foam. Insert the baffle. Install the retainer ring and gasket. Bolt your pump and hanger down. That’s it. Now you have a fuel pump inside your factory tank capable of supporting big Horsepower EFI or Carbureted and its whisper quiet. No more welding sumps or using up trunk space with fuel cells. No more hot fuel handling issues like vapor-lock and no more fuel slosh. The Phantom system’s internal baffle / basket controls fuel slosh and keeps the fuel pump submerged in fuel, even at low fuel levels and in aggressive driving. The best part about this whole system. Its completely universal. This system will fit virtually any tank from 5.5 Inch deep to 11 Inch deep, plastic, steel, aluminum, corrugated or smooth. One system that gives you everything you need to fuel your ride. Its serious performance you will never know is there!

Mounting Style: In-Tank
Fuel Type: Diesel/ E85/ Gasoline
Free Flow Rate: 340 Liter Per Hour At 43 Pounds Per Square Inch
Maximum Pressure (PSI): 95 Pounds Per Square Inch
Inlet Size: 3/8 Inch (-6 AN)
Inlet Attachment: O-Ring Boss
Outlet Size: 3/8 Inch (-6 AN)
Outlet Attachment: O-Ring Boss
Inlet Quantity: 1
Outlet Quantity: 1
With Sending Unit: No
With Mounting Hanger: Yes
Estimated Install Time (Hours): 2

Features

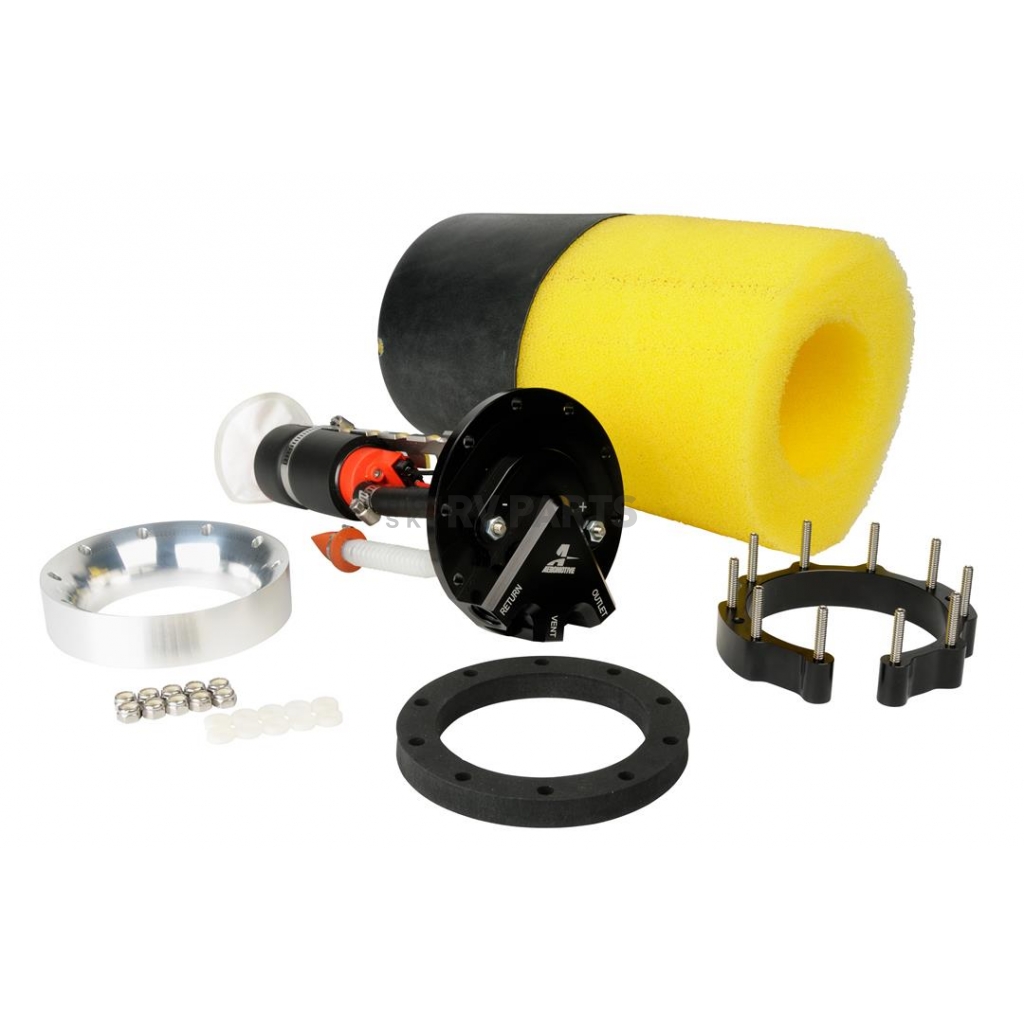

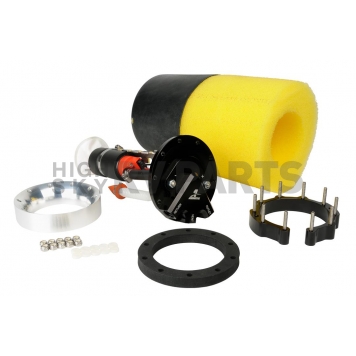

  • 340 Stealth Fuel Pump
  • Fuel Resistant Baffle / Basket (Includes: Foam And Bladder)
  • Universal High Flow Pre Pump Filter
  • Modular Design Can Be Cut To Height To Fit Almost Any Fuel Tank
  • Turbine Pump Mechanism Increases Durability
  • Black Anodized Hanger Assembly
  • Limited 1 Year Warranty
Specifications of Aeromotive Fuel System Fuel Pump Electric - 18688
Estimated Install Time (Hours)  2
Free Flow Rate  340 Liter Per Hour At 43 Pounds Per Square Inch
Fuel Type  Diesel/ E85/ Gasoline
Inlet Attachment  O-Ring Boss
Inlet Quantity  1
Inlet Size  3/8 Inch (-6 AN)
Maximum Pressure (PSI)  95 Pounds Per Square Inch
Mounting Style  In-Tank
Outlet Attachment  O-Ring Boss
Outlet Quantity  1
Outlet Size  3/8 Inch (-6 AN)
With Mounting Hanger  Yes
With Sending Unit  No
