Aeromotive Fuel System Fuel Pressure Regulator - 13208
Color
Black Top And Red Base
Finish
Anodized
Fuel Type
Gasoline/ Alcohol
Gauge Port
Yes
Includes Fittings
Yes
Includes Mounting Brackets
Yes
Inlet Attachment
Hose Barb
Inlet Quantity
Single
Inlet Size
3/4 Inch (-12 AN)
Material
Aluminum
Outlet Attachment
Hose Barb
Share this page

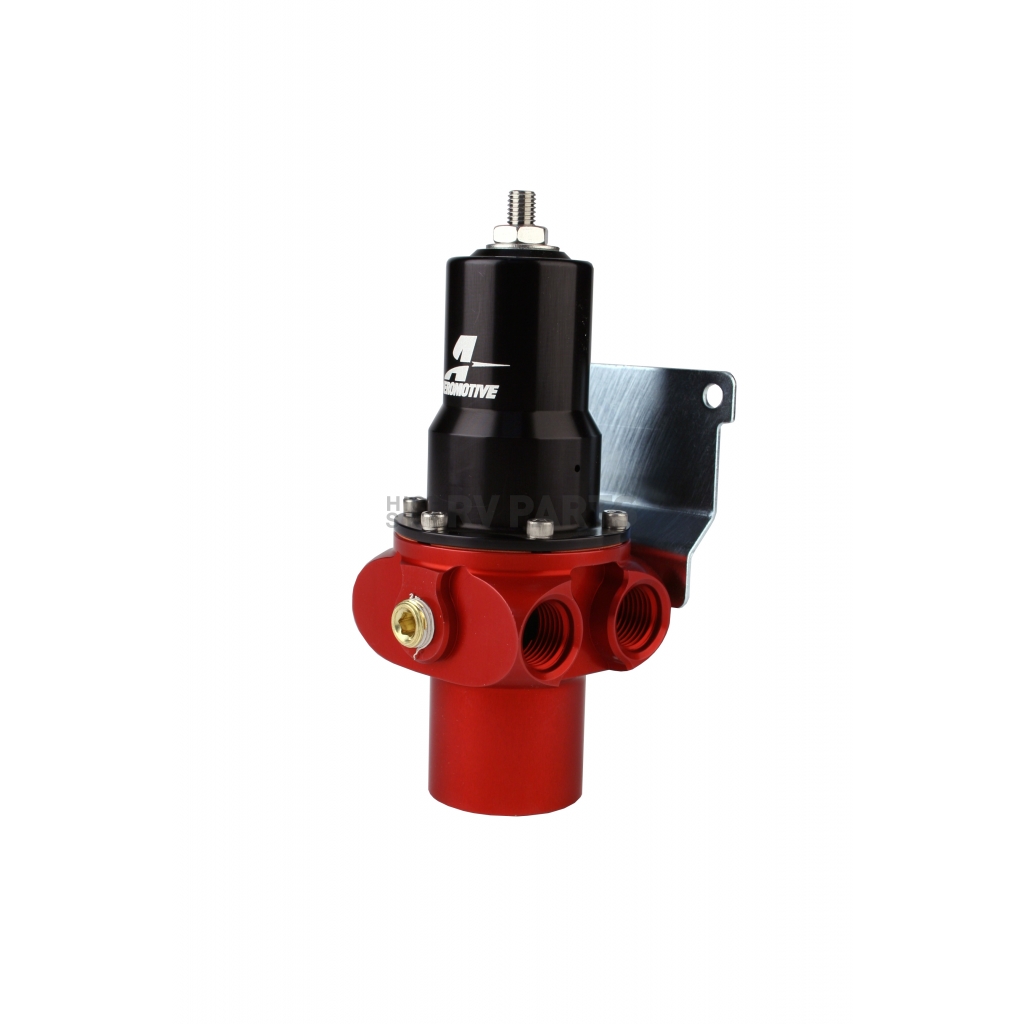

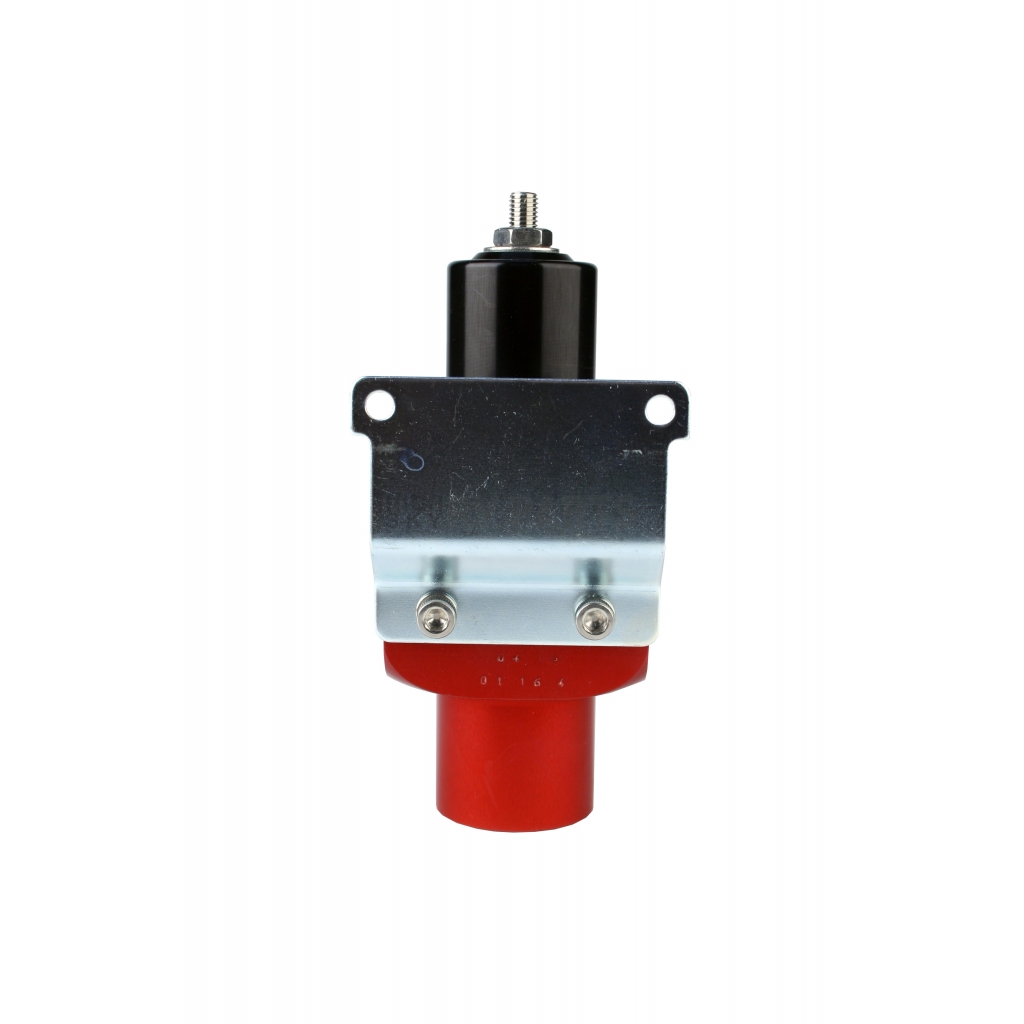

Aeromotive Fuel System Fuel Pressure Regulator
Fuel Pressure Regulator; 4 PSI To 8 PSI
MPN: 13208
Track tested by record setting, professional racers, the Aeromotive pro stock regulators were designed to be used with the Aeromotive A2000 fuel pump in either single or dual carburetor applications. Utilizing a new stainless steel valve, aluminum bronze seat, and an innovative opposed spring design, the pro stock regulators are engineered to be the quickest responding, most reliable, highest flowing regulators on the market.
Fuel Type: Gasoline/ Alcohol
Pressure Range (PSI): 4 To 8 Pounds Per Square Inch
Regulator Location: Inline
Regulator Type: Return
Gauge Port: Yes
Inlet Attachment: Hose Barb
Inlet Quantity: Single
Inlet Size: 3/4 Inch (-12 AN)
Outlet Attachment: Hose Barb
Outlet Quantity: Quad
Outlet Size: 3/8 Inch (-6 AN)
Includes Fittings: Yes
Includes Mounting Brackets: Yes
Finish: Anodized
Color: Black Top And Red Base
Material: Aluminum
Features
- Adjustable Base Pressure From 4 To 8 PSI

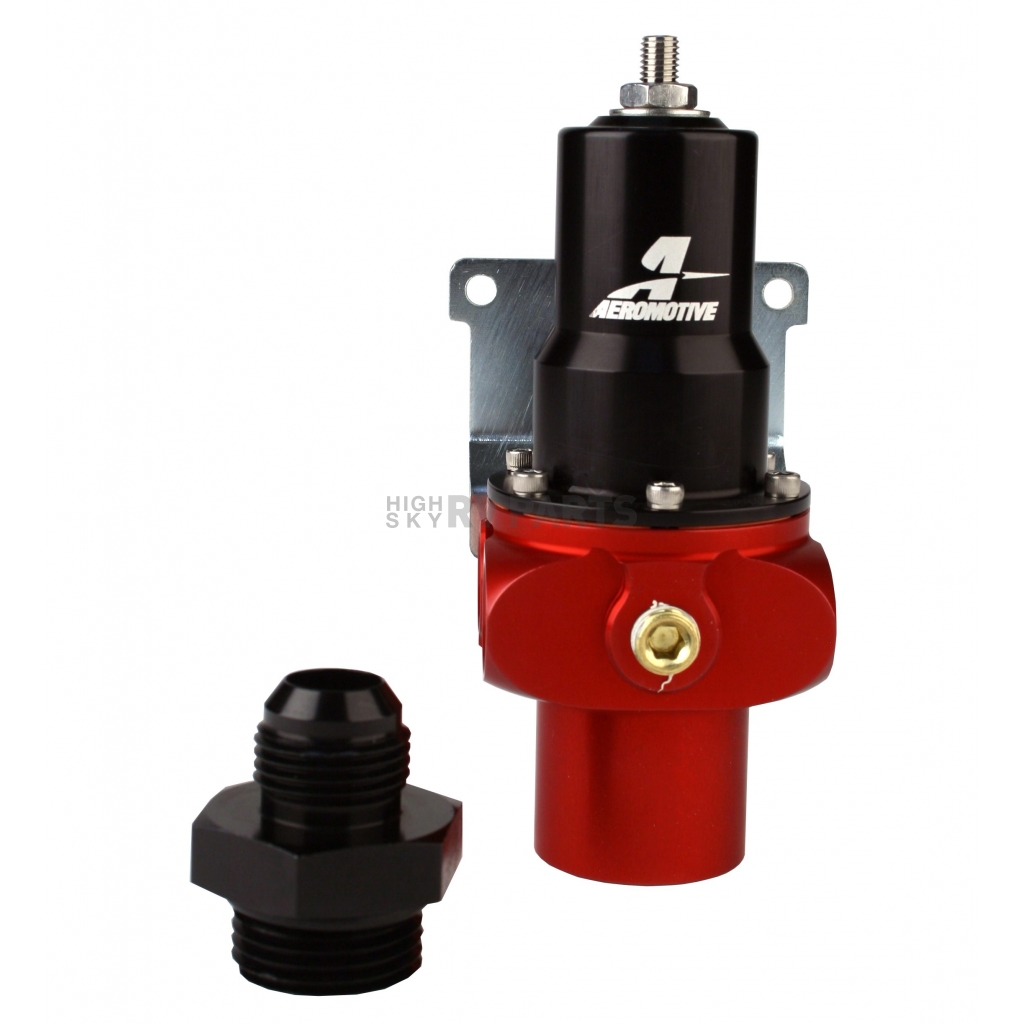

- O-Ring Boss-12 Inlet Port. (Includes AN-12 To AN-10 Male Flare Reducer Fitting)
- 1/8 Inch NPT Gauge Port
- Includes Mounting Bracket
- Limited 1 Year Warranty
Specifications of Aeromotive Fuel System Fuel Pressure Regulator - 13208 | |
Color | Black Top And Red Base |
Finish | Anodized |
Fuel Type | Gasoline/ Alcohol |
Gauge Port | Yes |
Includes Fittings | Yes |
Includes Mounting Brackets | Yes |
Inlet Attachment | Hose Barb |
Inlet Quantity | Single |
Inlet Size | 3/4 Inch (-12 AN) |
Material | Aluminum |
Outlet Attachment | Hose Barb |
Outlet Quantity | Quad |
Outlet Size | 3/8 Inch (-6 AN) |
Pressure Range (PSI) | 4 To 8 Pounds Per Square Inch |
Regulator Location | Inline |
Regulator Type | Return |
