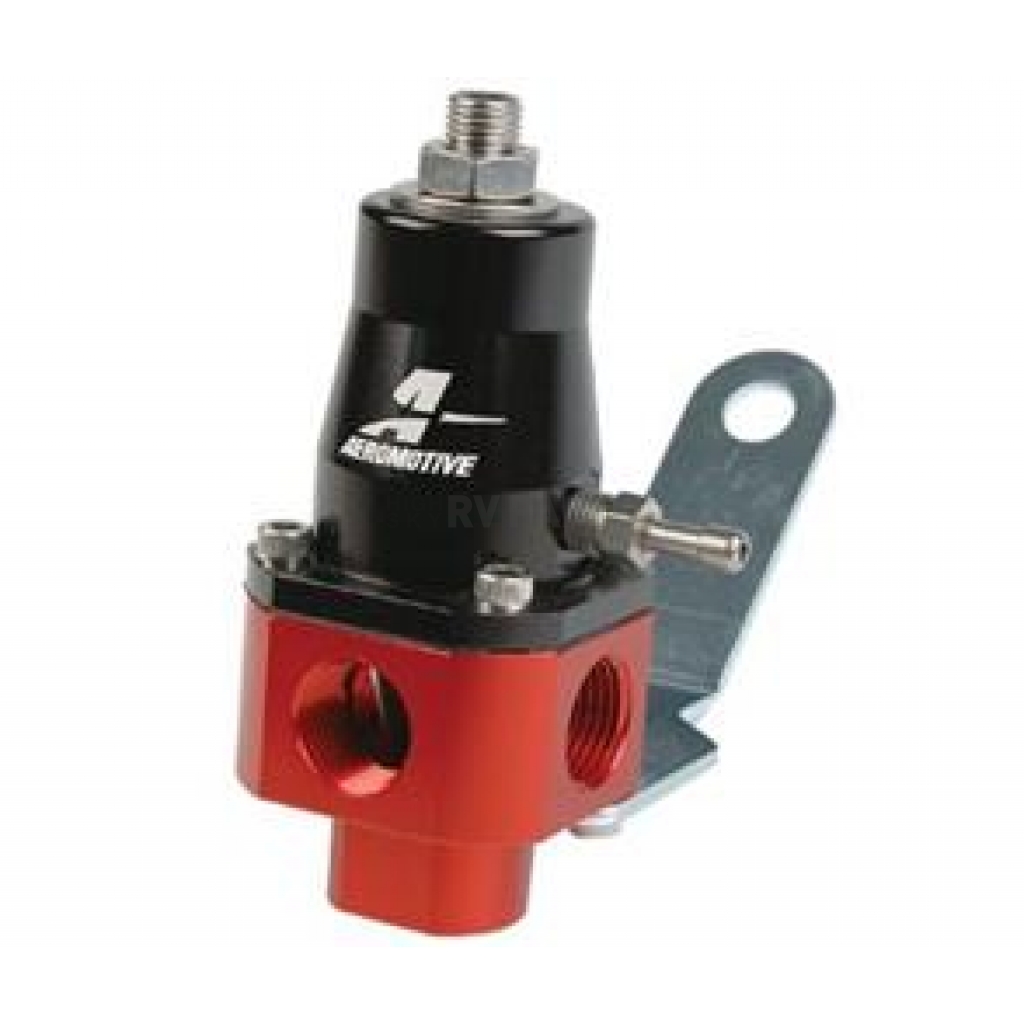

Aeromotive Fuel System Fuel Pressure Regulator - 13301

Brand: Aeromotive Fuel Aeromotive Fuel
0 reviews
  • Have a product question? Ask us
  • Part Number: 13301
  • Part Location: U.S.
  • Availability: 9 In Stock
  • Delivery: Ships Out in 1 - 2 Business Days
  • If purchased before 12:00 EDT - estimated delivery by July 09
Retail: $237.29
Price: $225.99
You Save: $11.30
Color
Black Top And Red Base
Finish
Anodized
Fuel Type
Gasoline/ Alcohol
Gauge Port
Yes
Includes Fittings
Yes
Includes Mounting Brackets
Yes
Inlet Attachment
Female O-Ring
Inlet Quantity
1
Inlet Size
3/8 Inch (-6 AN)
Material
Aluminum
Outlet Attachment
Female O-Ring
Share this page

Aeromotive Fuel System Fuel Pressure Regulator

Fuel Pressure Regulator; 3-20 PSI With Low Pressure Spring/ 20-60 PSI With High Pressure Spring; 3/8 Inch NPT Inlet/ Outlet; Gasoline/ Alcohol; Anodized; Black Top/ Red Bottom; Aluminum; With Mounting Bracket

MPN: 13301

A dual purpose, universal regulator for electronic fuel injection or carbureted and street or strip applications. Base pressure adjustable from 3 to 20 PSI with standard spring, (installed) or from 20 to 60 PSI with high pressure spring (included). Offers the full flow and rock steady fuel pressure that only a dynamic, Aeromotive bypass regulator provides.
Fuel Type: Gasoline/ Alcohol
Pressure Range (PSI): 3 To 20 Pounds Per Square Inch Low/ 20 To 60 Pounds Per Square Inch High Pressure Spring
Regulator Location: Inline
Regulator Type: Return
Gauge Port: Yes
Inlet Attachment: Female O-Ring
Inlet Quantity: 1
Inlet Size: 3/8 Inch (-6 AN)
Outlet Attachment: Female O-Ring
Outlet Quantity: 3
Outlet Size: 3/8 Inch (-6 AN)
Shape: Square
Includes Fittings: Yes
Includes Mounting Brackets: Yes
Return Port Size: 3/8 Inch NPT
Finish: Anodized
Color: Black Top And Red Base
Material: Aluminum

Features

  • Capable Of Regulating Any Fuel Pump Between 100 And 250 Gallons Per Hour
  • Bypass Design Provides The Ultimate, Dynamic Fuel Pressure Control
  • Fuel Pressure Rises On A 1:1 Ratio When Referencing Boost
  • All Ports Are 3/8 Inch NPT, With One Inlet And Three Outlets On The Main Body And One Return Port On The Bottom
  • Limited 1 Year Warranty
Specifications of Aeromotive Fuel System Fuel Pressure Regulator - 13301
Color Black Top And Red Base
Finish Anodized
Fuel Type Gasoline/ Alcohol
Gauge Port Yes
Includes Fittings Yes
Includes Mounting Brackets Yes
Inlet Attachment Female O-Ring
Inlet Quantity 1
Inlet Size 3/8 Inch (-6 AN)
Material Aluminum
Outlet Attachment Female O-Ring
Outlet Quantity 3
Outlet Size 3/8 Inch (-6 AN)
Pressure Range (PSI) 3 To 20 Pounds Per Square Inch Low/ 20 To 60 Pounds Per Square Inch High Pressure Spring
Regulator Location Inline
Regulator Type Return
Return Port Size 3/8 Inch NPT
Shape Square
