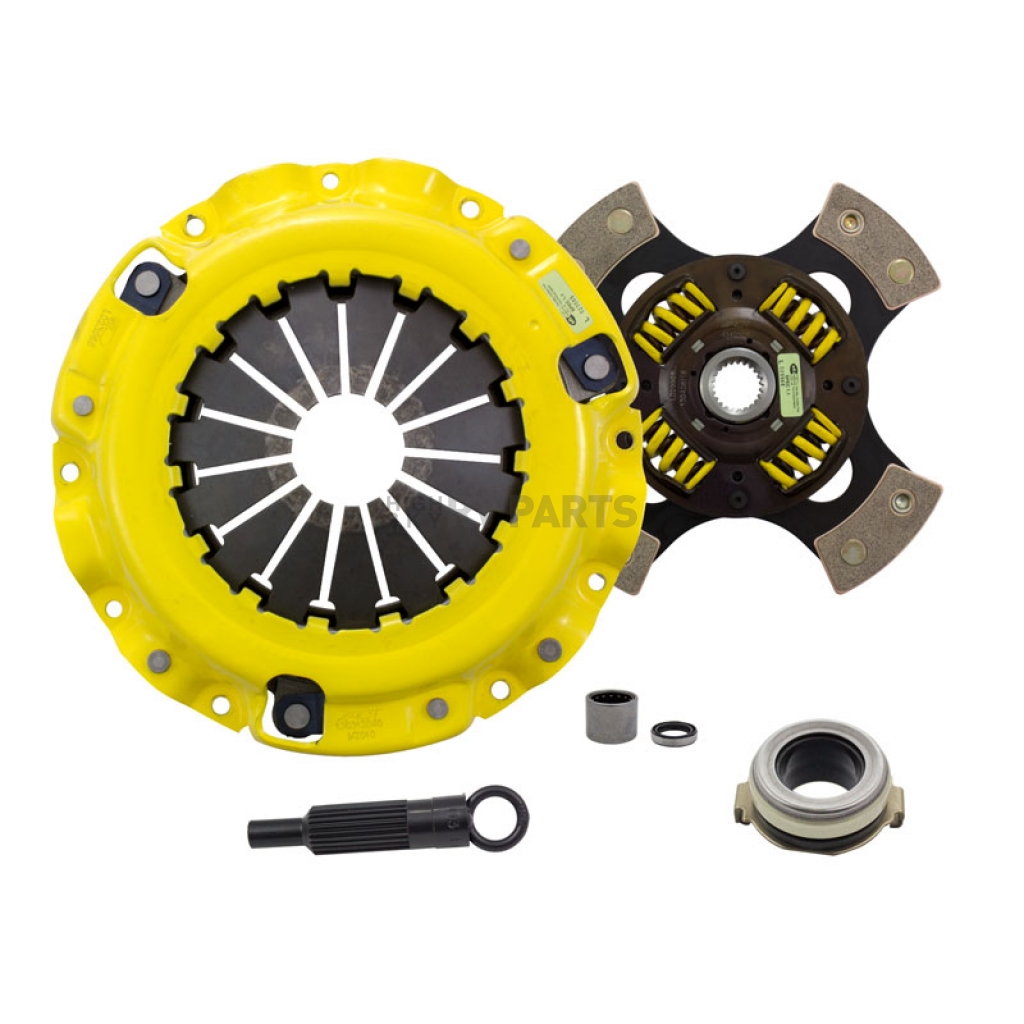

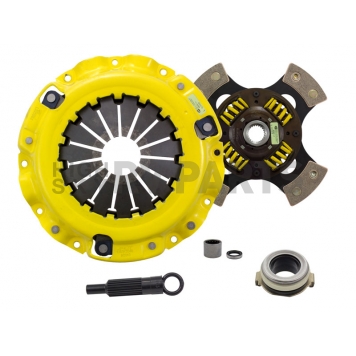

Advanced Clutch Set Heavy Duty Medium Sprung 4 Paddle - ZM8-HDG4
Disc Diameter
9.45 Inch
Disc Friction Face Design
4 Paddle
Disc Friction Material
Ceramic
Disc Hub Design
Medium Sprung
Flywheel Material
No Flywheel
Flywheel Tooth Count
No Flywheel
Flywheel Weight
No Flywheel
Includes Alignment Tool
Yes
Includes Pilot Bearing
Yes
Includes Throwout Bearing
Yes
Input Shaft Size
1 Inch X 23 Spline
Share this page
Clutch Set; Heavy Duty/ Race; 9.45 Inch Clutch Diameter; 1 Inch x 23 Spline Input Shaft; Diaphragm; 420 Foot Pound Torque Capacity; Steel Pressure Plate; Single Disc/ Ceramic Friction Material; 4 Paddle Design/ Sprung Hub; With Flywheel/ Throwout Bearing/ Pilot Bearing/ Alignment Tool
MPN: ZM8-HDG4
ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.Pressure Plate Design: Heavy Duty
Input Shaft Size: 1 Inch X 23 Spline
Number Of Friction Discs: 1 Disc
Disc Friction Material: Ceramic
Disc Diameter: 9.45 Inch
Disc Hub Design: Medium Sprung
Pressure Plate Material: Steel
Flywheel Weight: No Flywheel
Flywheel Tooth Count: No Flywheel
Flywheel Material: No Flywheel
Includes Throwout Bearing: Yes
Includes Pilot Bearing: Yes
Disc Friction Face Design: 4 Paddle
Pressure Plate Clamp Load: 13.5 Pound
Pressure Plate Centrifugal Assist: No Centrifugal Assist
Torque Holding Capacity: 420 Feet/Pound
Includes Alignment Tool: Yes
Features
- Light To Moderate Pedal Effort, Aggressive Engagement, OE To Mild Gear Rattle
- Moderate Friction Life, Extended By ACT's Exclusive Diaphragm Design
- Carefully Engineered, Precisely Assembled, Accurately Balanced, Uses Select Ceramic Friction Materials For High Heat Tolerance And Maximum Performance
- 100 Percent Clamp Load Tested And Dynamically Computer Balanced For Smooth High RPM Reliability
- Recommended For High Horsepower Street Or Race Use
- Limited 1 Year Warranty
| Specifications of Advanced Clutch Set Heavy Duty Medium Sprung 4 Paddle - ZM8-HDG4 | |
| Disc Diameter | 9.45 Inch |
| Disc Friction Face Design | 4 Paddle |
| Disc Friction Material | Ceramic |
| Disc Hub Design | Medium Sprung |
| Flywheel Material | No Flywheel |
| Flywheel Tooth Count | No Flywheel |
| Flywheel Weight | No Flywheel |
| Includes Alignment Tool | Yes |
| Includes Pilot Bearing | Yes |
| Includes Throwout Bearing | Yes |
| Input Shaft Size | 1 Inch X 23 Spline |
| Number Of Friction Discs | 1 Disc |
| Pressure Plate Centrifugal Assist | No Centrifugal Assist |
| Pressure Plate Clamp Load | 13.5 Pound |
| Pressure Plate Design | Heavy Duty |
| Pressure Plate Material | Steel |
| Torque Holding Capacity | 420 Feet/Pound |
2004 Mazda RX-8
2005 Mazda RX-8
2006 Mazda RX-8
2007 Mazda RX-8
2008 Mazda RX-8
2009 Mazda RX-8
2010 Mazda RX-8
2011 Mazda RX-8
2005 Mazda RX-8
2006 Mazda RX-8
2007 Mazda RX-8
2008 Mazda RX-8
2009 Mazda RX-8
2010 Mazda RX-8
2011 Mazda RX-8
