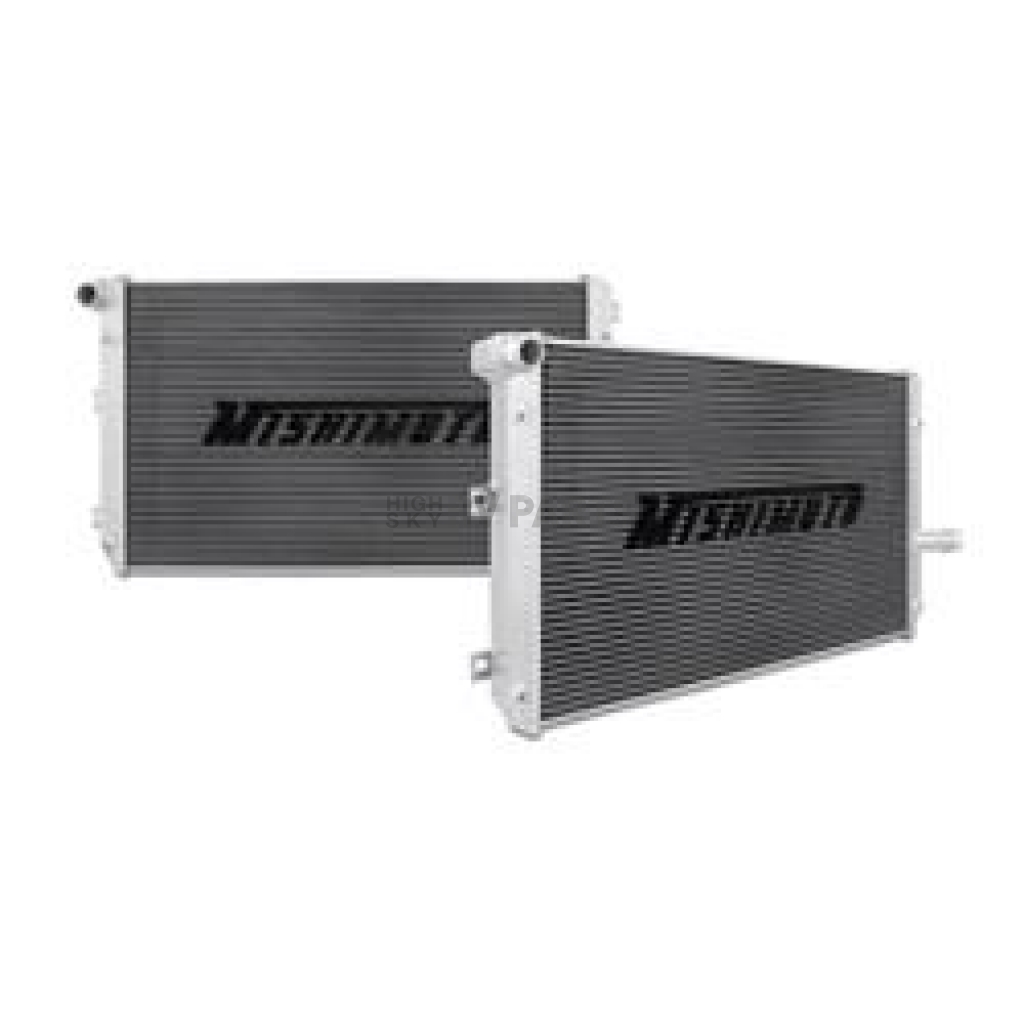

Mishimoto Radiator MMRADMAC06

Brand: Mishimoto
0 reviews
  • Have a product question? Ask us
  • Part Number: MMRAD-MAC-06
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by June 25
Retail: $382.19
Price: $363.99
You Save: $18.20
Color
Silver
Core Depth (IN)
1.57 Inch
Core Height (IN)
25.6 Inch
Core Length (IN)
15.67 Inch
Core Material
Aluminum
Core Rows
Two Tube
Flow Direction
Cross Flow
Includes Fittings
Yes
Includes Mounting Hardware
No
Inlet Hose Location
Top Left
Inlet Size (IN)
1.26 Inch
Share this page

Mishimoto Radiator

Radiator; 16.7 Inch Length x 31.61 Inch Height x 2.07 Inch Depth Overall Dimension; 15.67 Inch Length x 25.6 Inch Height x 1.57 Inch Depth Core Dimension; Dual Core Rows; Crossflow; Aluminum Core; 1.26 Inch Inlet x 1.26 Inch Outlet; Single; With Magnetic Drain Plug

MPN: MMRADMAC06

By replacing your current VW radiator with a Mishimoto performance aluminum radiator, you will notice a cooler more efficient running engine. All Mishimoto VW Golf performance aluminum radiators are dual pass, engineered to maximize cooling efficiency, protect your car from the overheating, and boost overall engine functions. With its lightweight dual core, 100 Percent brazed aluminum, and polished tank ends installing a direct OEM fit Mishimoto radiator is effortless, no cutting or modification is required. And, like all Mishimoto radiators, this aluminum radiator comes with our signature lifetime warranty.Mishimoto provides free replacement for accidental damages, basically if you are in an accident and your mishimoto part is damaged, they will replace it free of charge when you provide pictures and a police report.
Flow Direction: Cross Flow
Overall Length (IN): 16.7 Inch
Overall Height (IN): 31.61 Inch
Overall Depth (IN): 2.07 Inch
Core Rows: Two Tube
Core Length (IN): 15.67 Inch
Core Height (IN): 25.6 Inch
Core Depth (IN): 1.57 Inch
Core Material: Aluminum
Inlet Hose Location: Top Left
Inlet Size (IN): 1.26 Inch
Outlet Hose Location: Bottom Right
Outlet Size (IN): 1.26 Inch
Color: Silver
Tank Material: Aluminum
With Radiator Cap: No
With Transmission Cooler: No
With Engine Oil Cooler: No
Includes Fittings: Yes
Includes Mounting Hardware: No

Please refer the Technical Bulletins attached to the Product Manual tab

Features

  • Full Aluminum Construction Including Durable, Tig-welded End Tanks
  • Features A Two-row, Efficient Brazed Aluminum Core
  • Features Stock-style, Cnc-machined, Quick-disconnect Inlet And Outlet Connections Which Mate Perfectly With The Stock Hoses
  • Increased Fluid Capacity And Optimal Heat Dissipation For Use On The Street And Track
  • Free Replacement For Accidental Damages
  • Limited Lifetime Warranty
Specifications of Mishimoto Radiator MMRADMAC06
Color Silver
Core Depth (IN) 1.57 Inch
Core Height (IN) 25.6 Inch
Core Length (IN) 15.67 Inch
Core Material Aluminum
Core Rows Two Tube
Flow Direction Cross Flow
Includes Fittings Yes
Includes Mounting Hardware No
Inlet Hose Location Top Left
Inlet Size (IN) 1.26 Inch
Outlet Hose Location Bottom Right
Outlet Size (IN) 1.26 Inch
Overall Depth (IN) 2.07 Inch
Overall Height (IN) 31.61 Inch
Overall Length (IN) 16.7 Inch
Tank Material Aluminum
With Engine Oil Cooler No
With Radiator Cap No
With Transmission Cooler No

2006 Audi A3
2007 Audi A3
2008 Audi A3

2009 Audi TT Quattro

2007 Volkswagen Eos

2010 Volkswagen Golf
2011 Volkswagen Golf
2012 Volkswagen Golf
2013 Volkswagen Golf
2014 Volkswagen Golf

2012 Volkswagen Golf R
2013 Volkswagen Golf R

2006 Volkswagen GTI
2007 Volkswagen GTI
2008 Volkswagen GTI
2009 Volkswagen GTI

2006 Volkswagen Jetta
2007 Volkswagen Jetta

2009 Volkswagen Jetta
2010 Volkswagen Jetta
2011 Volkswagen Jetta
2012 Volkswagen Jetta
2013 Volkswagen Jetta
2014 Volkswagen Jetta
2015 Volkswagen Jetta

2006 Volkswagen Passat
2007 Volkswagen Passat
2008 Volkswagen Passat
