Advanced Clutch Twin Disc XT Street Kit - T2S-D03

Authorized Dealer
Brand: Advanced Clutch Advanced Clutch
0 reviews
  • Have a product question? Ask us
  • Part Number: T2S-D03
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 17
Retail: $2,335.19
Price: $2,223.99
You Save: $111.20
Disc Diameter
 10-1/2 Inch
Disc Friction Material
 Organic
Disc Hub Design
 Unsprung
Includes Alignment Tool
 Yes
Includes Pilot Bearing
 No
Includes Throwout Bearing
 Yes
Input Shaft Size
 1-1/8 Inch X 26 Spline
Number Of Friction Discs
 2 Disc
Pressure Plate Design
 Diaphragm
Pressure Plate Material
 Steel
Torque Holding Capacity
 970 Feet/Pound
Share this page

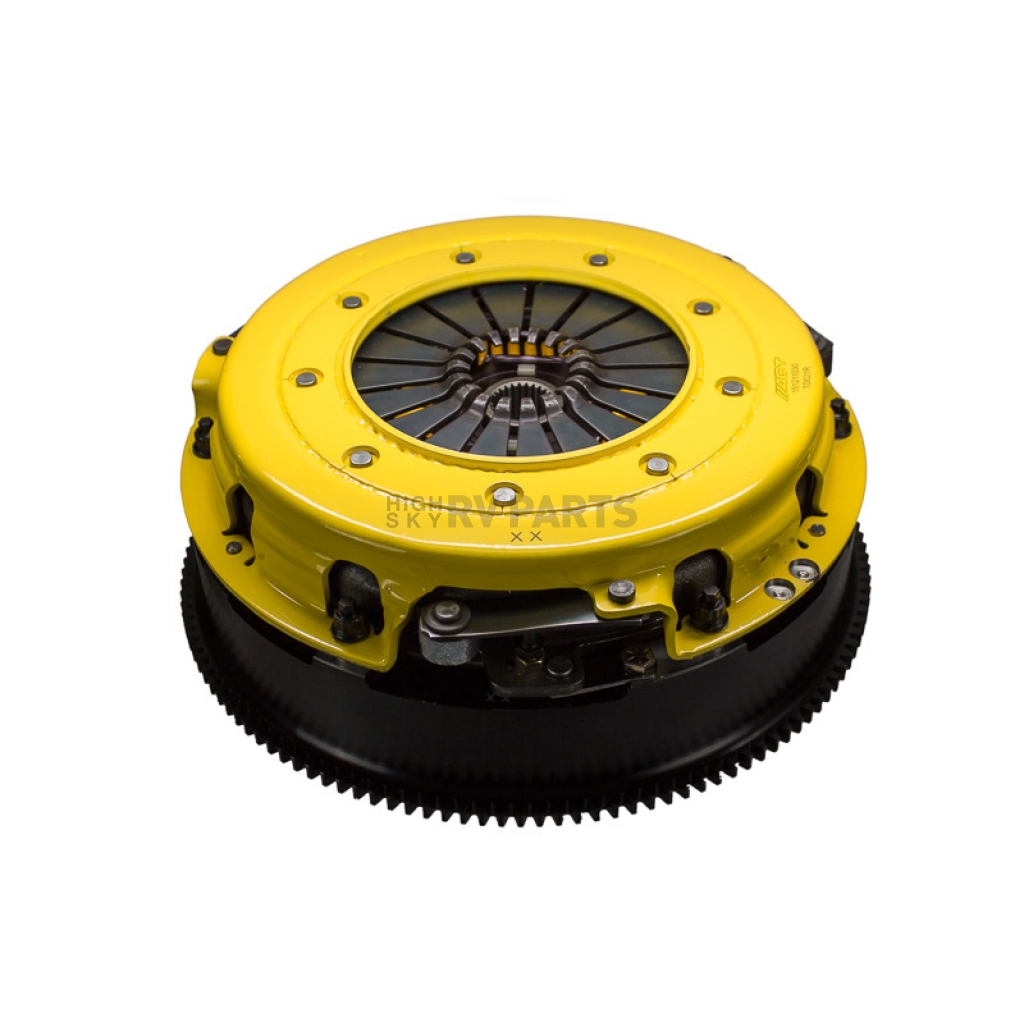

Clutch Set; Twin Street XT; 10-1/2 Inch Clutch Diameter; 1-1/8 Inch x 26 Spline Input Shaft; Diaphragm; 970 Foot Pound Torque Capacity; Steel Pressure Plate; Dual Disc/ Organic Friction Material; Solid Hub; With Throwout Bearing And Alignment Tool

MPN: T2S-D03

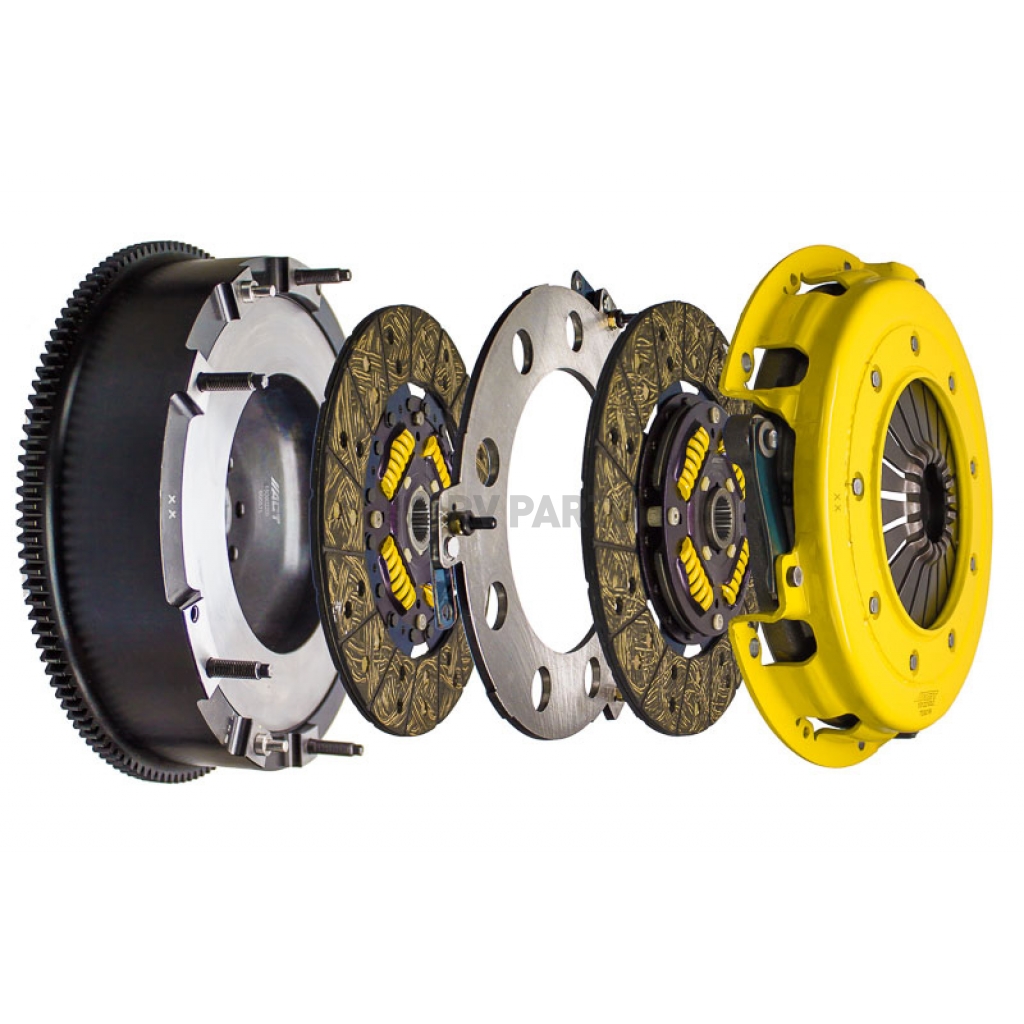

These kits use a proprietary Positive Lift Floater System design, which results in quiet operation with no floater rattle and no posts to wear. ACT twin disc kits undergo an exclusive four-stage, heat treating process on all diaphragms. The ACT twin disc features the ability to adjust for disc wear and provides equal disengagement for discs. The ACT Performance street rigid-hub discs feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. The chrome-moly hub is heat-treated for strength and durability. Rivet design and materials are carefully selected for maximum strength.

Pressure Plate Design: Diaphragm
Input Shaft Size: 1-1/8 Inch X 26 Spline
Number Of Friction Discs: 2 Disc
Disc Friction Material: Organic
Disc Diameter: 10-1/2 Inch
Disc Hub Design: Unsprung
Pressure Plate Material: Steel
Includes Throwout Bearing: Yes
Includes Pilot Bearing: No
Torque Holding Capacity: 970 Feet/Pound
Includes Alignment Tool: Yes

Features

  • Moderate To Heavy Pedal Effort, Smooth Engagement, OE To Moderate Gear Rattle
  • Disc Surfaces Doubled For Better Wear, Heat Capacity And Longer Life, Further Extended By ACT's Exclusive Diaphragm Design
  • Carefully Engineered, Precisely Assembled, Accurately Balanced, Uses Select Ceramic Friction Materials For High Heat Tolerance And Maximum Performance
  • 100 Percent Clamp Load Tested And Dynamically Computer Balanced For Smooth High RPM Reliability
  • Recommended For High Horsepower Street Or Race Use
  • Limited 1 Year Warranty
Specifications of Advanced Clutch Twin Disc XT Street Kit - T2S-D03
Disc Diameter  10-1/2 Inch
Disc Friction Material  Organic
Disc Hub Design  Unsprung
Includes Alignment Tool  Yes
Includes Pilot Bearing  No
Includes Throwout Bearing  Yes
Input Shaft Size  1-1/8 Inch X 26 Spline
Number Of Friction Discs  2 Disc
Pressure Plate Design  Diaphragm
Pressure Plate Material  Steel
Torque Holding Capacity  970 Feet/Pound

2008 Dodge Challenger
2009 Dodge Challenger
2010 Dodge Challenger
2011 Dodge Challenger
2012 Dodge Challenger
2013 Dodge Challenger
2014 Dodge Challenger
