Advanced Clutch Set Diaphragm Rigid Full Face - AR1-SPSD

Clutch Set; Street; 8.4 Inch Clutch Diameter; 1-1/32 Inch x 24 Spline Input Shaft; Diaphragm; 225 Foot Pound Torque Capacity; Steel Pressure Plate; Single Disc/ Organic Friction Material; Full Face Design/ Rigid Hub; With Flywheel/ Throwout Bearing/ Pilot Bearing/ Alignment Tool

MPN: AR1-SPSD

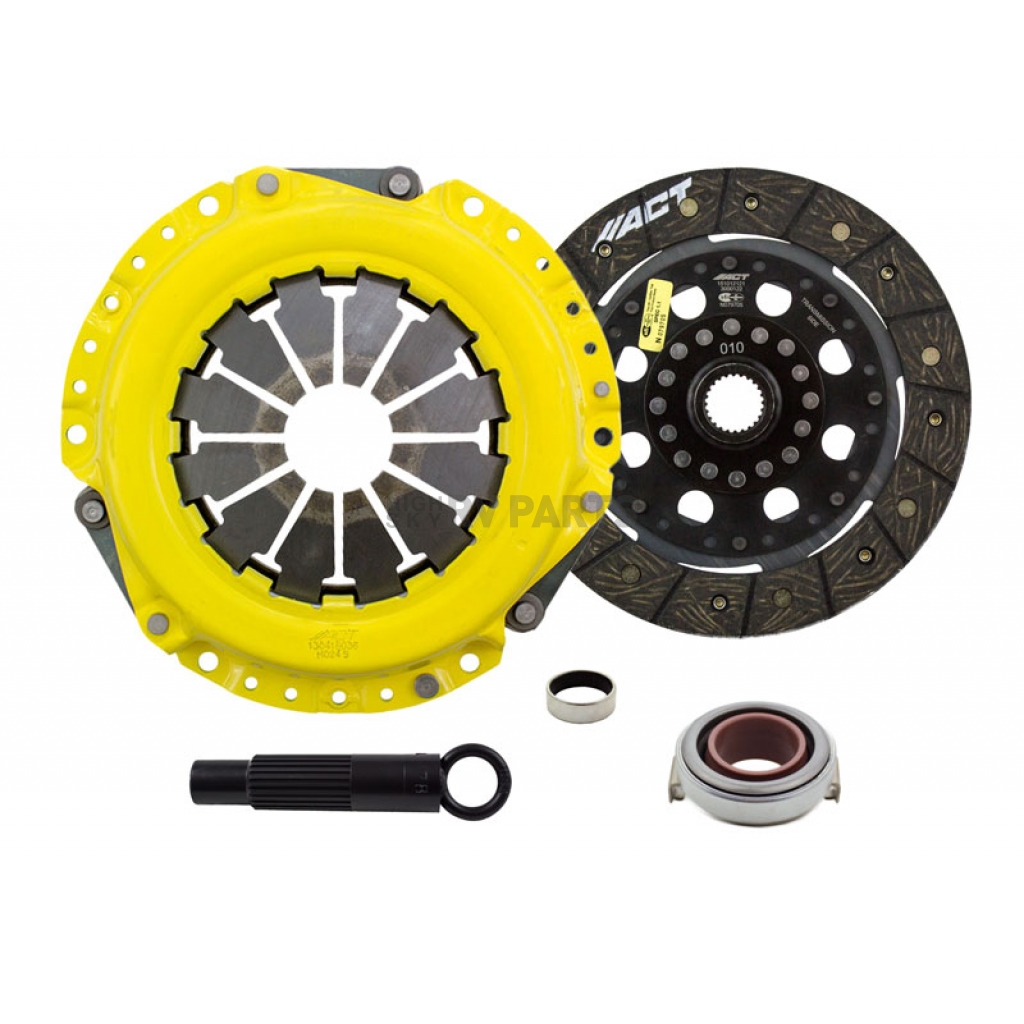

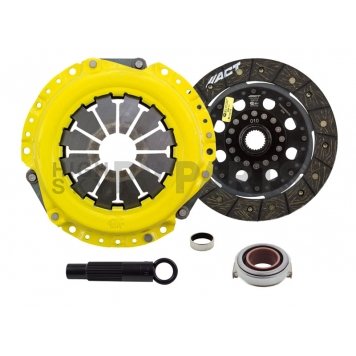

The ACT clutch kit includes a Sport pressure plate, Street Rigid-hub disc, release bearing, pilot bearing and alignment tool. The Sport pressure plate allows for a 20 to 40 Percent increase in clamp load over the stock unit. ACT’s Sport pressure plates have a pedal feel that is stock to moderate and are recommended for use with a street disc. ACT pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure an exclusive four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency, and some are reinforced to reduce flex and improve efficiency and the feel of the pressure plate. ACT pressure plates are manufactured from new units not rebuilt from worn out parts and are 100 Percent tested and computer balanced for smooth operation at high RPM. ACT’s Street Rigid-hub discs have steel-backed lining for ultra-high burst strength and durability. These discs are the minimum weight street disc for faster shifts. Also, they feature top grade rivets to securely fasten the part together. The rivet design and rivet materials are carefully selected for maximum strength. Engagement is quick, smooth and precise with these discs. ACT’s Street Rigid-hub discs provide race-proven performance with street manageability. All Modified, Performance and many standard replacement discs are certified as meeting SFI Specification 1.1 and are legal in all racing organizations that require SFI certification. The kit is completed with a quality, stock replacement release bearing, pilot bearing and alignment tool.

Features

• Center Hub Springs Help Lessen The Shock Of Engagement
• Premium Organic Friction Material For High Heat Tolerance, Quick Recovery, Good Friction And Long Life
• Strict SFI Certification Ensures Driver And Spectator Safety
• Steel Backed Linings For Higher Burst Strength
• Spring Center Construction Properly Dampens Torsional Vibrations For Quieter Operation
• Clamp Load Increase Of 20 To 40 Percent Over Stock With A Stock To Moderate Pedal Feel
• All ACT Pressure Plates Are Dynamically Computer Balanced For Smooth Operation At High RPM
• Limited 1 Year Warranty
