Advanced Clutch Set Heavy Duty Sprung 6 Paddle - SB10-HDG6

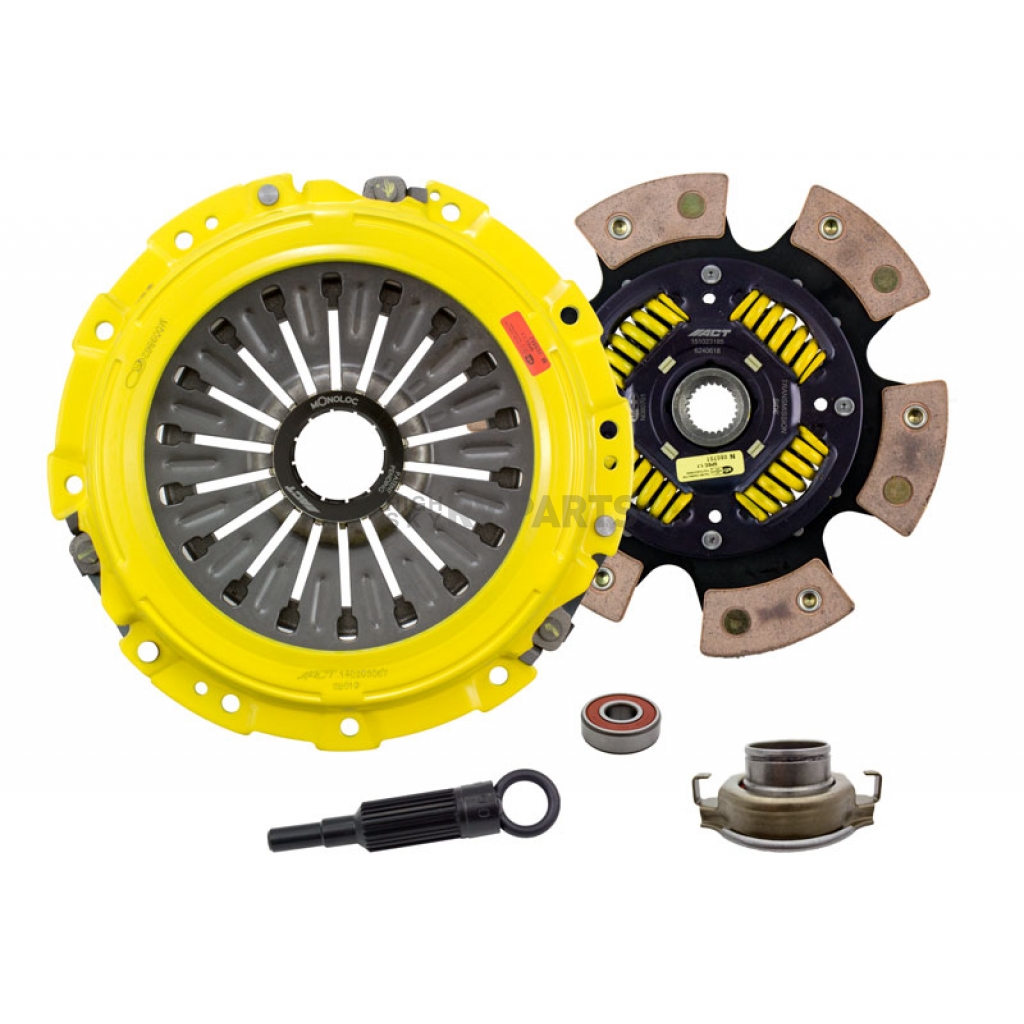

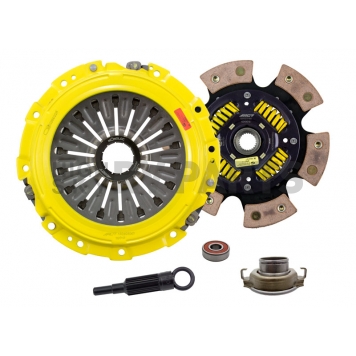

Clutch Set; Heavy Duty; 9.4 Inch Clutch Diameter; 1 Inch x 24 Spline Input Shaft; Diaphragm; Steel Pressure Plate; Single Disc/ Ceramic Friction Material; 6 Paddle Design/ Sprung Hub; With Flywheel/ Throwout Bearing/ Pilot Bearing/ Alignment Tool

MPN: SB10-HDG6

ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat. Monoloc is a one-piece, direct replacement or upgrade to the standard, two-piece wedge collar and wire ring featured in pull-type clutches. The spring tension of the segmented retaining ring is carefully calculated and tested for optimal performance. It provides uniform loading on the bearing and pressure plate to assure proper alignment, regardless of driver influence or vehicle modifications. Monoloc's hardened Chrome-moly steel construction will provide years of service.

Features

• Monoloc's Hardened-Chromoly Steel Construction Will Provide Years Of Service
• Premium Ceramic Friction Materials Provide Low Wear Rates And High Heat Tolerance
• Dynamically Computer Balanced For Smooth Operation At High RPM
• Monoloc Provides Uniform Loading On The Bearing And Pressure Plate To Assure Proper Alignment, Regardless Of Driver Influence Or Vehicle Modifications
• Uses Exclusive Diaphragm Design To Increase Clamp Load, Reduce Deflection And Maximize Clutch Life
• Precision Cover Stampings To Provide Rigidity And Consistency
• Limited 1 Year Warranty
