Advanced Clutch Set Diaphragm Unsprung 6 Paddle - SB8-XTR6

Authorized Dealer
Brand: Advanced Clutch Advanced Clutch
0 reviews
  • Have a product question? Ask us
  • Part Number: SB8-XTR6
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 18
Retail: $1,104.59
Price: $1,051.99
You Save: $52.60
Disc Diameter
 8.8 Inch
Disc Friction Face Design
 6 Paddle
Disc Friction Material
 Organic
Disc Hub Design
 Unsprung
Flywheel Material
 Chromoly Steel
Flywheel Weight
 10.5 Pound
Includes Alignment Tool
 Yes
Includes Pilot Bearing
 Yes
Includes Throwout Bearing
 Yes
Input Shaft Size
 1 Inch X 24 Spline
Number Of Friction Discs
 1 Disc
Share this page

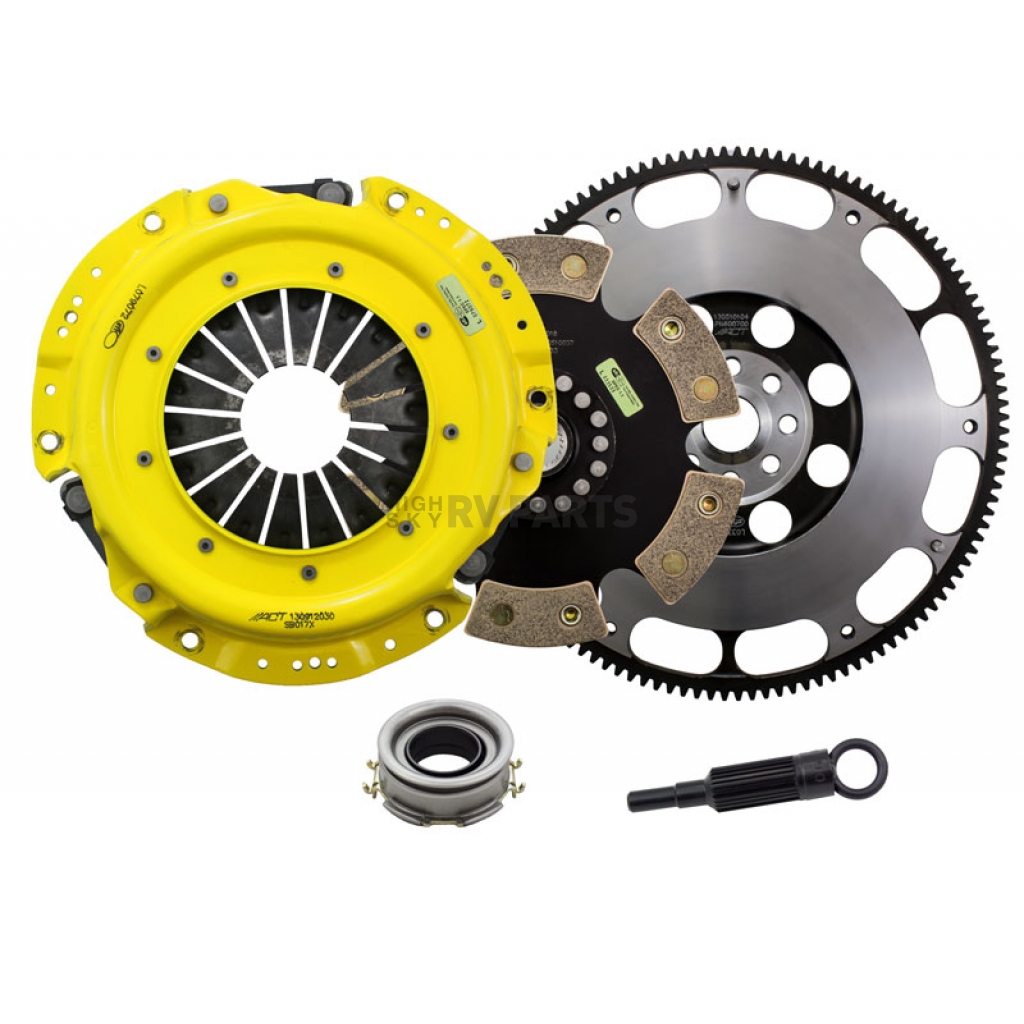

Clutch Set; Xtreme; 8.8 Inch Clutch Diameter; 1 Inch x 24 Spline Input Shaft; Diaphragm; Steel Pressure Plate; Single Disc/ Organic Friction Material; 6 Paddle Design/ Solid Hub; 10.5 Pound Steel Flywheel; With Flywheel/ Throwout Bearing/ Pilot Bearing/ Alignment Tool

MPN: SB8-XTR6

ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat.

Pressure Plate Design: Diaphragm
Input Shaft Size: 1 Inch X 24 Spline
Number Of Friction Discs: 1 Disc
Disc Friction Material: Organic
Disc Diameter: 8.8 Inch
Disc Hub Design: Unsprung
Pressure Plate Material: Steel
Flywheel Weight: 10.5 Pound
Flywheel Material: Chromoly Steel
Includes Throwout Bearing: Yes
Includes Pilot Bearing: Yes
Disc Friction Face Design: 6 Paddle
Torque Holding Capacity: 444 Feet/Pound
Includes Alignment Tool: Yes

Features

  • Pressure Plates Use Exclusive Diaphragm Design To Increase Clamp Load, Reduce Deflection And Maximize Clutch Life
  • Pressure Plates Have Precision Cover Stampings To Provide Rigidity And Consistency
  • Lightweight, Rigid Design Allows For Quicker Shifts And Smooth, Trouble-Free Service
  • Limited 1 Year Warranty
Specifications of Advanced Clutch Set Diaphragm Unsprung 6 Paddle - SB8-XTR6
Disc Diameter  8.8 Inch
Disc Friction Face Design  6 Paddle
Disc Friction Material  Organic
Disc Hub Design  Unsprung
Flywheel Material  Chromoly Steel
Flywheel Weight  10.5 Pound
Includes Alignment Tool  Yes
Includes Pilot Bearing  Yes
Includes Throwout Bearing  Yes
Input Shaft Size  1 Inch X 24 Spline
Number Of Friction Discs  1 Disc
Pressure Plate Design  Diaphragm
Pressure Plate Material  Steel
Torque Holding Capacity  444 Feet/Pound

2013 Scion FR-S
2014 Scion FR-S

2013 Subaru BRZ
2014 Subaru BRZ
2015 Subaru BRZ
2016 Subaru BRZ
