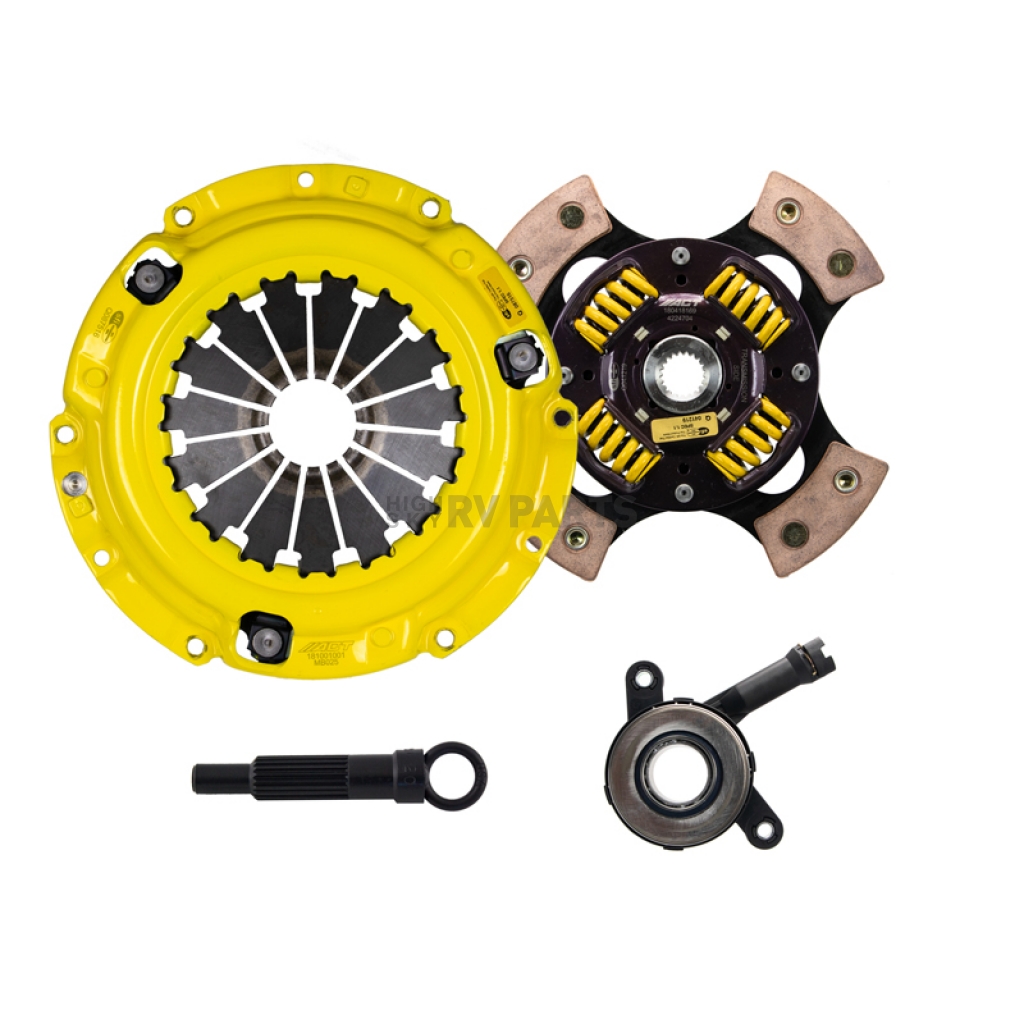

Advanced Clutch Set Heavy Duty Sprung 4 Paddle - MB11-HDG4
Disc Diameter
8.8 Inch
Disc Friction Face Design
4 Paddle
Disc Friction Material
Ceramic
Disc Hub Design
Sprung
Flywheel Material
No Flywheel
Flywheel Tooth Count
No Flywheel
Flywheel Weight
No Flywheel
Includes Alignment Tool
Yes
Includes Pilot Bearing
Yes
Includes Throwout Bearing
Yes
Input Shaft Size
7/8 Inch X 20 Spline
Share this page
Clutch Set; Heavy Duty/ Race; 8.8 Inch Clutch Diameter; 7/8 Inch x 20 Spline Input Shaft; Diaphragm; Single Disc/ Ceramic Friction Material; 4 Paddle Design/ Sprung Hub; With Clutch Disc/ Pressure Plate/ Alignment Tool/ Release Bearing
MPN: MB11-HDG4
ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability.Pressure Plate Design: Heavy Duty
Input Shaft Size: 7/8 Inch X 20 Spline
Number Of Friction Discs: 1 Disc
Disc Friction Material: Ceramic
Disc Diameter: 8.8 Inch
Disc Hub Design: Sprung
Flywheel Weight: No Flywheel
Flywheel Tooth Count: No Flywheel
Flywheel Material: No Flywheel
Includes Throwout Bearing: Yes
Includes Pilot Bearing: Yes
Disc Friction Face Design: 4 Paddle
Torque Holding Capacity: 354 Feet/Pound
Includes Alignment Tool: Yes
Features
- Quality: Carefully Engineered, Precisely Assembled, Accurately Balanced, Uses Select Ceramic Friction Materials For High Heat Tolerance And Maximum Performance
- Life: Moderate Friction Life, Extended By Exclusive Diaphragm Design
- Feel: Light To Moderate Pedal Effort, Smooth Positive Engagement, OE To Mild Gear Rattle
- Pressure Plates Have Precision Cover Stampings To Provide Rigidity And Consistency
- 100 Percent Clamp Load Tested And Dynamically Computer Balanced For Smooth High RPM Reliability
- Limited 12 Month Warranty
| Specifications of Advanced Clutch Set Heavy Duty Sprung 4 Paddle - MB11-HDG4 | |
| Disc Diameter | 8.8 Inch |
| Disc Friction Face Design | 4 Paddle |
| Disc Friction Material | Ceramic |
| Disc Hub Design | Sprung |
| Flywheel Material | No Flywheel |
| Flywheel Tooth Count | No Flywheel |
| Flywheel Weight | No Flywheel |
| Includes Alignment Tool | Yes |
| Includes Pilot Bearing | Yes |
| Includes Throwout Bearing | Yes |
| Input Shaft Size | 7/8 Inch X 20 Spline |
| Number Of Friction Discs | 1 Disc |
| Pressure Plate Design | Heavy Duty |
| Torque Holding Capacity | 354 Feet/Pound |
2008 Mitsubishi Lancer
2009 Mitsubishi Lancer
2010 Mitsubishi Lancer
2011 Mitsubishi Lancer
2012 Mitsubishi Lancer
2013 Mitsubishi Lancer
2014 Mitsubishi Lancer
2015 Mitsubishi Lancer
2016 Mitsubishi Lancer
2017 Mitsubishi Lancer
2009 Mitsubishi Lancer
2010 Mitsubishi Lancer
2011 Mitsubishi Lancer
2012 Mitsubishi Lancer
2013 Mitsubishi Lancer
2014 Mitsubishi Lancer
2015 Mitsubishi Lancer
2016 Mitsubishi Lancer
2017 Mitsubishi Lancer
