Advanced Clutch Set Heavy Duty Sprung 4 Paddle - MB10-HDG4

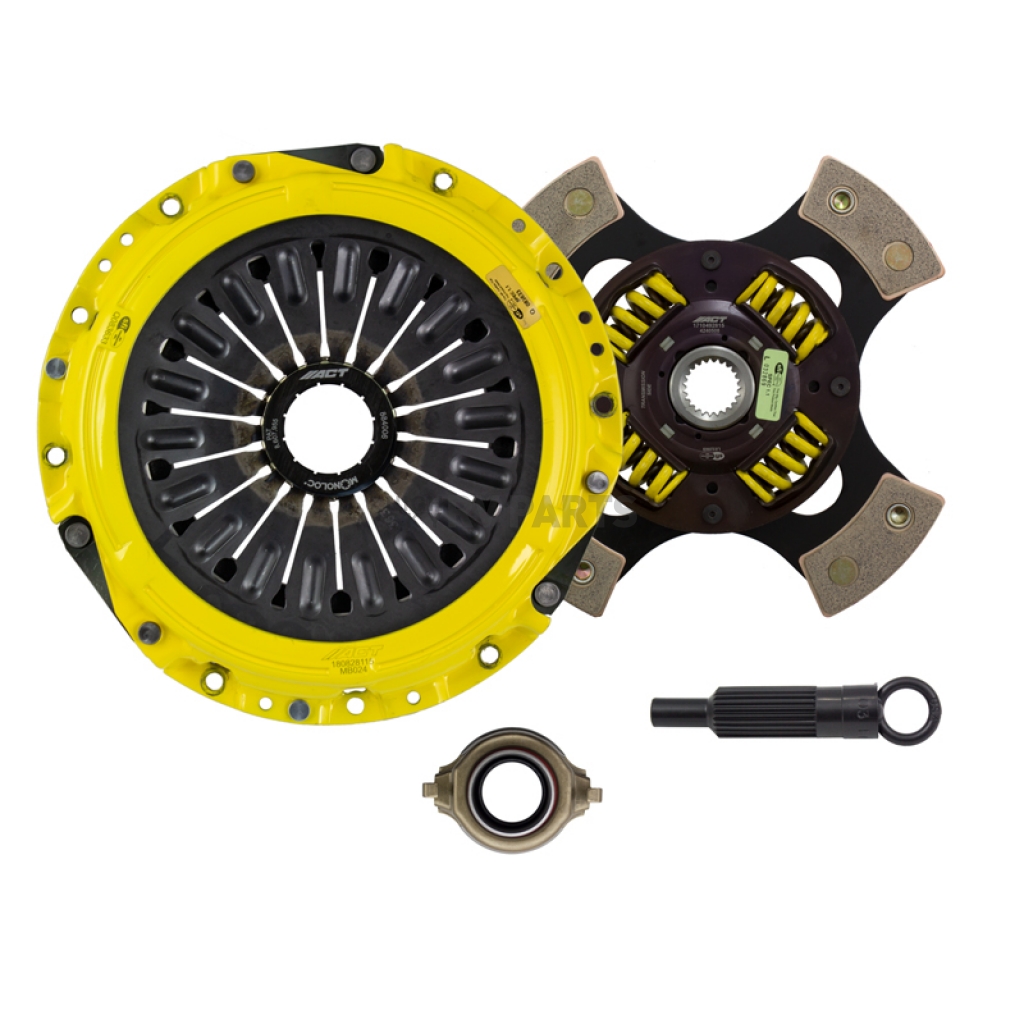

Clutch Set; Heavy Duty-Monoloc/ Race; 9.4 Inch Clutch Diameter; 1 Inch x 23 Spline Input Shaft; Diaphragm; Single Disc/ Ceramic Friction Material; 4 Paddle Design/ Sprung Hub; With Clutch Disc/ Pressure Plate/ Alignment Tool/ Release Bearing

MPN: MB10-HDG4

ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines. Monoloc is a one-piece, direct replacement or upgrade to the standard, two-piece wedge collar and wire ring featured in pull-type clutches. The spring tension of the segmented retaining ring is carefully calculated and tested for optimal performance. It provides uniform loading on the bearing and pressure plate to assure proper alignment, regardless of driver influence or vehicle modifications.

Features

• Feel: Light To Moderate Pedal Effort, Aggressive Engagement, OE To Mild Gear Rattle, Confidence During Hard Shifts
• Life: Moderate Friction Life, Extended By Exclusive Diaphragm Design, Dramatic Improvement In Release Mechanism Life
• Quality: Carefully Engineered, Precisely Assembled, Accurately Balanced, Uses Select Ceramic Friction Materials For High Heat Tolerance And Maximum Performance, Major Improvement In Release Mechanism
• 100 Percent Clamp Load Tested And Dynamically Computer Balanced For Smooth High RPM Reliability
• Limited 12 Month Warranty
