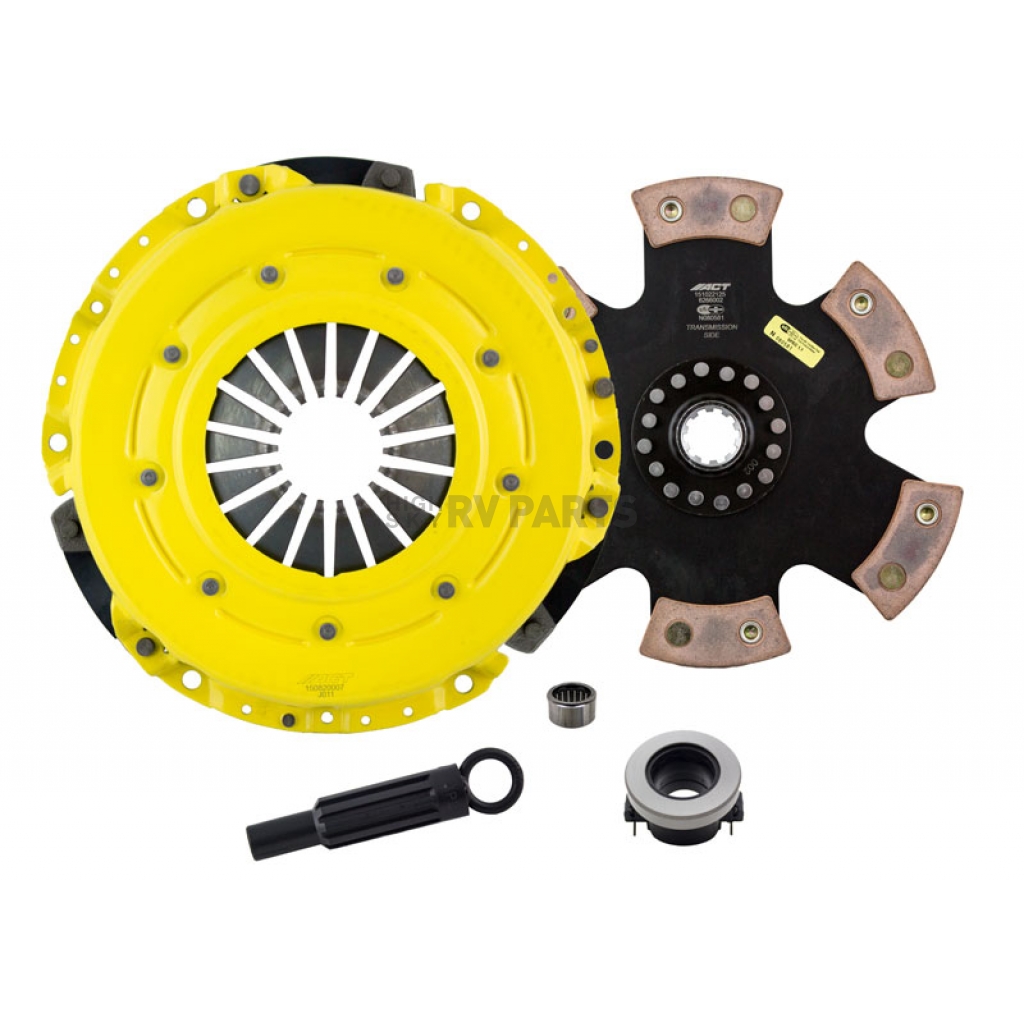

Advanced Clutch Set Heavy Duty Rigid 6 Paddle - JP2-HDR6
Disc Diameter
10-1/2 Inch
Disc Friction Face Design
6 Paddle
Disc Friction Material
Ceramic
Disc Hub Design
Rigid
Flywheel Material
No Flywheel
Flywheel Tooth Count
No Flywheel
Flywheel Weight
No Flywheel
Includes Alignment Tool
Yes
Includes Pilot Bearing
Yes
Includes Throwout Bearing
Yes
Input Shaft Size
1-1/8 Inch X 10 Spline
Share this page
Clutch Set; Heavy Duty/ Race; 10.5 Inch Clutch Diameter; 1-1/8 Inch x 10 Spline Input Shaft; Diaphragm; Single Disc/ Ceramic Friction Material; 6 Paddle Design/ Rigid Hub; With Clutch Disc/ Pressure Plate/ Alignment Tool/ Release Bearing/ Pilot Bearing
MPN: JP2-HDR6
ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat.Pressure Plate Design: Heavy Duty
Input Shaft Size: 1-1/8 Inch X 10 Spline
Number Of Friction Discs: 1 Disc
Disc Friction Material: Ceramic
Disc Diameter: 10-1/2 Inch
Disc Hub Design: Rigid
Flywheel Weight: No Flywheel
Flywheel Tooth Count: No Flywheel
Flywheel Material: No Flywheel
Includes Throwout Bearing: Yes
Includes Pilot Bearing: Yes
Disc Friction Face Design: 6 Paddle
Pressure Plate Centrifugal Assist: No Centrifugal Assist
Torque Holding Capacity: 680 Feet/Pound
Includes Alignment Tool: Yes
Features
- Light To Moderate Pedal Effort, Aggressive Engagement, Increased Gear Rattle
- Moderate Friction Life, Extended By Exclusive Diaphragm Design, Rigid Design May Increase Spline Wear
- Carefully Engineered, Precisely Assembled, Accurately Balanced, Uses Select Ceramic Friction Materials For High Heat Tolerance And Maximum Performance
- 100 Percent Clamp Load Tested And Dynamically Computer Balanced For Smooth High RPM Reliability
- Limited 1 Year Warranty
| Specifications of Advanced Clutch Set Heavy Duty Rigid 6 Paddle - JP2-HDR6 | |
| Disc Diameter | 10-1/2 Inch |
| Disc Friction Face Design | 6 Paddle |
| Disc Friction Material | Ceramic |
| Disc Hub Design | Rigid |
| Flywheel Material | No Flywheel |
| Flywheel Tooth Count | No Flywheel |
| Flywheel Weight | No Flywheel |
| Includes Alignment Tool | Yes |
| Includes Pilot Bearing | Yes |
| Includes Throwout Bearing | Yes |
| Input Shaft Size | 1-1/8 Inch X 10 Spline |
| Number Of Friction Discs | 1 Disc |
| Pressure Plate Centrifugal Assist | No Centrifugal Assist |
| Pressure Plate Design | Heavy Duty |
| Torque Holding Capacity | 680 Feet/Pound |
