Advanced Clutch Set Heavy Duty Rigid Full Face - AA1-HDSD

Authorized Dealer
Brand: Advanced Clutch Advanced Clutch
0 reviews
  • Have a product question? Ask us
  • Part Number: AA1-HDSD
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 18
Retail: $974.39
Price: $927.99
You Save: $46.40
Disc Diameter
 9 Inch
Disc Friction Face Design
 Full Face
Disc Friction Material
 Organic
Disc Hub Design
 Rigid
Flywheel Material
 No Flywheel
Flywheel Tooth Count
 No Flywheel
Flywheel Weight
 No Flywheel
Includes Alignment Tool
 Yes
Includes Pilot Bearing
 No
Includes Throwout Bearing
 Yes
Input Shaft Size
 15/16 Inch X 23 Spline
Share this page

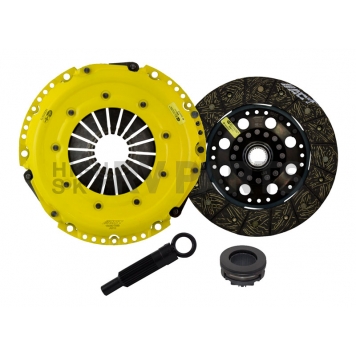

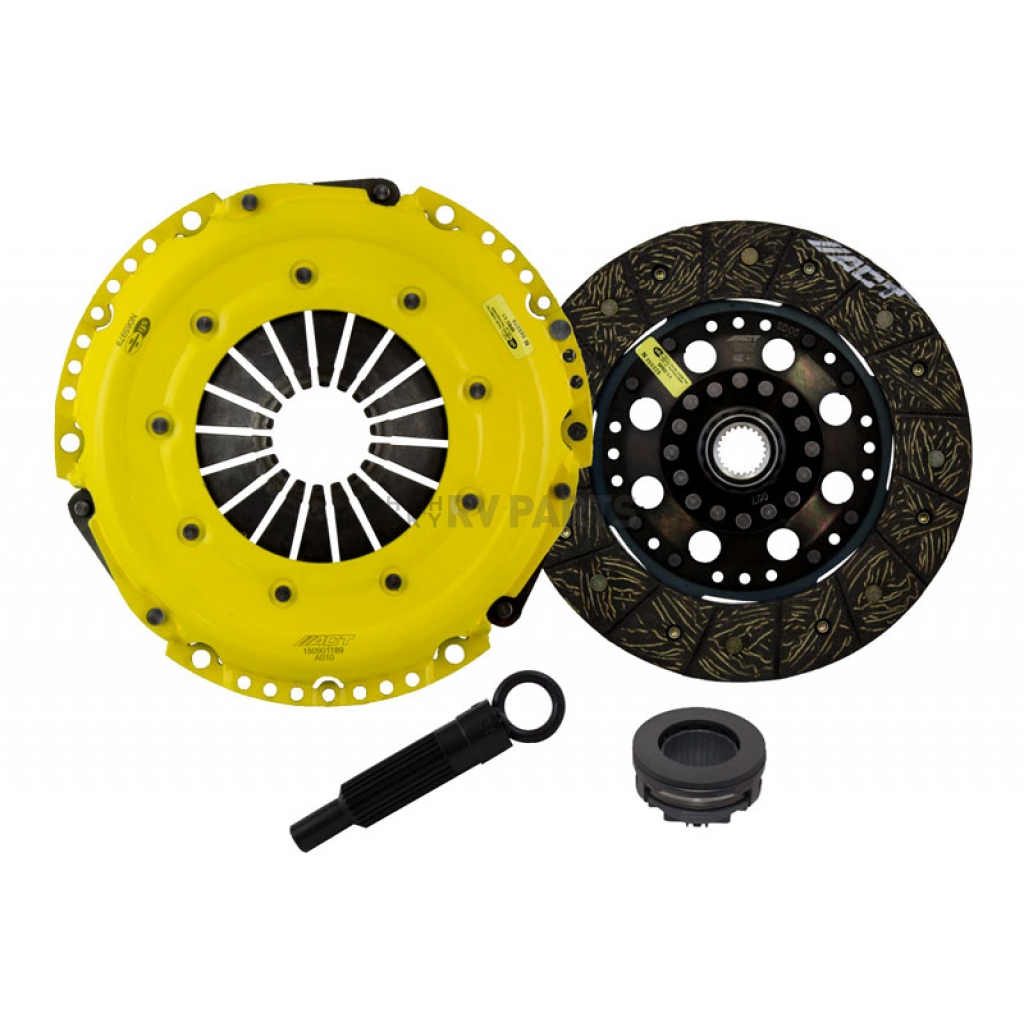

Clutch Set; Heavy Duty/ Performance Street; 9 Inch Clutch Diameter; 15/16 Inch x 23 Spline Input Shaft; Diaphragm; 280 Foot Pound Torque Capacity; Single Disc/ Organic Friction Material; Full Face Design/ Rigid Hub; With Clutch Disc/ Pressure Plate/ Alignment Tool/ Release Bearing

MPN: AA1-HDSD

Features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. The ACT performance street rigid-hub discs feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. The chrome-moly hub is heat-treated for strength and durability. Rivet design and materials are carefully selected for maximum strength. These discs are the minimum weight street disc for faster shifts. ACT's street rigid-hub discs provide race-proven performance with street manageability.

Pressure Plate Design: Heavy Duty
Input Shaft Size: 15/16 Inch X 23 Spline
Number Of Friction Discs: 1 Disc
Disc Friction Material: Organic
Disc Diameter: 9 Inch
Disc Hub Design: Rigid
Pressure Plate Material: Steel
Flywheel Weight: No Flywheel
Flywheel Tooth Count: No Flywheel
Flywheel Material: No Flywheel
Includes Throwout Bearing: Yes
Includes Pilot Bearing: No
Disc Friction Face Design: Full Face
Pressure Plate Clamp Load: 11.1 Pound
Pressure Plate Centrifugal Assist: No Centrifugal Assist
Torque Holding Capacity: 280 Feet/Pound
Includes Alignment Tool: Yes

Features

  • Light To Moderate Pedal Effort, Smooth Positive Engagement, Increased Gear Rattle
  • Longer Friction Life, Extended By Exclusive Diaphragm Design
  • Carefully Engineered, Precisely Assembled, Accurately Balanced, With Premium Organic Friction Materials For Heat Tolerance And Reduced Fade
  • Recommended For Street And Race Use
  • 100 Percent Clamp Load Tested And Dynamically Computer Balanced For Smooth High RPM Reliability
  • Limited 1 Year Warranty
Specifications of Advanced Clutch Set Heavy Duty Rigid Full Face - AA1-HDSD
Disc Diameter  9 Inch
Disc Friction Face Design  Full Face
Disc Friction Material  Organic
Disc Hub Design  Rigid
Flywheel Material  No Flywheel
Flywheel Tooth Count  No Flywheel
Flywheel Weight  No Flywheel
Includes Alignment Tool  Yes
Includes Pilot Bearing  No
Includes Throwout Bearing  Yes
Input Shaft Size  15/16 Inch X 23 Spline
Number Of Friction Discs  1 Disc
Pressure Plate Centrifugal Assist  No Centrifugal Assist
Pressure Plate Clamp Load  11.1 Pound
Pressure Plate Design  Heavy Duty
Pressure Plate Material  Steel
Torque Holding Capacity  280 Feet/Pound

1997 Audi A4
1998 Audi A4
1999 Audi A4
2000 Audi A4
2001 Audi A4
2002 Audi A4
2003 Audi A4
2004 Audi A4
2005 Audi A4

1997 Audi A4 Quattro
1998 Audi A4 Quattro
1999 Audi A4 Quattro
2000 Audi A4 Quattro
2001 Audi A4 Quattro
2002 Audi A4 Quattro
2003 Audi A4 Quattro
2004 Audi A4 Quattro
2005 Audi A4 Quattro

1998 Volkswagen Passat
1999 Volkswagen Passat
2000 Volkswagen Passat
2001 Volkswagen Passat
2002 Volkswagen Passat
2003 Volkswagen Passat
2004 Volkswagen Passat
2005 Volkswagen Passat
