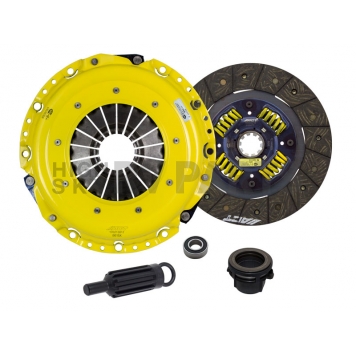

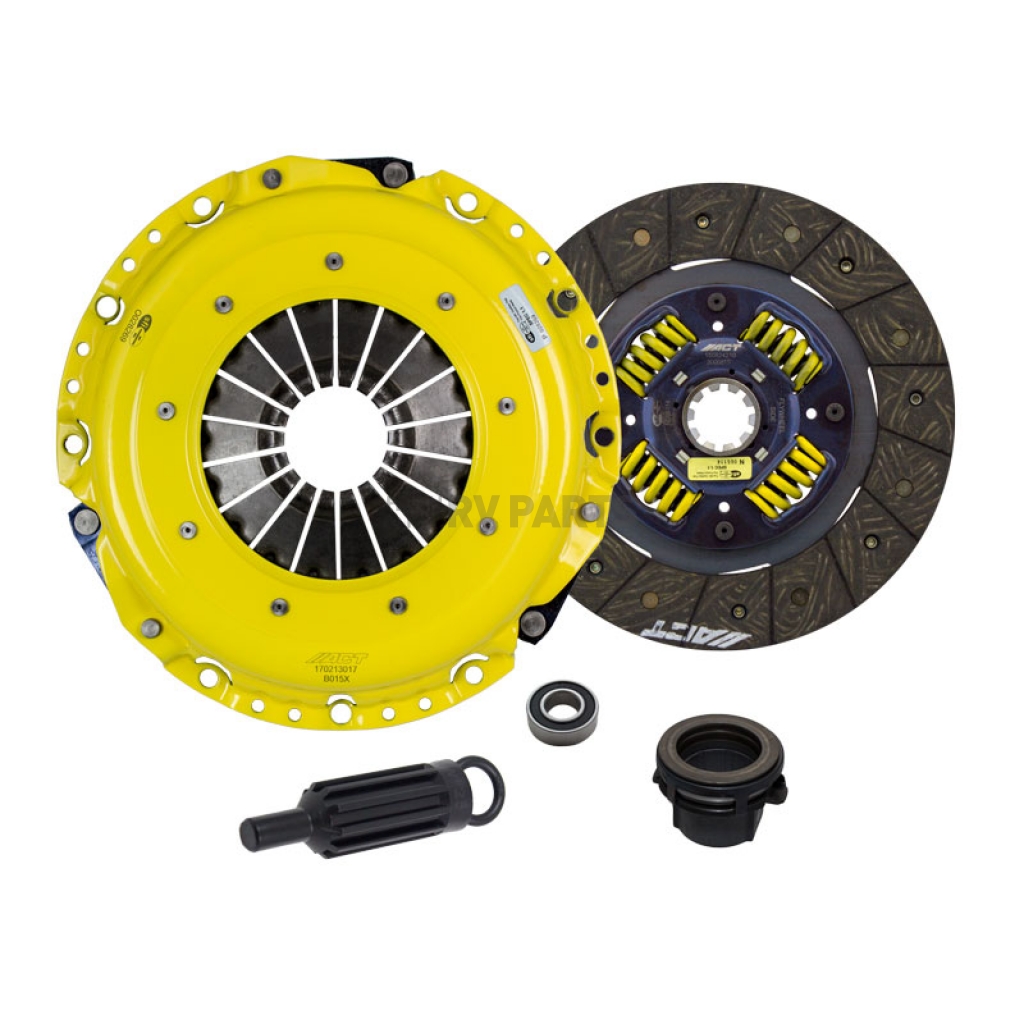

Advanced Clutch Set Diaphragm Sprung Full Face - BM9-XTSS
Disc Diameter
9.4 Inch
Disc Friction Face Design
Full Face
Disc Friction Material
Organic
Disc Hub Design
Sprung
Flywheel Material
No Flywheel
Flywheel Tooth Count
No Flywheel
Flywheel Weight
No Flywheel
Includes Alignment Tool
Yes
Includes Pilot Bearing
Yes
Includes Throwout Bearing
Yes
Input Shaft Size
1-3/8 Inch X 10 Spline
Share this page
Clutch Set; Xtreme/ Performance Street; 9.4 Inch Clutch Diameter; 1-3/8 Inch x 10 Spline Input Shaft; Diaphragm; Single Disc/ Organic Friction Material; Full Face Design/ Sprung Hub; With Clutch Disc/ Pressure Plate/ Throwout Bearing/ Pilot Bearing/ Alignment Tool
MPN: BM9-XTSS
Clutch kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. The ACT performance street rigid-hub discs feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. The chrome-moly hub is heat-treated for strength and durability. Rivet design and materials are carefully selected for maximum strength. These discs are the minimum weight street disc for faster shifts. ACT's street rigid-hub discs provide race-proven performance with street manageability.Pressure Plate Design: Diaphragm
Input Shaft Size: 1-3/8 Inch X 10 Spline
Number Of Friction Discs: 1 Disc
Disc Friction Material: Organic
Disc Diameter: 9.4 Inch
Disc Hub Design: Sprung
Flywheel Weight: No Flywheel
Flywheel Tooth Count: No Flywheel
Flywheel Material: No Flywheel
Includes Throwout Bearing: Yes
Includes Pilot Bearing: Yes
Disc Friction Face Design: Full Face
Torque Holding Capacity: 549 Feet/Pound
Includes Alignment Tool: Yes
Features
- Feel: Light To Moderate Pedal Effort, Smooth Positive Engagement, Increased Gear Rattle
- Life: Longer Friction Life, Extended By Exclusive Diaphragm Design, Rigid Design May Increase Spline Wear
- Quality: Carefully Engineered, Precisely Assembled, Accurately Balanced, With Premium Organic Friction Materials For Heat Tolerance And Reduced Fade
- Recommended For Street And Race Use
- Steel-Backed Linings For Higher Burst Strength, Reduced Marcel For Quicker Shifts
- Limited 12 Month Warranty
| Specifications of Advanced Clutch Set Diaphragm Sprung Full Face - BM9-XTSS | |
| Disc Diameter | 9.4 Inch |
| Disc Friction Face Design | Full Face |
| Disc Friction Material | Organic |
| Disc Hub Design | Sprung |
| Flywheel Material | No Flywheel |
| Flywheel Tooth Count | No Flywheel |
| Flywheel Weight | No Flywheel |
| Includes Alignment Tool | Yes |
| Includes Pilot Bearing | Yes |
| Includes Throwout Bearing | Yes |
| Input Shaft Size | 1-3/8 Inch X 10 Spline |
| Number Of Friction Discs | 1 Disc |
| Pressure Plate Design | Diaphragm |
| Torque Holding Capacity | 549 Feet/Pound |
2001 BMW M3
2002 BMW M3
2003 BMW M3
2004 BMW M3
2005 BMW M3
2006 BMW M3
2002 BMW M3
2003 BMW M3
2004 BMW M3
2005 BMW M3
2006 BMW M3
