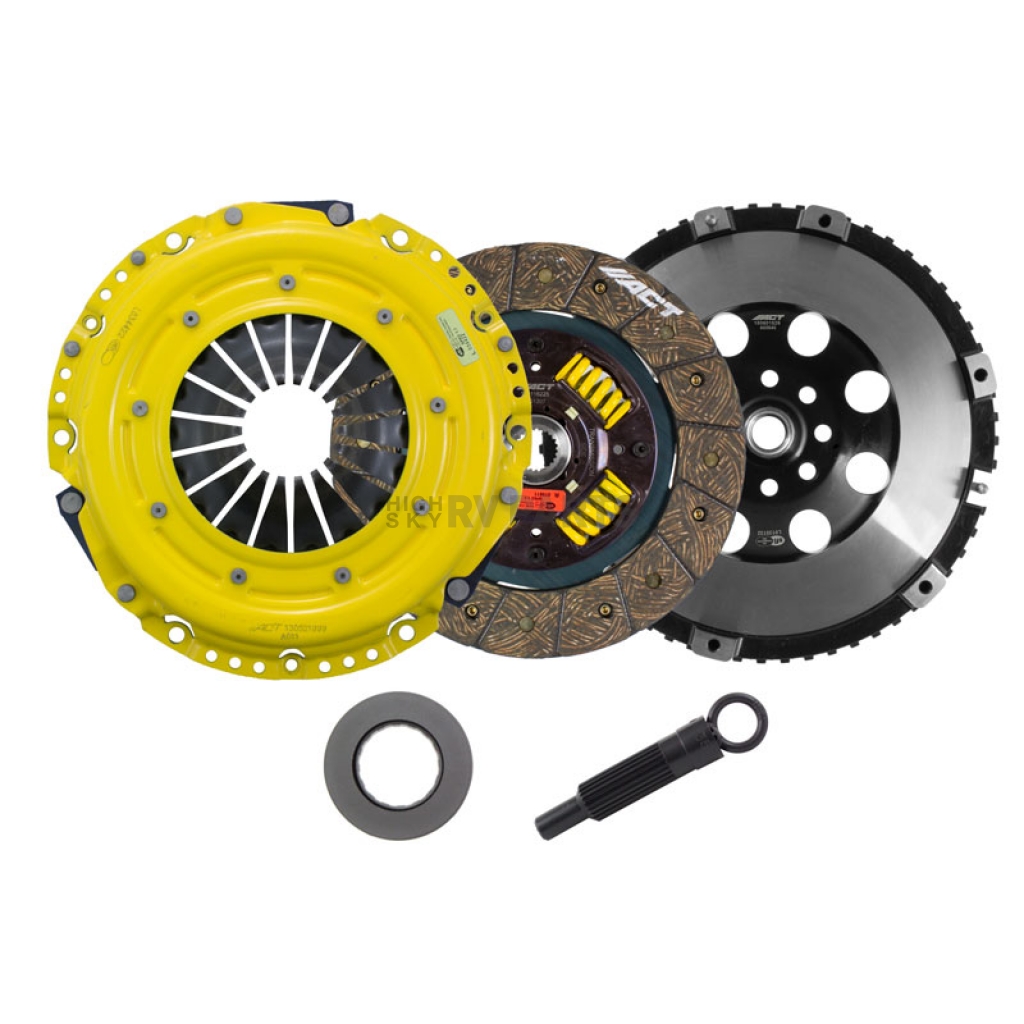

Advanced Clutch Set Diaphragm Sprung Full Face - AA6-XTSS
Disc Diameter
9.4 Inch
Disc Friction Face Design
Full Face
Disc Friction Material
Organic
Disc Hub Design
Sprung
Flywheel Material
Chromoly Steel
Flywheel Tooth Count
135
Flywheel Weight
15.3 Pound
Includes Alignment Tool
Yes
Includes Pilot Bearing
Yes
Includes Throwout Bearing
Yes
Input Shaft Size
15/16 Inch X 23 Spline
Share this page
Clutch Set; Xtreme/ Performance Street; 9.4 Inch Clutch Diameter; 15/16 Inch x 23 Spline Input Shaft; Diaphragm; Single Disc/ Organic Friction Material; Full Face Design/ Sprung Hub; With Clutch Disc/ Pressure Plate/ Flywheel/ Alignment Tool/ Release Bearing
MPN: AA6-XTSS
Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's Performance street discs are the most popular disc purchased. They feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. These discs have reduced marcel for faster shift action to complement ACT pressure plates. Quiet operation with increased strength and reliability.Pressure Plate Design: Diaphragm
Input Shaft Size: 15/16 Inch X 23 Spline
Number Of Friction Discs: 1 Disc
Disc Friction Material: Organic
Disc Diameter: 9.4 Inch
Disc Hub Design: Sprung
Flywheel Weight: 15.3 Pound
Flywheel Tooth Count: 135
Flywheel Material: Chromoly Steel
Includes Throwout Bearing: Yes
Includes Pilot Bearing: Yes
Disc Friction Face Design: Full Face
Torque Holding Capacity: 515 Feet/Pound
Includes Alignment Tool: Yes
Features
- Feel: Moderate To Heavy Pedal Effort, Smooth Engagement, OE To Mild Gear Rattle
- Life: Longer Friction Life, Extended By Exclusive Diaphragm Design
- Quality: Carefully Engineered, Precisely Assembled, Accurately Balanced, With Premium Organic Friction Materials For Heat Tolerance And Reduced Fade
- 100 Percent Clamp Load Tested And Dynamically Computer Balanced For Smooth High RPM Reliability
- Limited 12 Month Warranty
| Specifications of Advanced Clutch Set Diaphragm Sprung Full Face - AA6-XTSS | |
| Disc Diameter | 9.4 Inch |
| Disc Friction Face Design | Full Face |
| Disc Friction Material | Organic |
| Disc Hub Design | Sprung |
| Flywheel Material | Chromoly Steel |
| Flywheel Tooth Count | 135 |
| Flywheel Weight | 15.3 Pound |
| Includes Alignment Tool | Yes |
| Includes Pilot Bearing | Yes |
| Includes Throwout Bearing | Yes |
| Input Shaft Size | 15/16 Inch X 23 Spline |
| Number Of Friction Discs | 1 Disc |
| Pressure Plate Design | Diaphragm |
| Torque Holding Capacity | 515 Feet/Pound |
2000 Audi A6 Quattro
2001 Audi A6 Quattro
2002 Audi A6 Quattro
2003 Audi A6 Quattro
2004 Audi A6 Quattro
2001 Audi A6 Quattro
2002 Audi A6 Quattro
2003 Audi A6 Quattro
2004 Audi A6 Quattro
2001-2005 Audi Allroad Quattro
2001 Audi Allroad Quattro
2002 Audi Allroad Quattro
2003 Audi Allroad Quattro
2004 Audi Allroad Quattro
2005 Audi Allroad Quattro
2002 Audi Allroad Quattro
2003 Audi Allroad Quattro
2004 Audi Allroad Quattro
2005 Audi Allroad Quattro
2000 Audi S4
