Zone Offroad 4.5 Inch Lift Kit - ZOND78
Color
Black
Front Lift Amount (IN)
4-1/2 Inch
Front Lift Type
Coil Spring
Maximum Tire Size
35 x 12.50
Minimum Wheel Diameter
20
Rear Lift Amount (IN)
2-1/2 Inch
Rear Lift Type
Coil Spring
Shock Type
Without Shocks
Shocks
Without Shocks In Kit - Shock Change Not Necessary
Wheel Backspacing (IN)
4.5
Wheel Offset (MM)
-12.7
Share this page

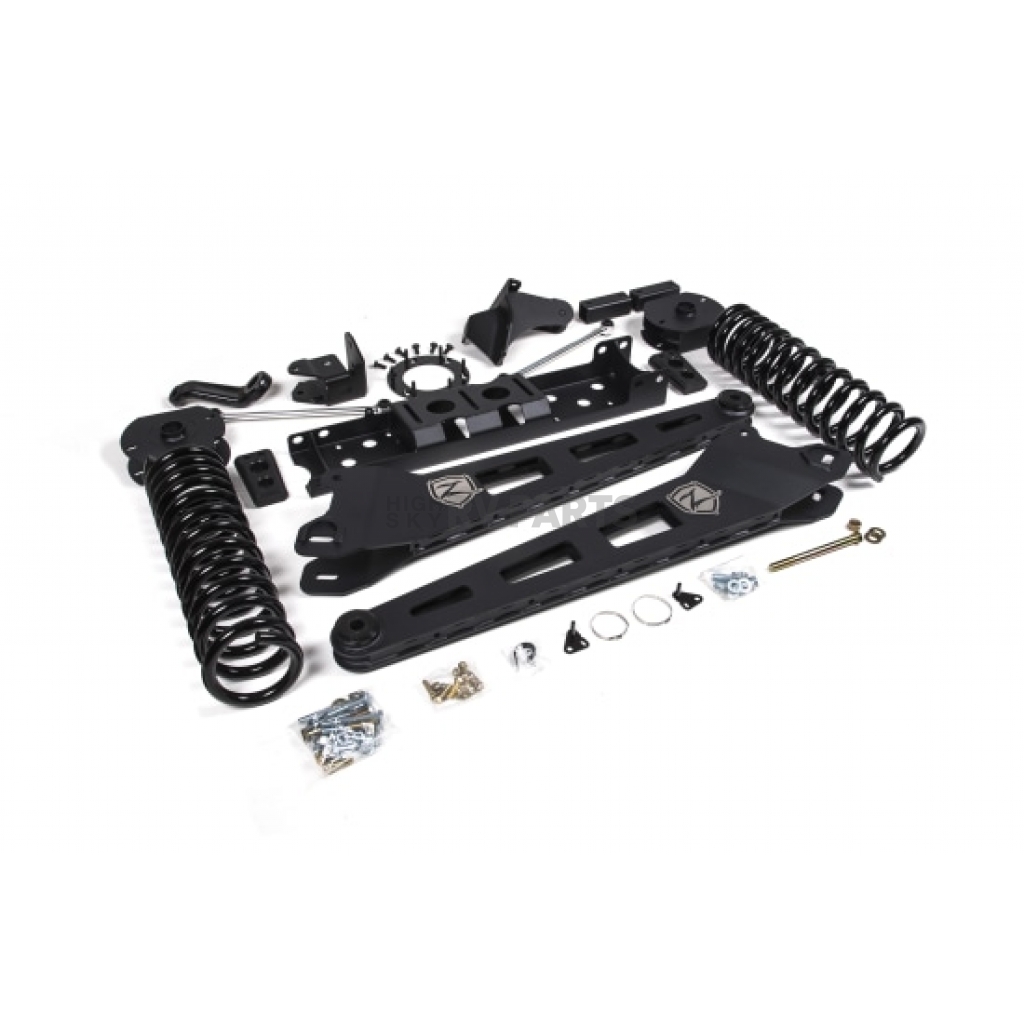

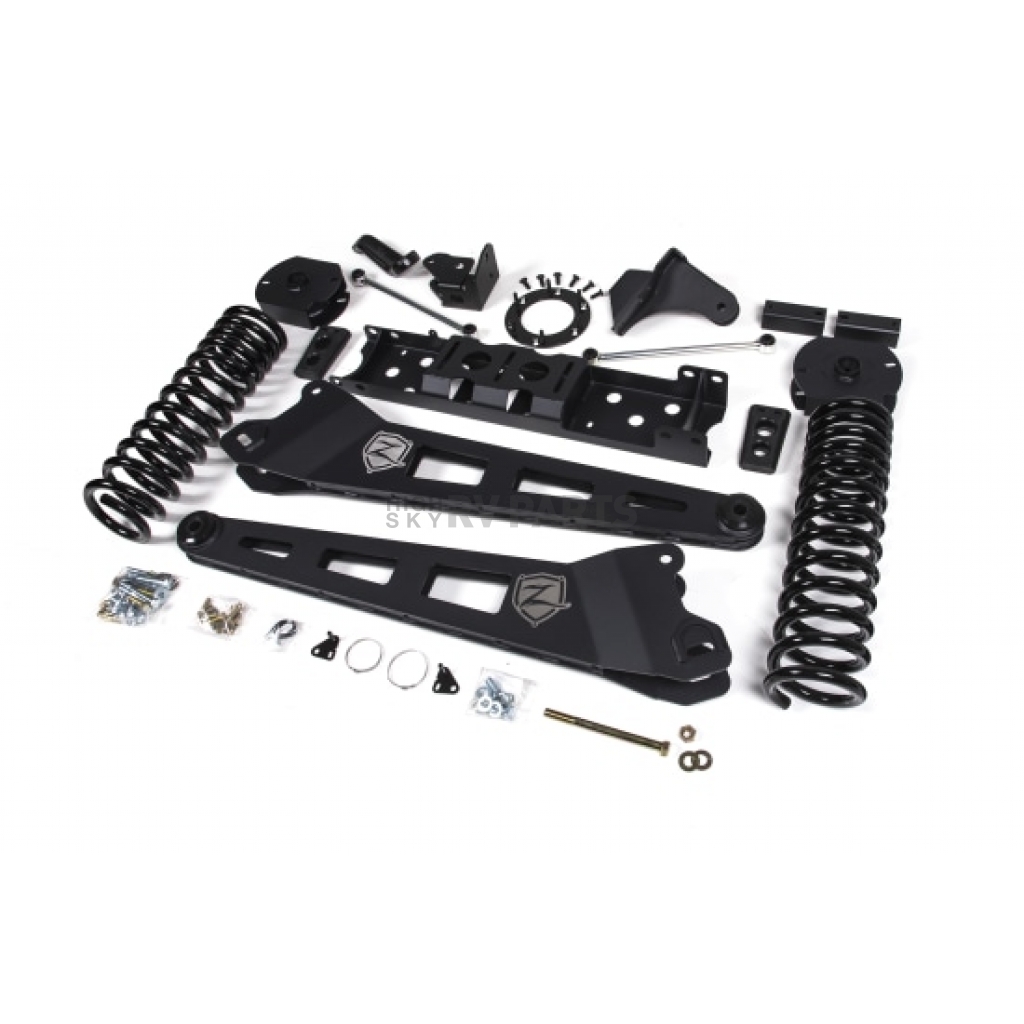

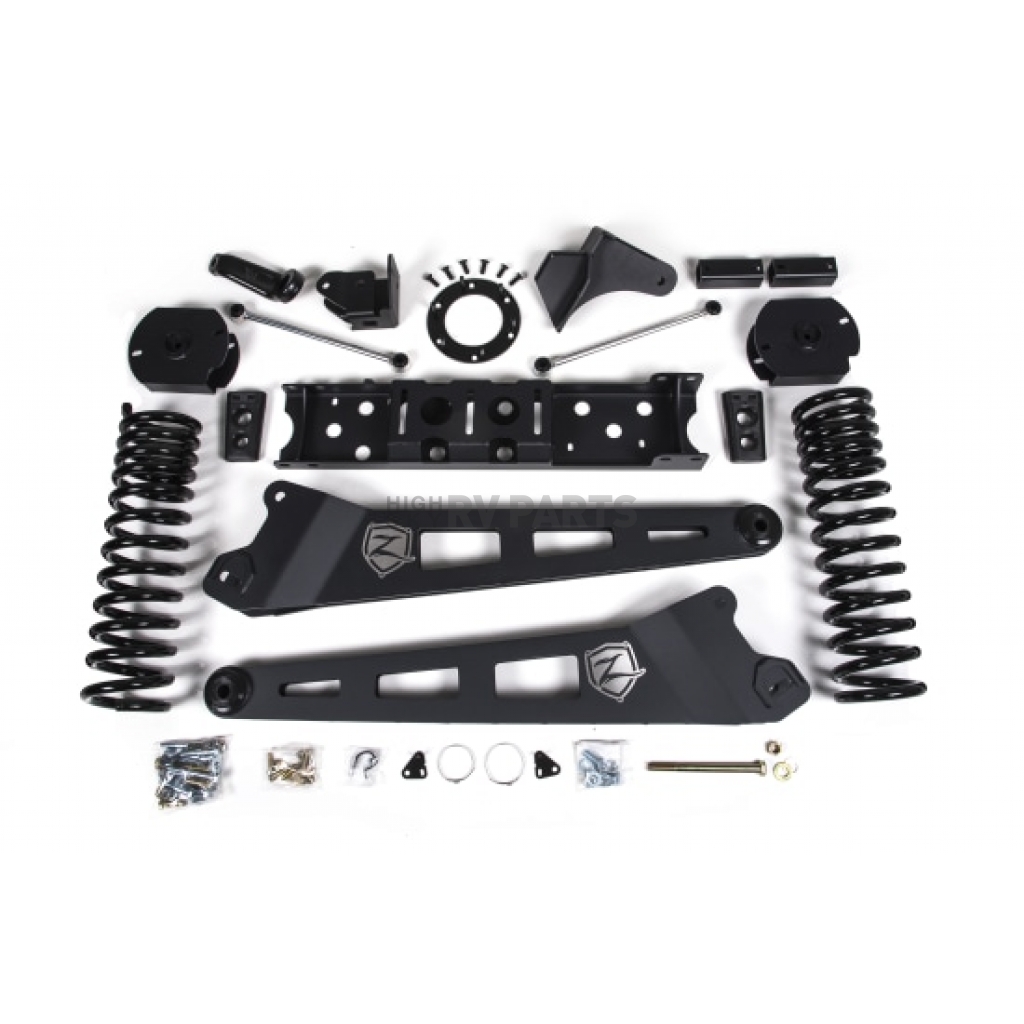

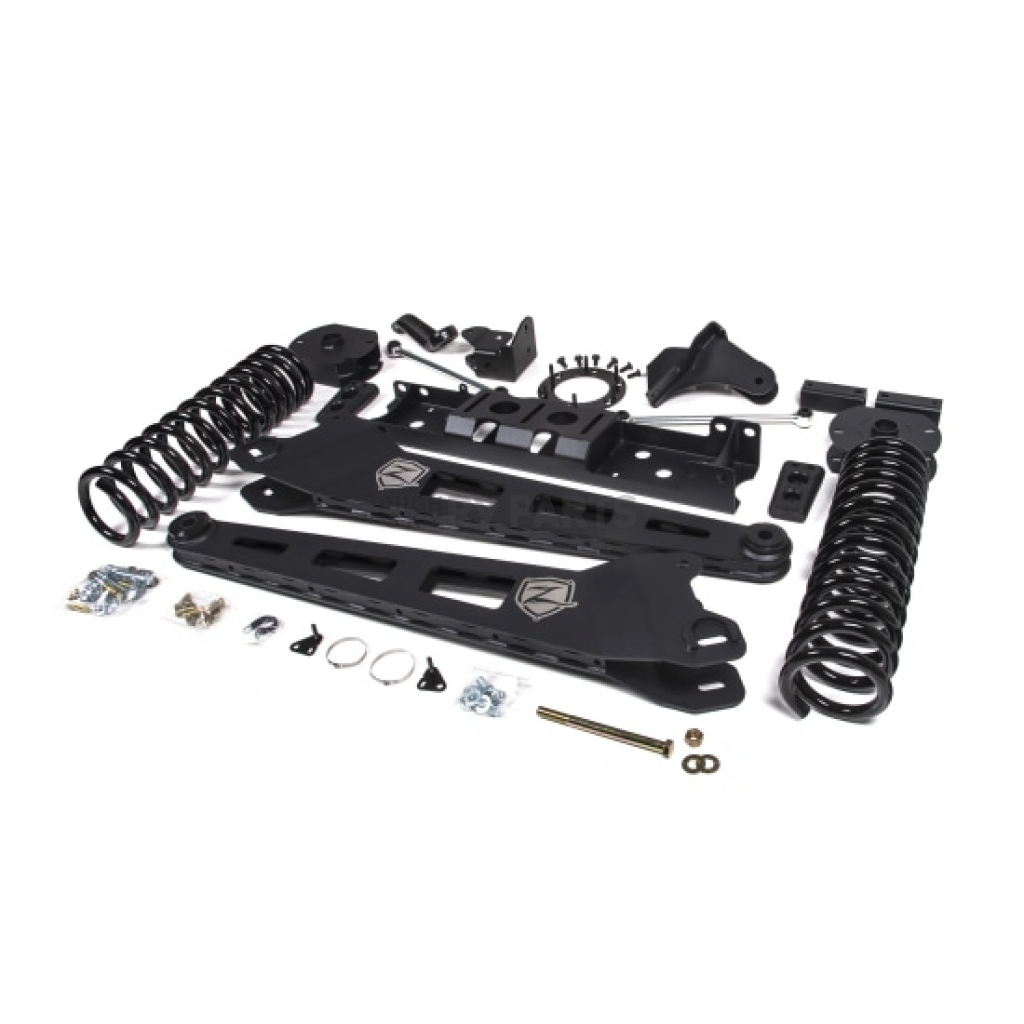

Lift Kit Suspension; 4-1/2 Inch Front Lift; 2-1/2 Inch Rear Lift; Without Shock Absorbers In Kit - Shock Change Necessary; Black Components; With Coil Springs/ Coil Spring Spacers/ Radius Arms/ Crossmember/ Track Bar Brackets/ Indexing Ring/ Installation Hardware
MPN: ZOND78
Up front, a pair of progressive rate, diesel-specific, 4 ½ Inch coil springs provides the extra height and smooth handling in the harshest of terrains. A forged drop pitman arm is supplied to correct steering angles, while a pair of sway bar drop brackets reposition the stock sway bar for optimal performance. Polyurethane bump stops limit up-travel, while brake line relocation brackets will allow your suspension to easily reach full droop. To correct the front suspension geometry at the new height, a pair of heavy-duty replacement radius arms is provided that bolt directly into the factory location. These new arms are massive upgrade to the factory stamped units, built from 1/4 Inch American made steel, and internally gusseted with a lower cam adjustment to dial in front end caster. A heavy-duty replacement transmission crossmember as well as a transfer case indexing ring repositions the front driveline output to allow use of the factory drivelines by correcting angles and allowing you to maintain use of 4WD. In the rear, 2 ½ Inch heavy-duty coil spacers are supplied to level out the stance and allow you to retain factory ride quality without effecting tow capacity.Front Lift Amount (IN): 4-1/2 Inch
Rear Lift Amount (IN): 2-1/2 Inch
Front Lift Type: Coil Spring
Rear Lift Type: Coil Spring
Maximum Tire Size: 35 x 12.50
Shock Type: Without Shocks
Wheel Backspacing (IN): 4.5
Minimum Wheel Diameter: 20
Wheel Offset (MM): -12.7
Shocks: Without Shocks In Kit - Shock Change Not Necessary
Color: Black
Features
- Heavy-Duty 1/4 Inch Steel, Laser Cut, Internally Gusseted Radius Arms Improve Strength, Offer More Ground Clearance And Correct Caster
- High Strength Progressive Rate Front Coil Springs For A Great Ride On Any Terrain
- F/R HD Track Bar Relocation Brackets To Correctly Position Both Axles Under The Truck
- Forged Drop Pitman Arm To Correct Steering Angles
- F/R Sway Bar Correction To Maintain Handling Performance
- HD Transmission Crossmember And T-Case Indexing Ring To Correct Front Driveline Angles
- Nitro Series Gas Or FOX Adventure Series IFP Gas Shocks To Improved Ride And Offroad Performance
- Allows Clearance For Up To 37 Inch Tires
- Limited Lifetime Warranty
Specifications of Zone Offroad 4.5 Inch Lift Kit - ZOND78 | |
Color | Black |
Front Lift Amount (IN) | 4-1/2 Inch |
Front Lift Type | Coil Spring |
Maximum Tire Size | 35 x 12.50 |
Minimum Wheel Diameter | 20 |
Rear Lift Amount (IN) | 2-1/2 Inch |
Rear Lift Type | Coil Spring |
Shock Type | Without Shocks |
Shocks | Without Shocks In Kit - Shock Change Not Necessary |
Wheel Backspacing (IN) | 4.5 |
Wheel Offset (MM) | -12.7 |
2019 Ram 2500
2020 Ram 2500
2021 Ram 2500
2022 Ram 2500
2020 Ram 2500
2021 Ram 2500
2022 Ram 2500
