Zone Control Radius Arm - ZOND78N

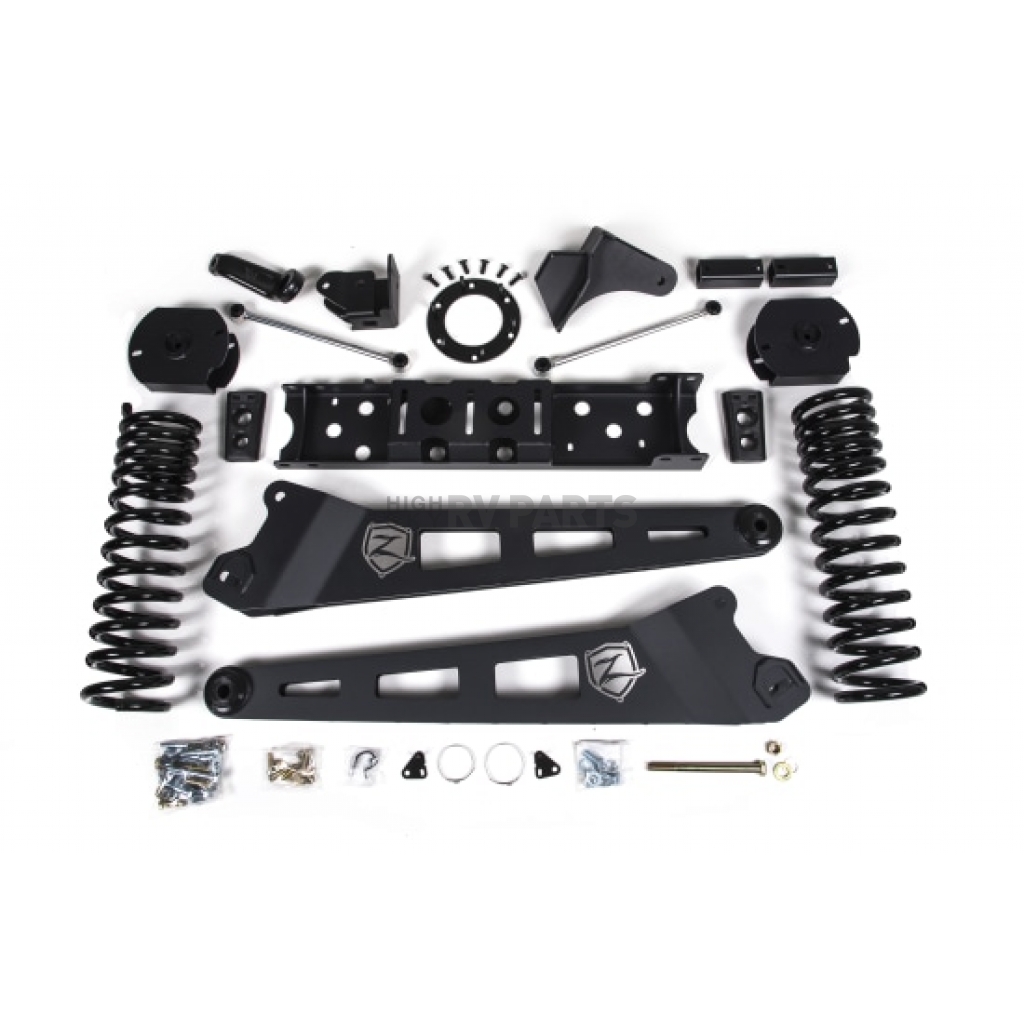

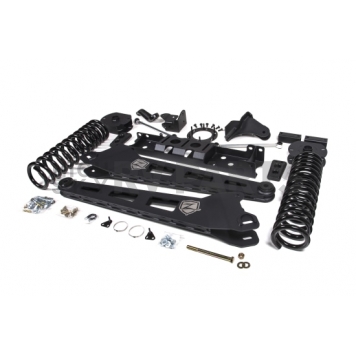

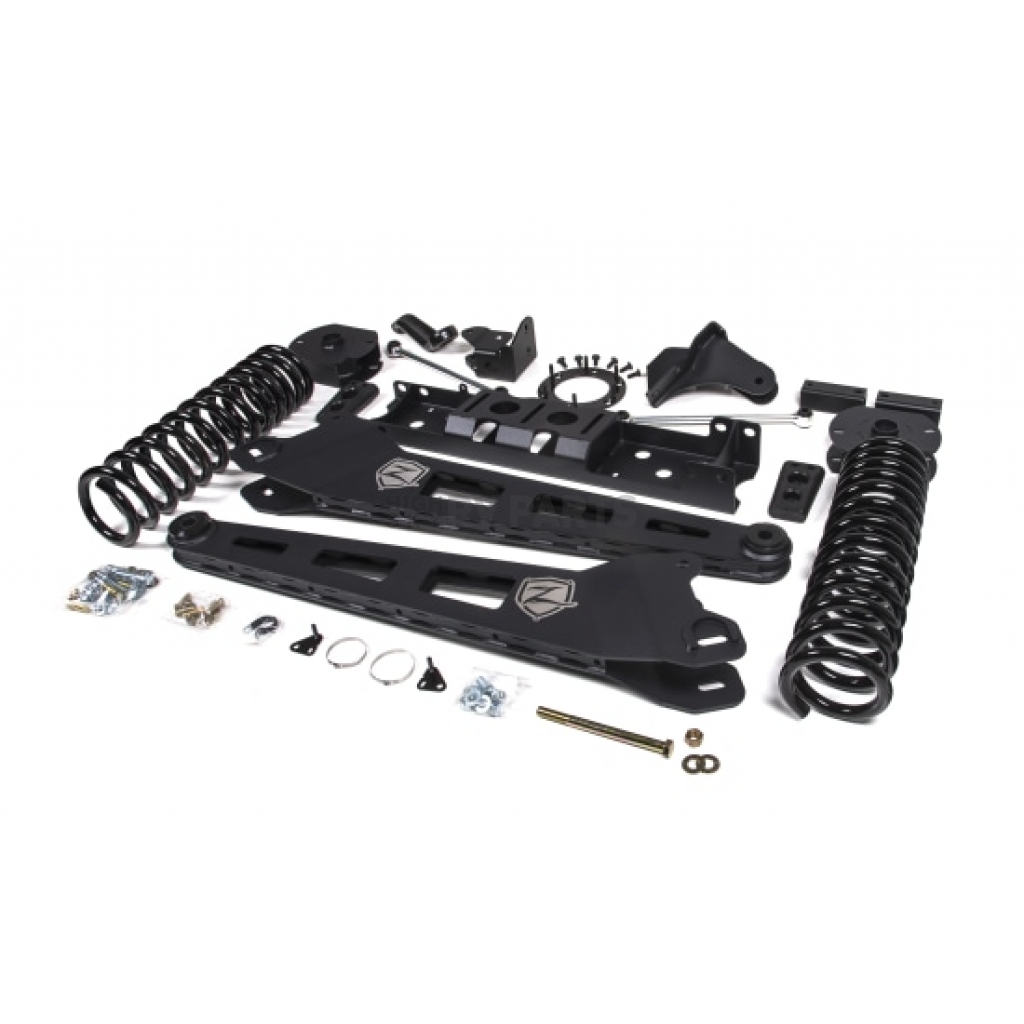

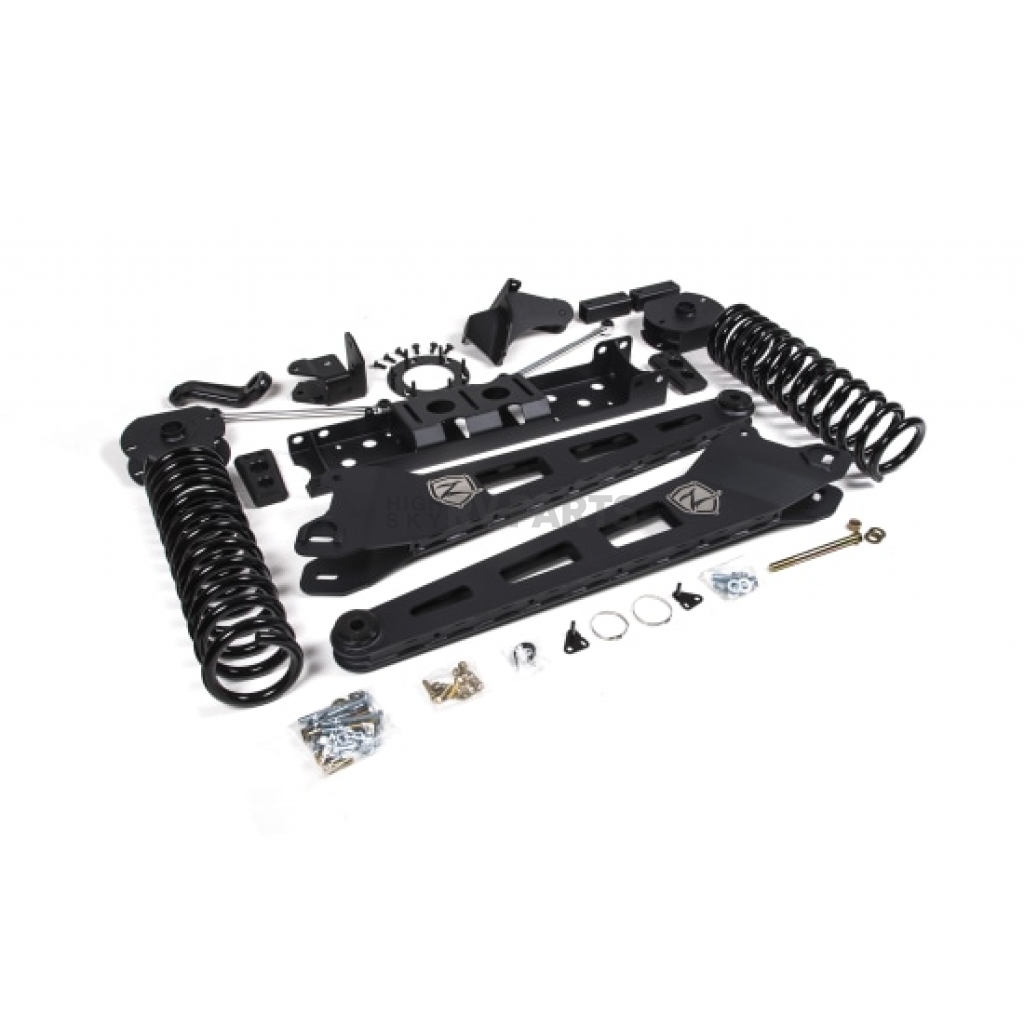

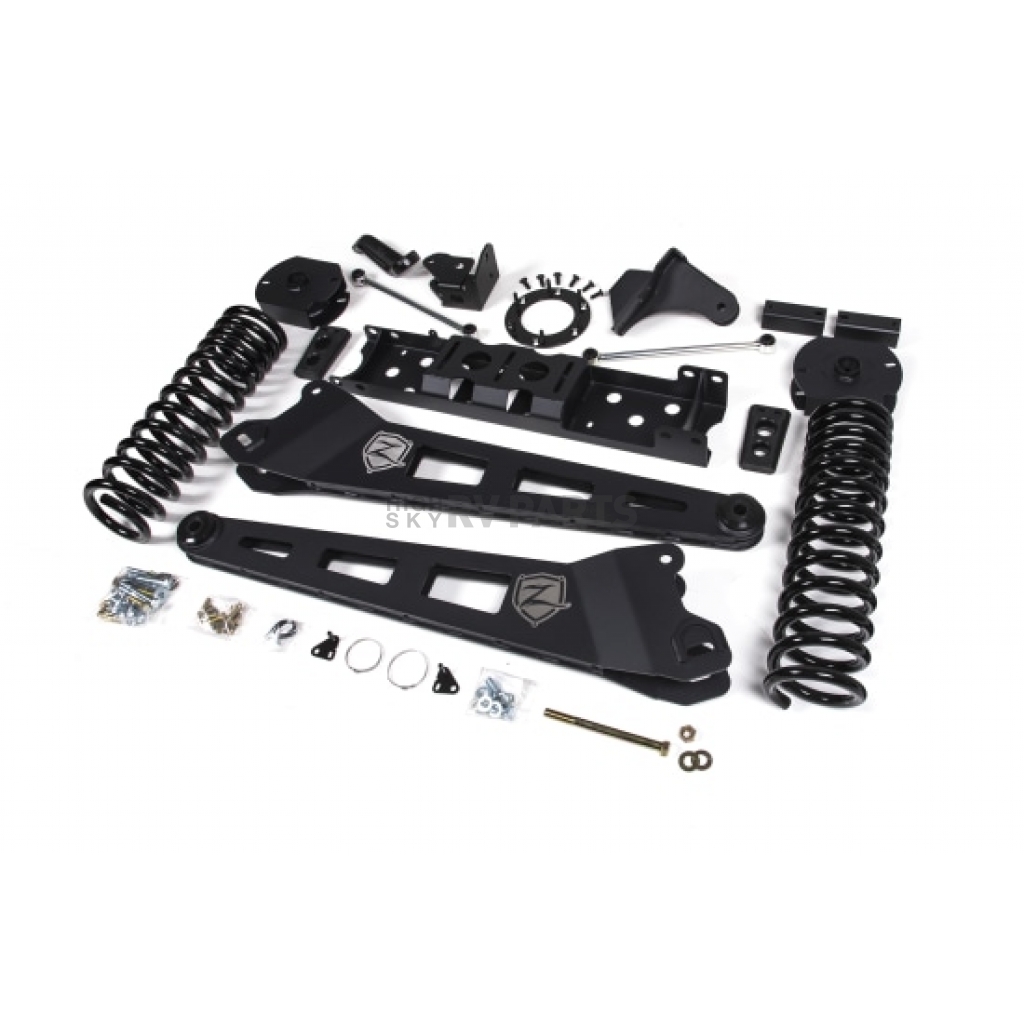

Lift Kit Suspension; 4-1/2 Inch Front Lift; 2-1/2 Inch Rear Lift; With Front And Rear Nitro Shock Absorbers In Kit; Black Components; With Coil Springs/ Coil Spring Spacers/ Radius Arms/ Crossmember/ Track Bar Brackets/ Indexing Ring/ Installation Hardware

MPN: ZOND78N

Up front, a pair of progressive rate, diesel-specific, 4 ½ Inch coil springs provides the extra height and smooth handling in the harshest of terrains. A forged drop pitman arm is supplied to correct steering angles, while a pair of sway bar drop brackets reposition the stock sway bar for optimal performance. Polyurethane bump stops limit up-travel, while brake line relocation brackets will allow your suspension to easily reach Inch full droop Inch. To correct the front suspension geometry at the new height, a pair of heavy-duty replacement radius arms is provided that bolt directly into the factory location. These new arms are massive upgrade to the factory stamped units, built from 1/4 Inch American made steel, and internally gusseted with a lower cam adjustment to dial in front end caster. A heavy-duty replacement transmission crossmember as well as a transfer case indexing ring repositions the front driveline output to allow use of the factory drivelines by correcting angles and allowing you to maintain use of 4WD. In the rear, 2 ½ Inch heavy-duty coil spacers are supplied to level out the stance and allow you to retain factory ride quality without effecting tow capacity. Extended rear sway bar end links and comes with new bump stops to compensate for the lift, and a track bar bracket re-centers the rear axle.

Features

• Heavy Duty 1/4 Inch Steel, Laser Cut, Internally Gusseted Radius Arms Improve Strength, Offer More Ground Clearance And Correct Caster
• High Strength Progressive Rate Front Coil Springs For A Great Ride On Any Terrain
• F/R HD Track Bar Relocation Brackets To Correctly Position Both Axles Under The Truck
• Forged Drop Pitman Arm To Correct Steering Angles
• F/R Sway Bar Correction To Maintain Handling Performance
• HD Transmission Crossmember And T-Case Indexing Ring To Correct Front Driveline Angles
• Allows Clearance For Up To 37 Inch Tires
• Zone Nitro Series Shock Absorber Offers Stock-Like Control And Performance With Fully Displaced Valving For Improved Compression And Extension Travel
• Limited Lifetime Warranty
