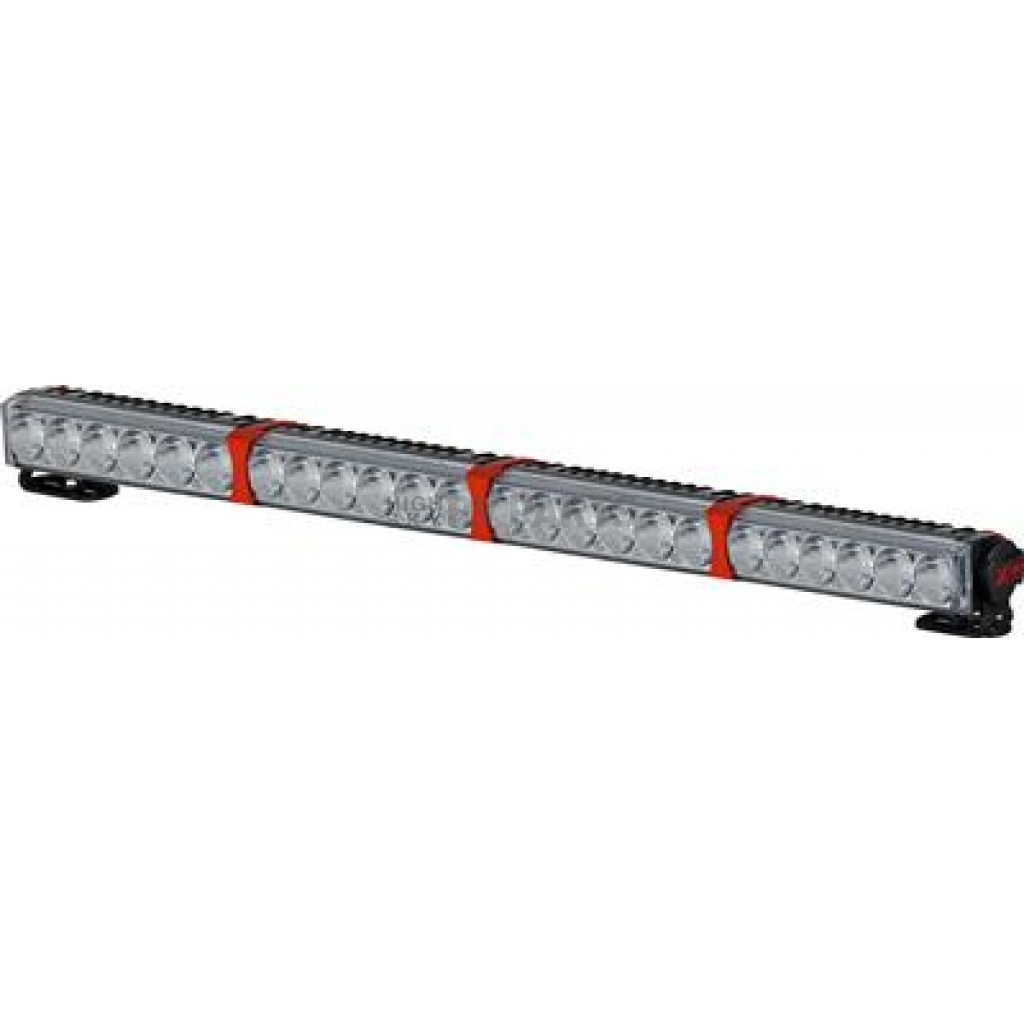

X-Ray Vision Light Bar LED 46-11/16 Inch Straight - DLX1203LED

Brand: X-Ray Vision

Have a product question? Ask us
Part Number: DLX1203LED
Part Location: U.S.
Availability: *Special Order
Delivery: 2 - 3 Weeks

Retail: $2,168.24

Price: $2,064.99

You Save: $103.25

Ampere Rating At 12 Volts

16.8 Amp

Beam Angle (Deg)

5X10 Degree

Beam Type

Spread Beam

Estimated Install Time (Hours)

Height (IN)

3-6/8 Inch

Housing Color

Black

Includes Mounting Hardware

Length (IN)

46-11/16 Inch

Lens Material

Polycarbonate

Light Color

White

Mounting Length (IN)

36.6 To 51 Inch

Share this page

X-Ray Vision Light Bar - LED

Light Bar - LED; Linear 1200 Series; 46-11/16 Inch Length; 240 Watt; 16.8 Amp At 12 To 30 Volt DC; 5x10 Degree Spread Beam; Twenty Four 10 Watt High Powered CREE White LED; Clear Polycarbonate Lens; Black Housing; Single With 3 Meter Quad-Core Cable; Quad-Optic Multiplexer Projection

MPN: DLX1203LED

Beam Type: Spread Beam

Beam Angle (Deg): 5X10 Degree

Type: Straight

Number of LEDs: 24

Number Of Rows: Single

Wattage: 240 Watt

Voltage Rating: 12 To 30 Volt

Ampere Rating At 12 Volts: 16.8 Amp

Length (IN): 46-11/16 Inch

Width (IN): 3-7/8 Inch

Height (IN): 3-6/8 Inch

Mounting Length (IN): 36.6 To 51 Inch

Light Color: White

Lens Material: Polycarbonate

Housing Color: Black

Mounting Style: Bracket Mount

Includes Mounting Hardware: Yes

Estimated Install Time (Hours): 1.5

Features

Quad-Optic Multiplexer Projection Technology
Die-Cast Alloy Housing With Large Vertical Fins, Providing Excellent Thermal Management And Maximum Light Output At Running Temperature
Available In True Driving Light 5 Degree X 10 Degree Flood Beam, And Dual-Beam Versions
High Powered 10 Watt LEDs
Dual-Beam Version Features Individual Spot And Flood Beam Switching
Unique Black Chrome Stainless Steel Twin-Axis Precision Adjustable And Reversible 360 Degree Mounting Brackets
50,000-Hour LED Running Life
Distinctive Integrated LED Position Light. Rated To IP67 To Resist Dust And Moisture
Virtually Unbreakable Hardened Polycarbonate Lens
Limited 3 Year Warranty

Specifications of X-Ray Vision Light Bar LED 46-11/16 Inch Straight - DLX1203LED
Ampere Rating At 12 Volts	16.8 Amp
Beam Angle (Deg)	5X10 Degree
Beam Type	Spread Beam
Estimated Install Time (Hours)	1.5
Height (IN)	3-6/8 Inch
Housing Color	Black
Includes Mounting Hardware	Yes
Length (IN)	46-11/16 Inch
Lens Material	Polycarbonate
Light Color	White
Mounting Length (IN)	36.6 To 51 Inch
Mounting Style	Bracket Mount
Number of LEDs	24
Number Of Rows	Single
Type	Straight
Voltage Rating	12 To 30 Volt
Wattage	240 Watt
Width (IN)	3-7/8 Inch
