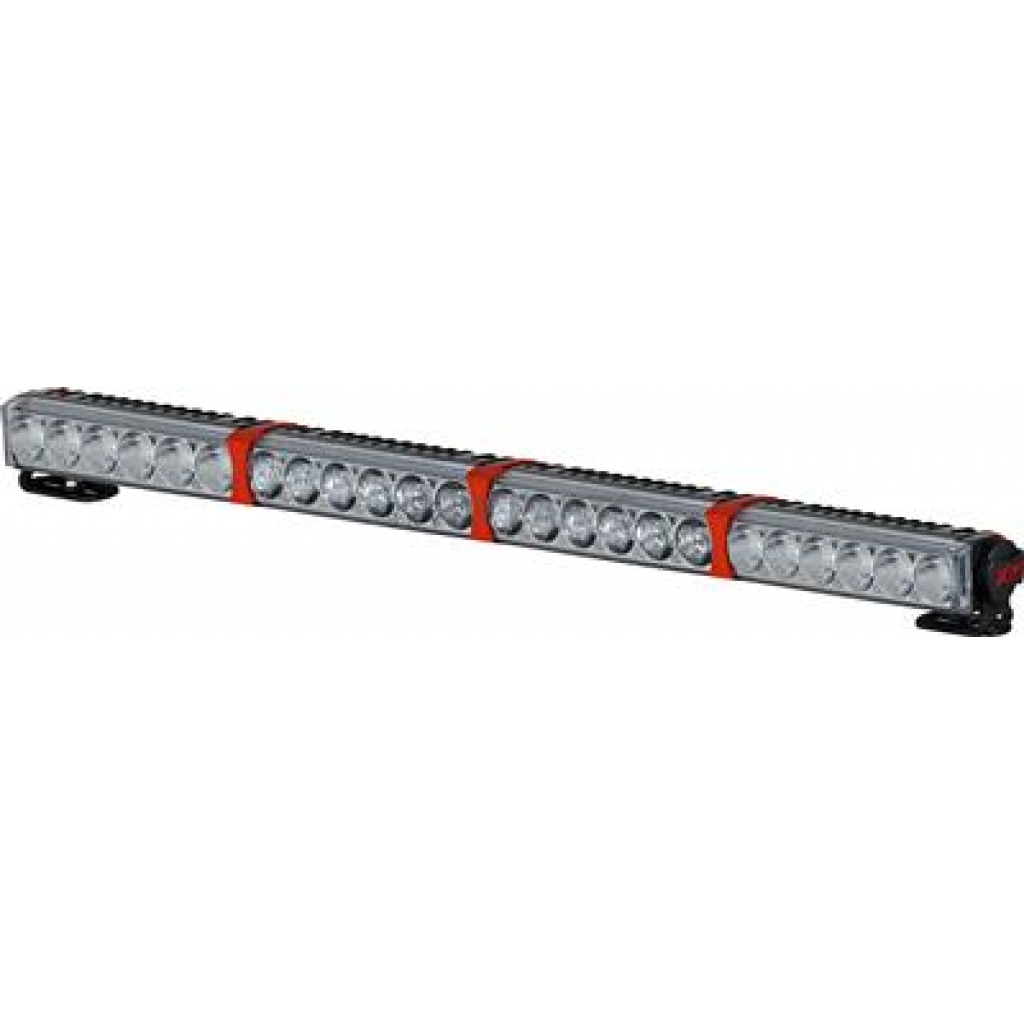

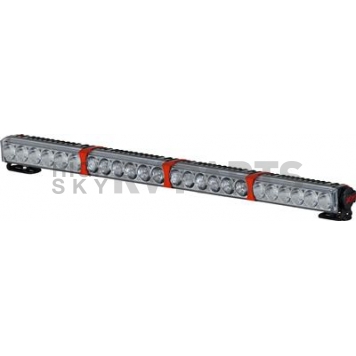

X-Ray Vision Light Bar LED 46-11/16 Inch Straight - DLX1201LED

Product cannot be returned
Brand: X-Ray Vision
0 reviews
  • Have a product question? Ask us
  • Part Number: DLX1201LED
  • Part Location: U.S.
  • Availability: Out Of Stock
Retail: $1,886.84
Price: $1,796.99
You Save: $89.85
Ampere Rating At 12 Volts
16.8 Amp
Beam Angle (Deg)
5X10 Degree
Beam Type
Combo Spread And Pencil Beam
Estimated Install Time (Hours)
1.5
Height (IN)
3-6/8 Inch
Housing Color
Black
Includes Mounting Hardware
Yes
Length (IN)
46-11/16 Inch
Lens Material
Polycarbonate
Light Color
White
Mounting Length (IN)
36.6 To 51 Inch
Share this page

X-Ray Vision Light Bar - LED

Light Bar - LED; Linear 1200 Series; 46-11/16 Inch Length; 240 Watt; 16.8 Amp At 12 To 30 Volt DC; Combo Spread And Pencil Beam; Twenty Four 10 Watt High Powered CREE White LED; Clear Polycarbonate Lens; Black Housing; Single With 3 Meter Quad-Core Cable; Quad-Optic Multiplexer Projection

MPN: DLX1201LED

Beam Type: Combo Spread And Pencil Beam
Beam Angle (Deg): 5X10 Degree
Type: Straight
Number of LEDs: 24
Number Of Rows: Single
Wattage: 240 Watt
Voltage Rating: 12 To 30 Volt
Ampere Rating At 12 Volts: 16.8 Amp
Length (IN): 46-11/16 Inch
Width (IN): 3-7/8 Inch
Height (IN): 3-6/8 Inch
Mounting Length (IN): 36.6 To 51 Inch
Light Color: White
Lens Material: Polycarbonate
Housing Color: Black
Mounting Style: Bracket Mount
Includes Mounting Hardware: Yes
Estimated Install Time (Hours): 1.5

Features

  • Quad-Optic Multiplexer Projection Technology
  • Die-Cast Alloy Housing With Large Vertical Fins, Providing Excellent Thermal Management And Maximum Light Output At Running Temperature
  • Available In True Driving Light 5 Degree X 10 Degree Flood Beam, And Dual-Beam Versions
  • High Powered 10 Watt LEDs
  • Dual-Beam Version Features Individual Spot And Flood Beam Switching
  • Unique Black Chrome Stainless Steel Twin-Axis Precision Adjustable And Reversible 360 Degree Mounting Brackets
  • 50,000-Hour LED Running Life
  • Distinctive Integrated LED Position Light. Rated To IP67 To Resist Dust And Moisture
  • Virtually Unbreakable Hardened Polycarbonate Lens
  • Limited 3 Year Warranty
Specifications of X-Ray Vision Light Bar LED 46-11/16 Inch Straight - DLX1201LED
Ampere Rating At 12 Volts 16.8 Amp
Beam Angle (Deg) 5X10 Degree
Beam Type Combo Spread And Pencil Beam
Estimated Install Time (Hours) 1.5
Height (IN) 3-6/8 Inch
Housing Color Black
Includes Mounting Hardware Yes
Length (IN) 46-11/16 Inch
Lens Material Polycarbonate
Light Color White
Mounting Length (IN) 36.6 To 51 Inch
Mounting Style Bracket Mount
Number of LEDs 24
Number Of Rows Single
Type Straight
Voltage Rating 12 To 30 Volt
Wattage 240 Watt
Width (IN) 3-7/8 Inch
