X-Ray Vision Light Bar LED 13-1/8 Inch Straight - DLM353LED
Ampere Rating At 12 Volts
2.5 Amp
Beam Angle (Deg)
5 Degree
Beam Type
Spread Beam
Estimated Install Time (Hours)
1.5
Height (IN)
2-3/4 Inch
Housing Color
Black
Includes Mounting Hardware
Yes
Length (IN)
13-1/8 Inch
Lens Material
Polycarbonate
Light Color
White
Mounting Style
Bracket Mount
Share this page

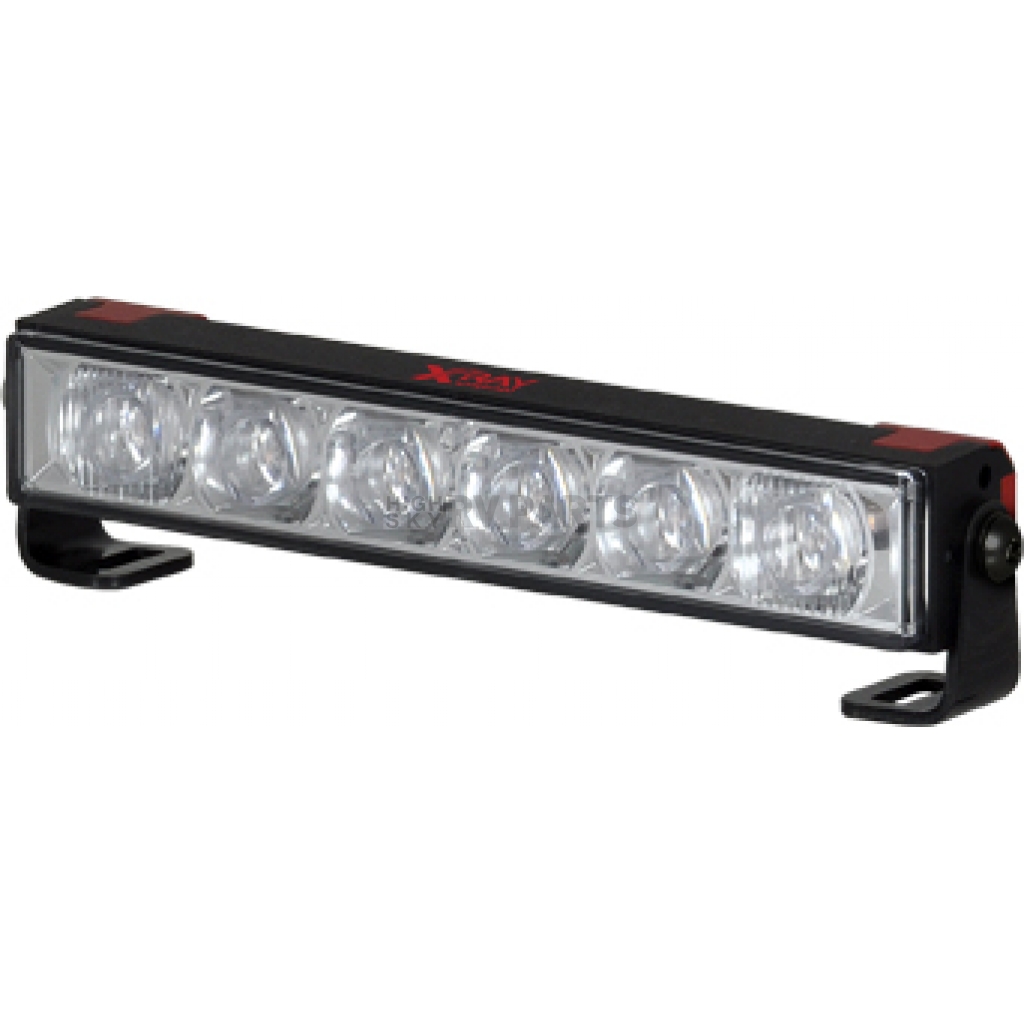

X-Ray Vision Light Bar - LED
Light Bar - LED; Slimline 350 Series; 13-1/8 Inch Length; 30 Watt; 2.5 Amp At 12 Volt DC; 5 Degree Spread Beam; Six 5 Watt High Powered White LED; Single Row; Clear Polycarbonate Lens; Black Housing; Single With Black Powder Coated Steel Mounting Bracket; Quad-Optic Multiplexer Projection
MPN: DLM353LED
Beam Type: Spread Beam
Beam Angle (Deg): 5 Degree
Type: Straight
Number of LEDs: 6
Number Of Rows: Single
Wattage: 30 Watt
Voltage Rating: 12 To 30 Volt
Ampere Rating At 12 Volts: 2.5 Amp
Length (IN): 13-1/8 Inch
Width (IN): 2-1/4 Inch
Height (IN): 2-3/4 Inch
Light Color: White
Lens Material: Polycarbonate
Housing Color: Black
Mounting Style: Bracket Mount
Includes Mounting Hardware: Yes
Estimated Install Time (Hours): 1.5
Features
- Quad-Optic LED Multiplexer Projection Technology
- Die-Cast Alloy Housing With Large Vertical Fins, Providing Excellent Thermal Management And Maximum Light Output At Running Temperature
- High Performance Computer Designed Multiplexer Projector, Optical Lens And Reflectors
- LEDs Rated At 50,000 Hour Running Life
- Rated To IP67 To Resist Dust And Moisture
- Six High Powered 5 Watt LEDs
- Virtually Unbreakable Hardened Polycarbonate Lens
- Limited 3 Year Warranty
Specifications of X-Ray Vision Light Bar LED 13-1/8 Inch Straight - DLM353LED | |
Ampere Rating At 12 Volts | 2.5 Amp |
Beam Angle (Deg) | 5 Degree |
Beam Type | Spread Beam |
Estimated Install Time (Hours) | 1.5 |
Height (IN) | 2-3/4 Inch |
Housing Color | Black |
Includes Mounting Hardware | Yes |
Length (IN) | 13-1/8 Inch |
Lens Material | Polycarbonate |
Light Color | White |
Mounting Style | Bracket Mount |
Number of LEDs | 6 |
Number Of Rows | Single |
Type | Straight |
Voltage Rating | 12 To 30 Volt |
Wattage | 30 Watt |
Width (IN) | 2-1/4 Inch |
