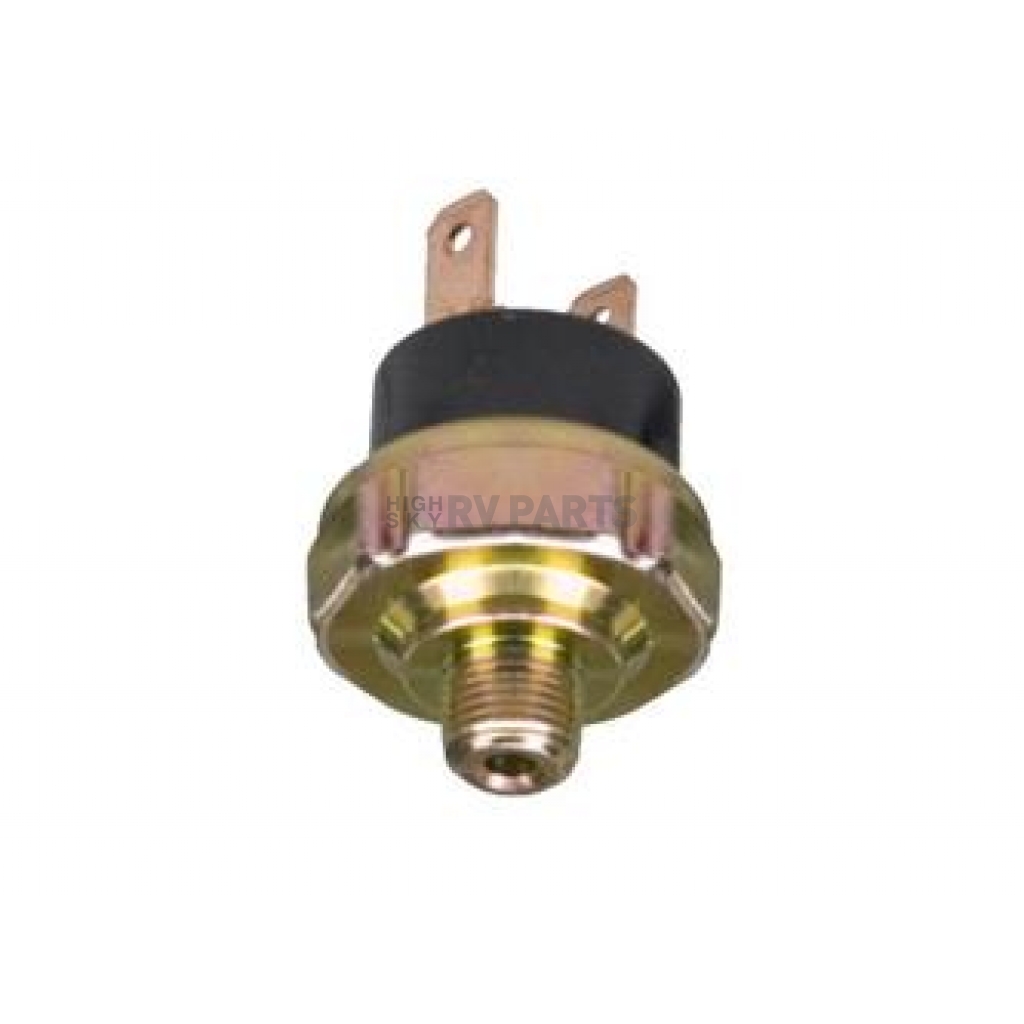

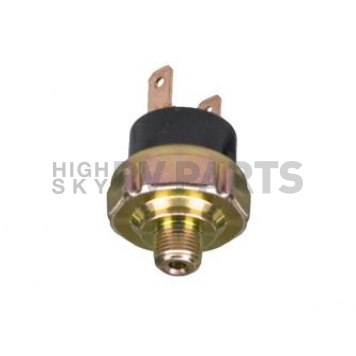

Wolo MFG Air Horn Compressor Pressure Switch PS-1
Connection Size
1/4 Inch NPT
Connection Type
Male Threads
Pressure Range (PSI)
80 To 110 Pounds Per Square Inch
Share this page
Wolo MFG Air Horn Compressor Pressure Switch
Air Horn Compressor Pressure Switch; 80-110 Pounds Per Square Inch (PSI); 1/4 Inch Pipe Thread
MPN: PS-1
High pressure switch is specifically designed for Wolo’s high pressure on-board air systems, and is compatible for wide variety of other manufactures on-board air systems. The switch is factory preset to turn on the compressor when tank pressure is below 80 PSI and turn off the compressor when the tank pressure is 110 PSI, with a tolerance of ± 10 Percent (pressure turn on/off pressure range is not adjustable). Rated to operate reliably up to 25 Ampere an is built to be compact in size, connects with standard 1/4 Inch push-on terminals.
Pressure Range (PSI): 80 To 110 Pounds Per Square Inch
Connection Type: Male Threads
Connection Size: 1/4 Inch NPT
Features
- Designed For Wolo’s High Pressure On-Board Air Systems
- Factory Preset To Turn On The Compressor When Tank Pressure Is Below 80 PSI And Turn Off The Compressor When The Tank Pressure Is 110 PSI
- Tolerance Of ± 10 Percent (Pressure Turn On/Off Pressure Range Is Not Adjustable)
- Rated To Operate Reliably Up To 25 Ampere An Is Built To Be Compact In Size, Connects With Standard 1/4 Inch Push-On Terminals
- Limited 3 Month Warranty
| Specifications of Wolo MFG Air Horn Compressor Pressure Switch PS-1 | |
| Connection Size | 1/4 Inch NPT |
| Connection Type | Male Threads |
| Pressure Range (PSI) | 80 To 110 Pounds Per Square Inch |
