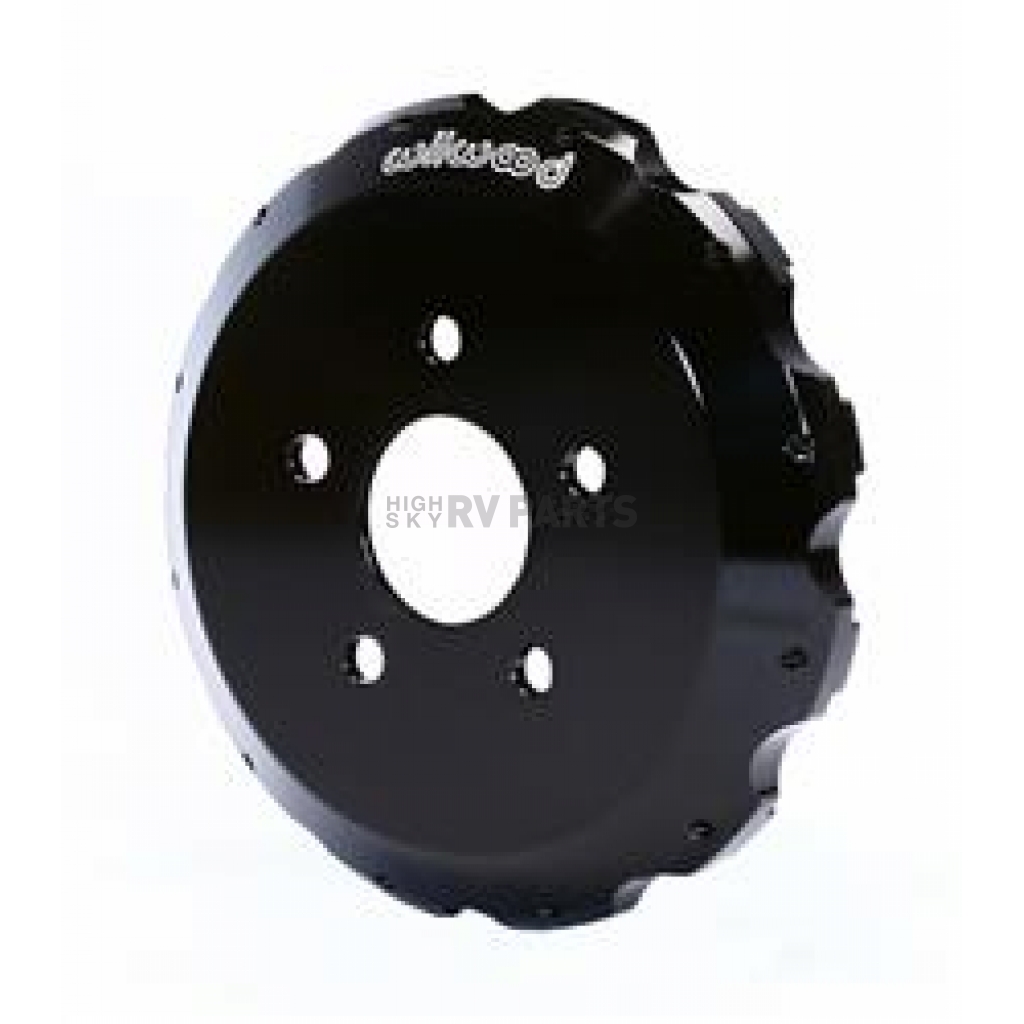

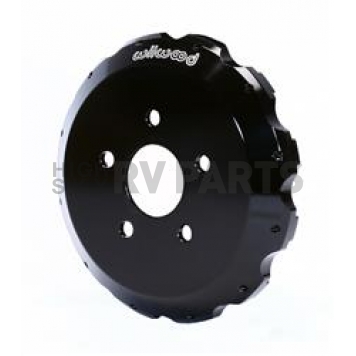

Wilwood Brakes Brake Rotor Hat - 170-10753

Brand: Wilwood Brakes

Have a product question? Ask us
Part Number: 170-10753
Part Location: U.S.
Availability: *Special Order
Delivery: 2 - 3 Weeks

Retail: $223.64

Price: $212.99

You Save: $10.65

Color

Black

Compatibility

C-10 CCP Spindle

Finish

Electro Coated

Hat Inside Diameter

6.85 Inch

Hat Offset

1.62 Inch

Hub Size Diameter

3.06 Inch

Includes Mounting Hardware

Material

Aluminum

Quantity

Single

Rotor Bolt Circle

12 X 8.75 Inch

Wheel Stud Circle

5 X 5 Inch

Share this page

Wilwood Brakes Brake Rotor Hat

Brake Rotor Hat; GT; 12 X 8.75 Inch Rotor To Hat Bolt Circle; 1.62 Inch Hat Offset; 5 X 5.00 Inch Bolt Circle; 3.06 Inch Hub Size; 6.85 Inch Hat Inside Diameter; Black Electro Coated Aluminum; Single

MPN: 17010753

GT Series Big Brake Flared Bell hats are precision machined from premium aluminum alloys for high strength and attention to minimized weight. Hats in this category feature threaded rotor mount holes for use with standard through-hole mount rotors. Threaded hole hats may also be used with T-Nuts or bobbins designed for use with specially machined slotted hole dynamic mount rotors. When used in conjunction with matched Wilwood rotor hardware kits, GT hats provide solid, reliable performance in the most demanding conditions. Flared Bell Hats are generally used with rotor mount bolt circles of 8.38 Inch and larger. Offsets range from 1.88 Inch to 3.00 Inch for rotor diameters 12.19 Inch and up.

Compatibility: C-10 CCP Spindle

Rotor Bolt Circle: 12 X 8.75 Inch

Hat Offset: 1.62 Inch

Wheel Stud Circle: 5 X 5 Inch

Hub Size Diameter: 3.06 Inch

Hat Inside Diameter: 6.85 Inch

Finish: Electro Coated

Color: Black

Material: Aluminum

Includes Mounting Hardware: No

Quantity: Single

Features

Precision Machined From Premium Aluminum Alloys For High Strength And Attention To Minimized Weight
Flared Bell Hats Are Generally Used With Rotor Mount Bolt Circles Of 8.38 Inch And Larger
Offsets Range From 1.88 Inch To 3.00 Inch For Rotor Diameters 12.19 Inch And Up
No Supplier Warranty

Specifications of Wilwood Brakes Brake Rotor Hat - 170-10753
Color	Black
Compatibility	C-10 CCP Spindle
Finish	Electro Coated
Hat Inside Diameter	6.85 Inch
Hat Offset	1.62 Inch
Hub Size Diameter	3.06 Inch
Includes Mounting Hardware	No
Material	Aluminum
Quantity	Single
Rotor Bolt Circle	12 X 8.75 Inch
Wheel Stud Circle	5 X 5 Inch
