Wilwood Brakes Brake Rotor - 160-1601
Design
1-Piece
Disc To Hat Bolt Circle (IN)
No Hat
Disc To Hat Bolt Circle (MM)
No Hat
Disc Type
Drilled
Finish
Black Oxide
Material
Steel
Nominal Thickness (IN)
0.35 Inch
Nominal Thickness (MM)
8.89 Millimeter
Outer Diameter (IN)
11.44 Inch
Outer Diameter (MM)
290.57 Millimeter
Quantity
Single
Share this page

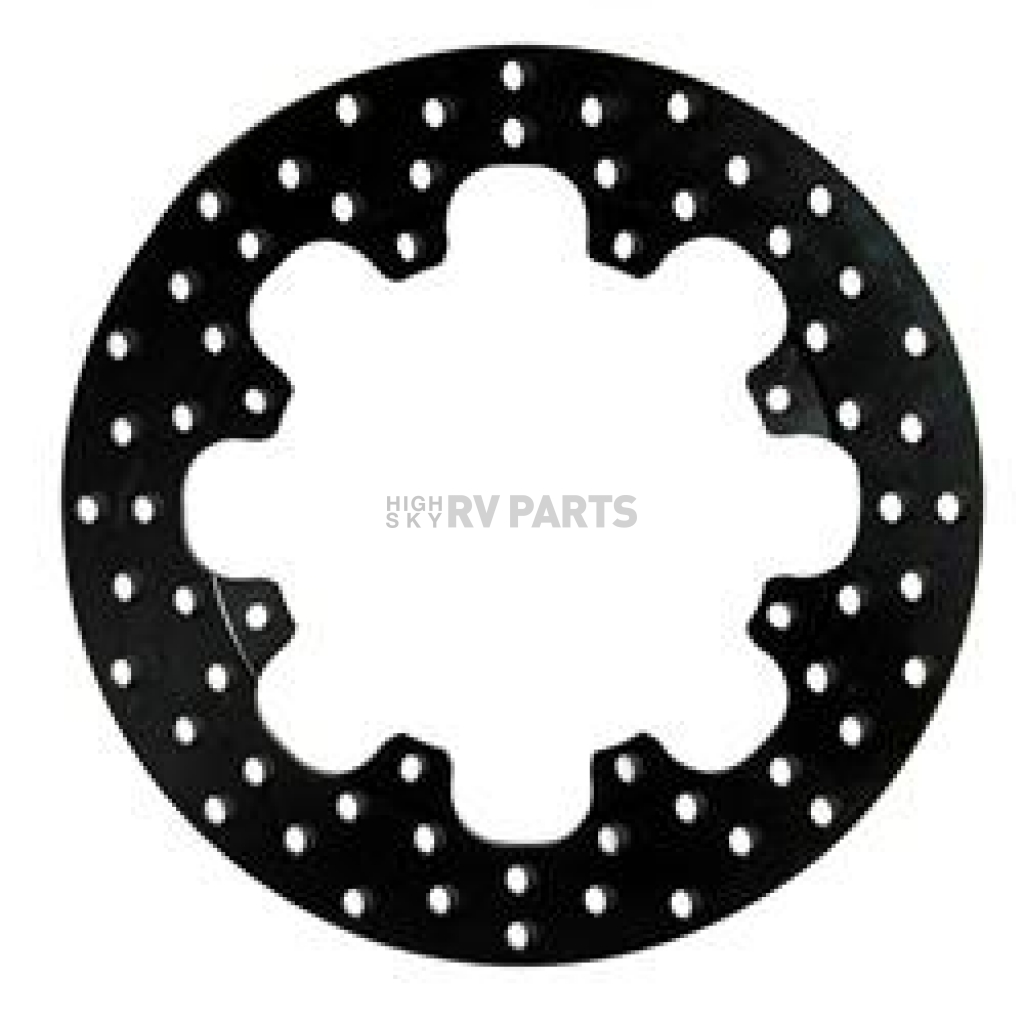

Wilwood Brakes Brake Rotor
Brake Rotor; Drilled; 2 Piece without Hat; Rotor To Hat Bolt Pattern 8 X 7.00 Inches; 11.44 x 0.35 Inch Diameter; Black Oxide Steel; Single
MPN: 1601601
Steel rotors have applications in all types of motorsports. Steel rotors provide a durable lightweight option in applications where sustained temperatures remain in the low to moderate range, and high heat spikes are only observed on an intermittent basis. This could be anything from a hard stopping drag race car at the end of a quarter mile, or a high speed stock car coming in from a qualifier at a super speedway. Steel rotors can also be found in lighter weight open wheel cars such as sprints and modifieds, and a variety of light weight, open wheel road course racers. A special alloy and proprietary manufacturing processes give these rotors high resistance to thermal distortion with excellent friction and wear characteristics against the pads. Each rotor size is available in the standard solid plate style, or weight drilled for lighter duty applications
Recommended Use: Racing
Design: 1-Piece
Disc Type: Drilled
Finish: Black Oxide
Material: Steel
Outer Diameter (IN): 11.44 Inch
Outer Diameter (MM): 290.57 Millimeter
Nominal Thickness (IN): 0.35 Inch
Nominal Thickness (MM): 8.89 Millimeter
Disc To Hat Bolt Circle (IN): No Hat
Disc To Hat Bolt Circle (MM): No Hat
Quantity: Single
Features
- Steel Rotors Provide A Durable Lightweight Option In Applications Where Sustained Temperatures Remain In The Low To Moderate Range, And High Heat Spikes Are Only Observed On An Intermittent Basis
- These Rotors High Resistance To Thermal Distortion With Excellent Friction And Wear Characteristics Against The Pads
- These Rotors Are Most Often Directly Mounted To "Fixed" Mount Hats Or Mounting Plates
- No Supplier Warranty
Specifications of Wilwood Brakes Brake Rotor - 160-1601 | |
Design | 1-Piece |
Disc To Hat Bolt Circle (IN) | No Hat |
Disc To Hat Bolt Circle (MM) | No Hat |
Disc Type | Drilled |
Finish | Black Oxide |
Material | Steel |
Nominal Thickness (IN) | 0.35 Inch |
Nominal Thickness (MM) | 8.89 Millimeter |
Outer Diameter (IN) | 11.44 Inch |
Outer Diameter (MM) | 290.57 Millimeter |
Quantity | Single |
Recommended Use | Racing |
