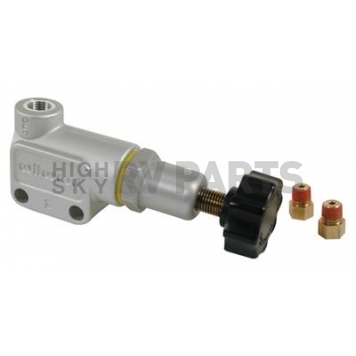

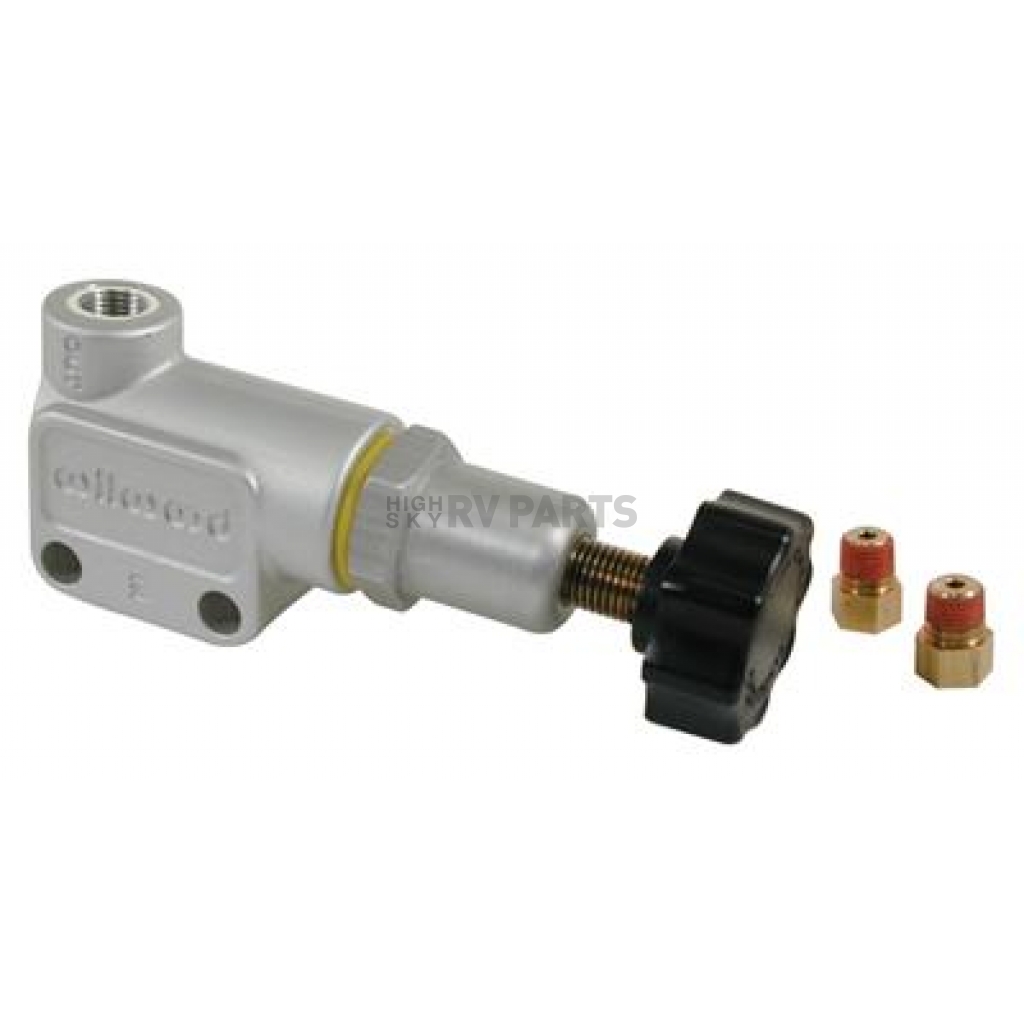

Wilwood Brakes Brake Proportioning Valve - 260-8419

Brand: Wilwood Brakes
0 reviews
  • Have a product question? Ask us
  • Part Number: 260-8419
  • Part Location: U.S.
  • Availability: 70 In Stock
  • Delivery: Ships Out in 1 - 2 Business Days
  • If purchased before 12:00 EDT - estimated delivery by July 07
Retail: $54.59
Price: $51.99
You Save: $2.60
Adjustment Style
Adjustable Knob Type
Color
Silver
Finish
Anodized
Inlet Attachment
Female Threads
Inlet Quantity
1
Inlet Size
1/8 Inch-27
Material
Aluminum/ Steel
Maximum Pressure
1500 Pounds Per Square Inch
Outlet Attachment
Female Threads
Outlet Quantity
1
Outlet Size
1/8 Inch-27
Share this page

Wilwood Brakes Brake Proportioning Valve

Brake Proportioning Valve; Adjustable Knob Type; 1/8-27 Inch NPT Inlet/ 3/8-24 Inch IF Inlet Fitting And 1/8-27 Inch NPT Outlet/ 3/8-24 Inch IF Outlet Fitting; 1500 PSI Max Pressure

MPN: 2608419

Valve features an adjustable knee point from 100 to 1000 PSI. The proportioning rate is 57 Percent from the desired knee point onward. Adjuster knob with fine thread tuning provides precise adjustment. This adjustment lets you fine tune the front to rear braking balance by proportionally decreasing the rear brake line pressure. Valve weighs only 5.2 Ounces and has two 0.25 Inch side mounting holes spaced 1.00 Inch apart.
Adjustment Style: Adjustable Knob Type
Maximum Pressure: 1500 Pounds Per Square Inch
Inlet Quantity: 1
Inlet Attachment: Female Threads
Inlet Size: 1/8 Inch-27
Outlet Quantity: 1
Outlet Attachment: Female Threads
Outlet Size: 1/8 Inch-27
Finish: Anodized
Color: Silver
Material: Aluminum/ Steel

Features

  • Features An Adjustable Knee Point From 100 To 1000 PSI
  • The Proportioning Rate Is 57 Percent From The Desired Knee Point Onward
  • Adjuster Knob With Fine Thread Tuning Provides Precise Adjustment
  • This Adjustment Lets You Fine Tune The Front To Rear Braking Balance By Proportionally Decreasing The Rear Brake Line Pressure
  • No Supplier Warranty
Specifications of Wilwood Brakes Brake Proportioning Valve - 260-8419
Adjustment Style Adjustable Knob Type
Color Silver
Finish Anodized
Inlet Attachment Female Threads
Inlet Quantity 1
Inlet Size 1/8 Inch-27
Material Aluminum/ Steel
Maximum Pressure 1500 Pounds Per Square Inch
Outlet Attachment Female Threads
Outlet Quantity 1
Outlet Size 1/8 Inch-27
