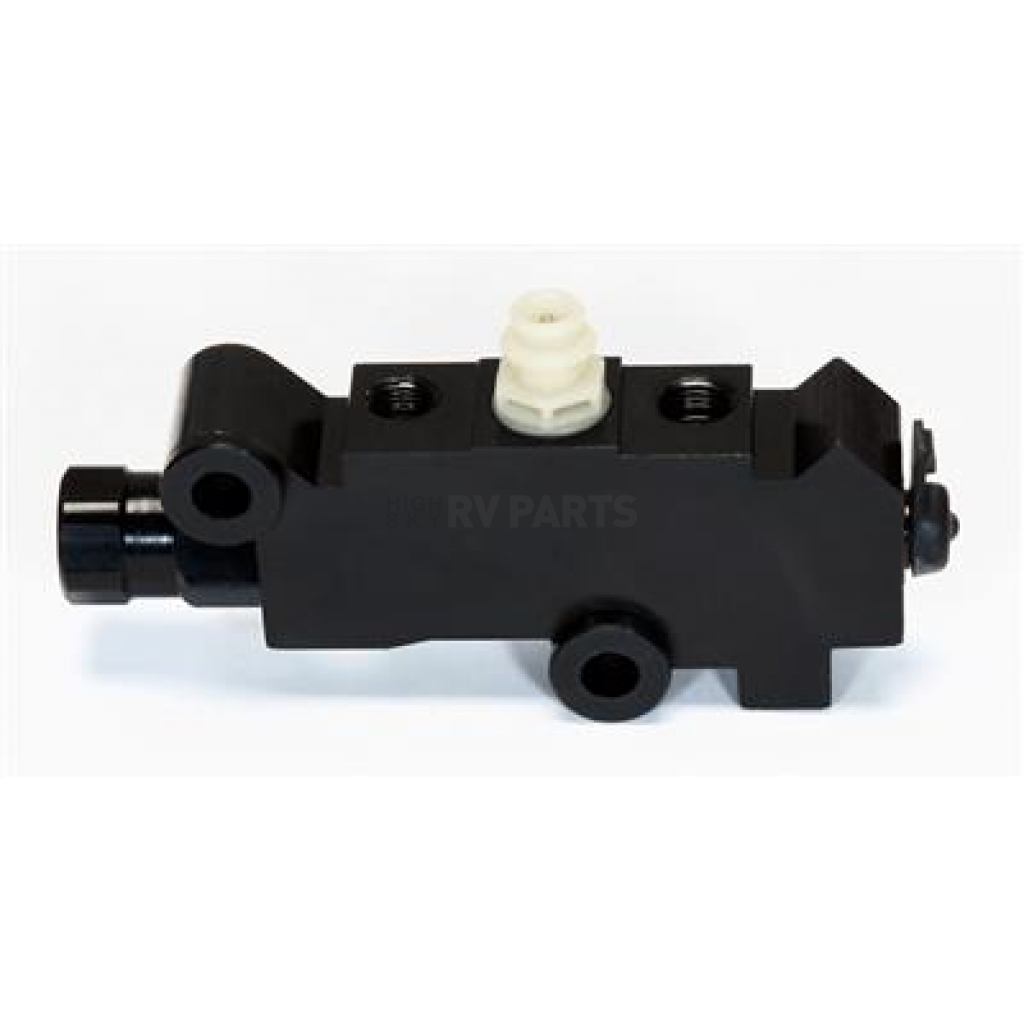

Wilwood Brakes Brake Proportioning Valve - 260-11322

Brand: Wilwood Brakes
0 reviews
  • Have a product question? Ask us
  • Part Number: 260-11322
  • Part Location: U.S.
  • Availability: 24 In Stock
  • Delivery: Ships Out in 1 - 2 Business Days
  • If purchased before 12:00 EDT - estimated delivery by June 12
Retail: $133.28
Price: $126.93
You Save: $6.35
Adjustment Style
Non-Adjustable
Color
Black
Finish
Electro Coated
Inlet Attachment
Female Threads
Inlet Quantity
2
Inlet Size
1/2 Inch-20/ 7/16 Inch-24
Material
Aluminum
Maximum Pressure
1500 Pounds Per Square Inch
Outlet Attachment
Female Threads
Outlet Quantity
2
Outlet Size
3/8 Inch-24/ 9/16 Inch-18
Share this page

Wilwood Brakes Brake Proportioning Valve

Brake Proportioning Valve; Non-Adjustable; 1/2-20 Inch Inlet One and 7/16-24 Inch Inlet Two/ 3/8-24 Inch IF Outlet One and 9/16-18 Inch IF Outlet Two; 1500 PSI Max Pressure; Aluminum; Black

MPN: 26011322

Wilwood's GM style proportioning valve is a direct replacement for 1978 and newer GM style vehicles equipped with front disc/rear drum brakes. Line connections for the valve, if mounted in the OE location, will allow the original lines to connect directly to the valve. If mounted in a non-OE location, fluid lines may have to be modified. This also does allow usage in other non-GM vehicles
Adjustment Style: Non-Adjustable
Maximum Pressure: 1500 Pounds Per Square Inch
Inlet Quantity: 2
Inlet Attachment: Female Threads
Inlet Size: 1/2 Inch-20/ 7/16 Inch-24
Outlet Quantity: 2
Outlet Attachment: Female Threads
Outlet Size: 3/8 Inch-24/ 9/16 Inch-18
Finish: Electro Coated
Color: Black
Material: Aluminum

Features

  • 63 Percent Pressure Reduction (Rear) After The Fixed 350 PSI Knee Point
  • 30 PSI Front Circuit Delay And Circuit Failure Sender Activation At 50 PSI
  • Maximum Operating Pressure Is 2000 PSI
  • Non-Adjustable Front-To-Rear Proportioning
  • Anti-Dive Or Metering Delay Valve, Enables Rear Brake Pressure To Build Momentarily Before Front Brake Pressure Builds
  • No Supplier Warranty
Specifications of Wilwood Brakes Brake Proportioning Valve - 260-11322
Adjustment Style Non-Adjustable
Color Black
Finish Electro Coated
Inlet Attachment Female Threads
Inlet Quantity 2
Inlet Size 1/2 Inch-20/ 7/16 Inch-24
Material Aluminum
Maximum Pressure 1500 Pounds Per Square Inch
Outlet Attachment Female Threads
Outlet Quantity 2
Outlet Size 3/8 Inch-24/ 9/16 Inch-18
