Wilwood Brakes Brake Master Cylinder - 261-13270-BK
Bore Diameter
1-1/8 Inch
Color
Black
Condition
New
Finish
Electro Coated
Includes Reservoir
Yes
Material
Aluminum
Port Size
1/2 Inch-20
Share this page

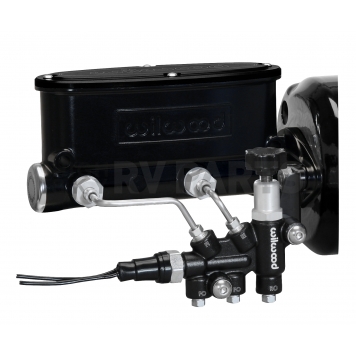

Wilwood Brakes Brake Master Cylinder
Brake Master Cylinder; Tandem; Integral Reservoir; 1-1/8 Inch Bore Size; Two 1/2-20 Inch Outlet Ports; Black; Aluminum; With Bracket/ Proportioning Valve/ Mounting Hardware
MPN: 26113270BK

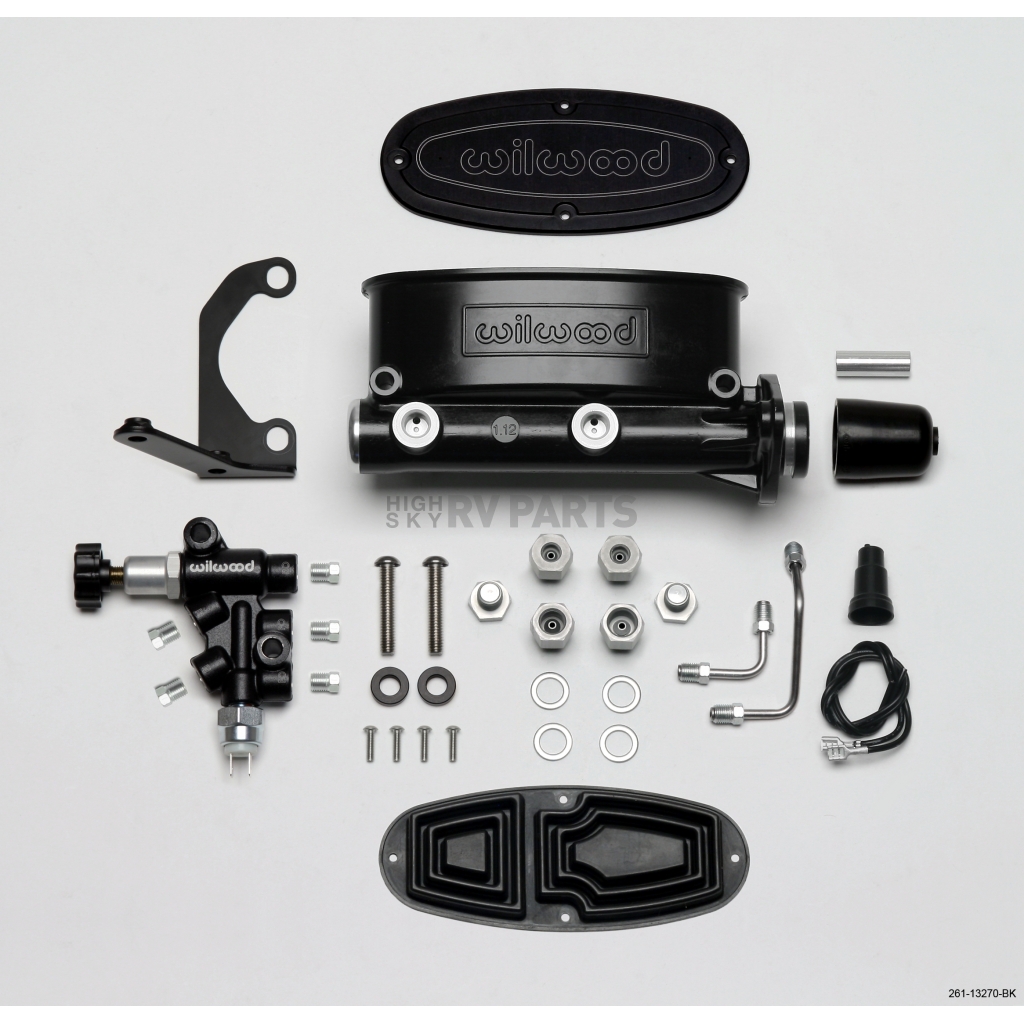

Wilwood has packaged the popular Aluminum Tandem Chamber Master Cylinder with the Combination Proportioning Valve, mounting bracket, fluid tubes and mounting hardware in a kit. Tandem Master Cylinder represents the latest in refinements in brake pressure actuation and fluid control. The slotted flange mounting makes it a simple bolt on for many OE mounts including the popular Chrysler, Corvette, GM, and Ford Mustang bolt patterns and is compatible with manual or power brake system applications. Master cylinders are available in three bores sizes, 7/8 Inch, 1 Inch or 1-1/8 Inch, and three finishes, standard, ball burnished or black E-coat. The combination proportioning valve substantially simplifies wiring and brake proportioning adjustments on vehicles with custom brake systems. The combination block maintains full isolation between front and rear fluid circuits and is specifically designed to accompany the Tandem Chamber Master Cylinder. The combo valve and bracket are black E-coated for a performance look and long lasting durability. Stainless steel fluid tubes are precision bent with preinstalled stainless tube nuts for a simple bolt-on installation between the Combination Proportioning Valve and the Wilwood Tandem Master Cylinder. Stainless steel button head fasteners thread into the bracket for a simple installation and years of durable, rust-free performance. Simply connect the fluid lines, bleed the system, and you're finished.
Condition: New
Bore Diameter: 1-1/8 Inch
Port Size: 1/2 Inch-20
Finish: Electro Coated
Color: Black
Material: Aluminum
Includes Reservoir: Yes
Features
- Represents The Latest In Refinements In Brake Pressure Actuation And Fluid Control
- Combination Proportioning Valve Substantially Simplifies Wiring And Brake Proportioning Adjustments On Vehicles With Custom Brake Systems
- No Supplier Warranty
Specifications of Wilwood Brakes Brake Master Cylinder - 261-13270-BK | |
Bore Diameter | 1-1/8 Inch |
Color | Black |
Condition | New |
Finish | Electro Coated |
Includes Reservoir | Yes |
Material | Aluminum |
Port Size | 1/2 Inch-20 |
