Wilwood Brakes Brake Master Cylinder - 260-6765
Bore Diameter
7/8 Inch
Color
Silver
Condition
New
Finish
Bare
Includes Reservoir
Yes
Material
Aluminum
Port Size
1/8 Inch-27 NPT
Share this page

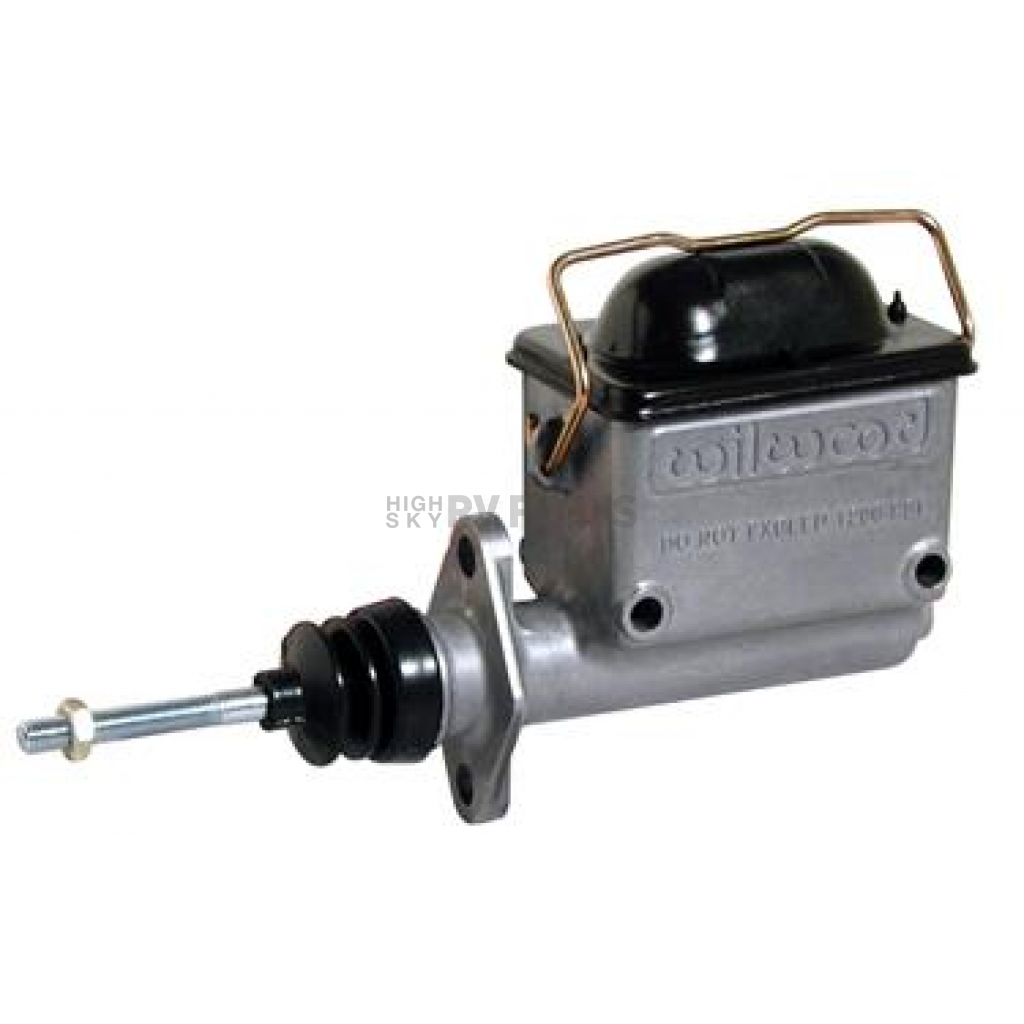

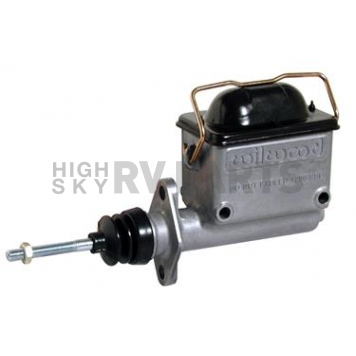

Wilwood Brakes Brake Master Cylinder
Brake Master Cylinder; Compact; Integral Reservoir; 7/8 Inch Bore Size; Single 3/8-24 Inch Outlet Port; Bare; Aluminum
MPN: 2606765
Wilwood High-Volume Aluminum Master feature high pressure die-cast bodies from high-grade aluminum. Wilwood High-Volume Master Cylinders have the highest fluid capacity of any integral reservoir design. With a total capacity of 8.2 Ounces, there is at least 26 Percent more fluid volume than other brands. With 1-7/16 Inch of piston travel, it offers extra margin when used with large piston calipers. Heavy duty internal springs provide fast retraction. Formed steel lids with bellows type gaskets keep the moisture out. Wilwood master cylinders use common dimensions for flange or side mounting and a 1/8-27 NPT outlet port
Condition: New
Bore Diameter: 7/8 Inch
Port Size: 1/8 Inch-27 NPT
Finish: Bare
Color: Silver
Material: Aluminum
Includes Reservoir: Yes
Features
- Feature High Pressure Die-Cast Bodies From High-Grade Aluminum
- Highest Fluid Capacity Of Any Integral Reservoir Design
- With A Total Capacity Of 8.2 Ounces, There Is At Least 26 Percent More Fluid Volume
- With 1-7/16 Inch Of Piston Travel, It Offers Extra Margin When Used With Large Piston Calipers
- Heavy Duty Internal Springs Provide Fast Retraction
- Formed Steel Lids With Bellows Type Gaskets Keep The Moisture Out
- No Supplier Warranty
Specifications of Wilwood Brakes Brake Master Cylinder - 260-6765 | |
Bore Diameter | 7/8 Inch |
Color | Silver |
Condition | New |
Finish | Bare |
Includes Reservoir | Yes |
Material | Aluminum |
Port Size | 1/8 Inch-27 NPT |
