Wilwood Brakes Brake Master Cylinder - 260-15096
Bore Diameter
5/8 Inch
Color
Black
Finish
E-Coated
Includes Reservoir
Yes
Material
Aluminum
Port Size
3/8 Inch-24 Inch
Share this page

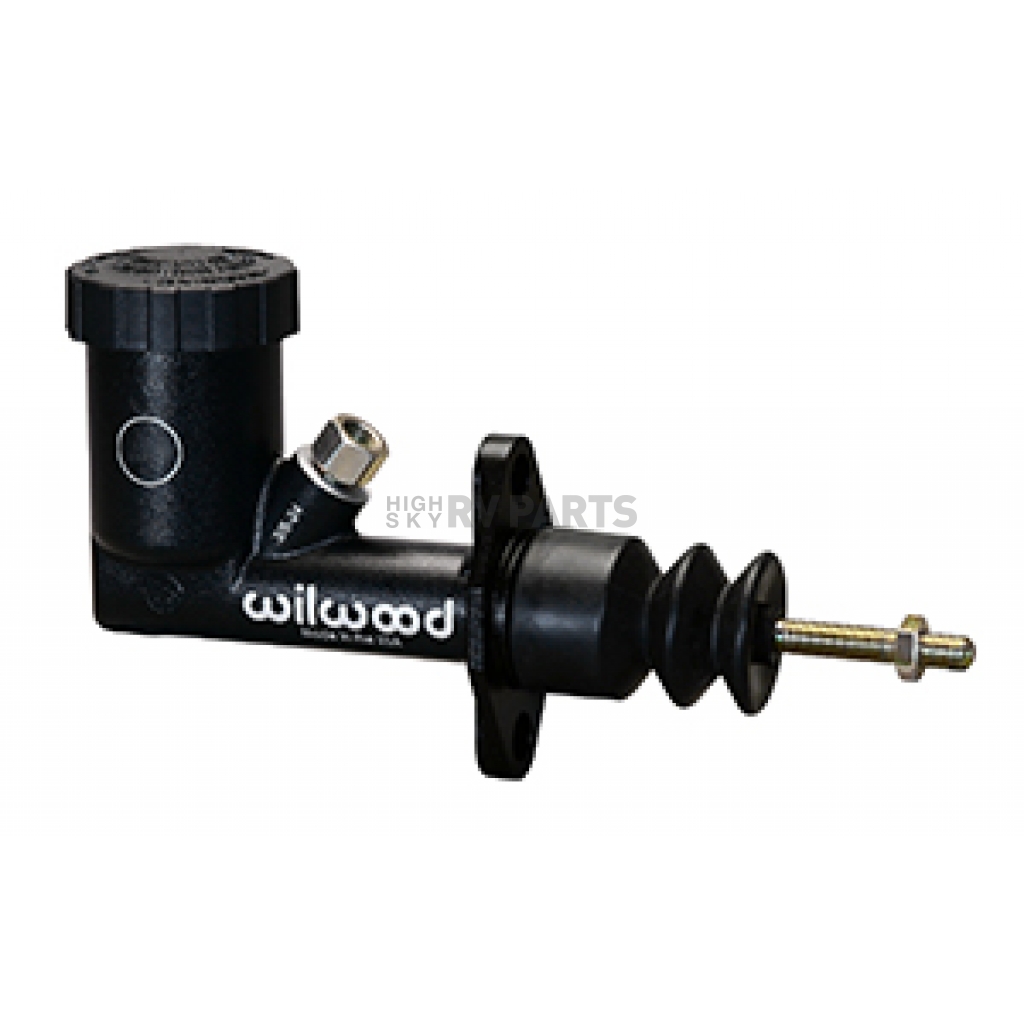

Wilwood Brakes Brake Master Cylinder
Brake Master Cylinder; Compact; Integral Reservoir; 5/8 Inch Bore Size; Single 3/8-24 Inch Outlet Port; E-Coated Black Aluminum
MPN: 26015096
Wilwood’s new GS Compact Integral Master Cylinders are an all new rebuildable design featuring a high pressure die cast aluminum body with a protective e-coat finish. Integral cylinders feature a positive seal internal bellows cap. Internally, a refined return spring and piston assembly assures positive pressure control along with a quick and complete release.
Bore Diameter: 5/8 Inch
Port Size: 3/8 Inch-24 Inch
Finish: E-Coated
Color: Black
Material: Aluminum
Includes Reservoir: Yes
Features
- Features High Pressure Die Cast Aluminum Body With Protective E-Coat Finish
- Features Positive Seal Internal Bellows Cap
- Refined Return Spring And Piston Assembly Assures Positive Pressure Control Along With A Quick And Complete Release
- No Supplier Warranty
Specifications of Wilwood Brakes Brake Master Cylinder - 260-15096 | |
Bore Diameter | 5/8 Inch |
Color | Black |
Finish | E-Coated |
Includes Reservoir | Yes |
Material | Aluminum |
Port Size | 3/8 Inch-24 Inch |
