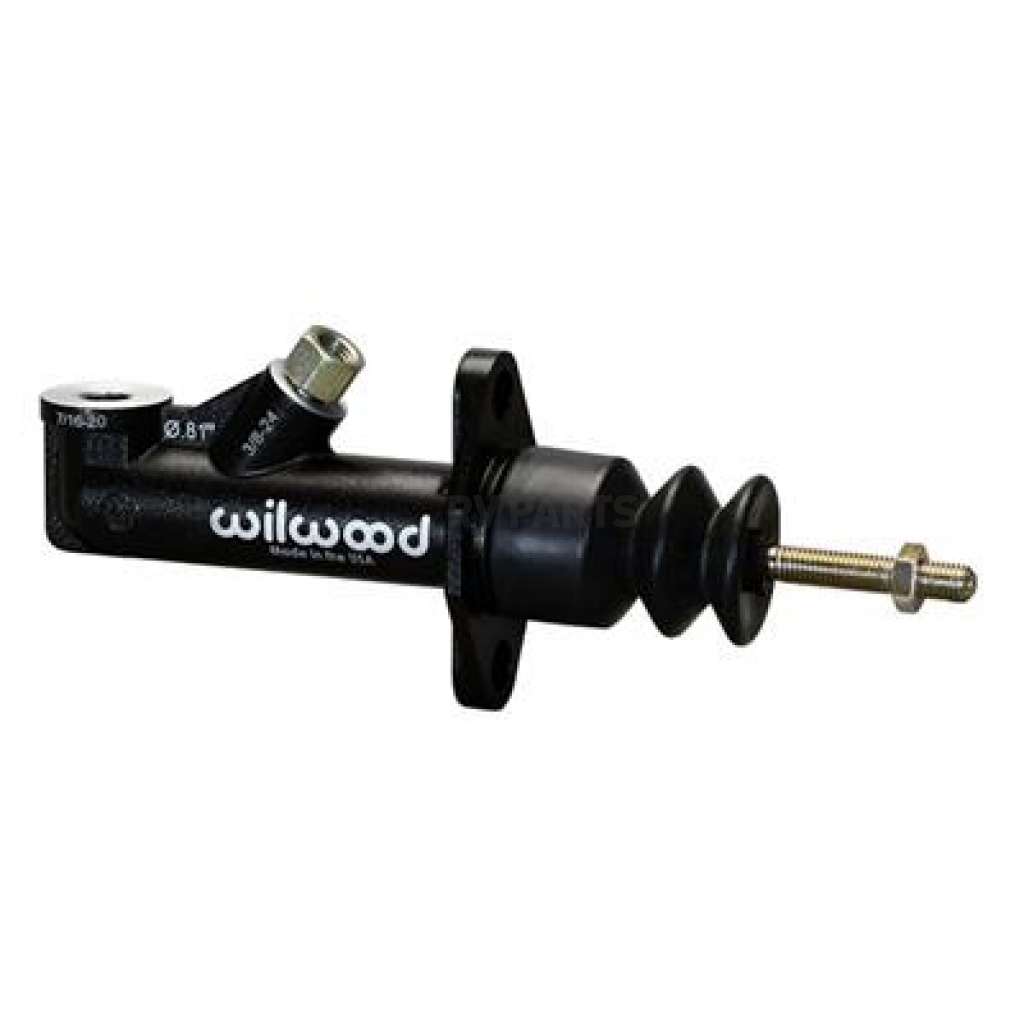

Wilwood Brakes Brake Master Cylinder - 260-15092

Brand: Wilwood Brakes

Have a product question? Ask us
Part Number: 260-15092
Part Location: U.S.
Availability: 5 In Stock
Delivery: Ships Out in 1 - 2 Business Days
If purchased before 12:00 EDT - estimated delivery by May 27

Retail: $85.04

Price: $80.99

You Save: $4.05

Bore Diameter

13/16 Inch

Color

Black

Condition

Finish

Electro Coated

Includes Reservoir

Material

Aluminum

Port Size

3/8 Inch-24 Inch

Share this page

Wilwood Brakes Brake Master Cylinder

Brake Master Cylinder; Compact; Remote Reservoir; 13/16 Inch Bore Size; Single 3/8-24 Inch Outlet Port; E-Coated Black Aluminum

MPN: 26015092

Wilwood’s new GS Compact Remote Master Cylinders are an all new rebuildable design featuring a high pressure Die Cast Aluminum body with a protective e-coat finish. Remote cylinders feature a standard 7/16-20 threaded inlet. Internally, a refined return spring and piston assembly assures positive pressure control along with a quick and complete release.

Condition: New

Bore Diameter: 13/16 Inch

Port Size: 3/8 Inch-24 Inch

Finish: Electro Coated

Color: Black

Material: Aluminum

Includes Reservoir: Yes

Features

Newly Tooled High Pressure Die-Cast Aluminum Bodies With Protective E-Coat Finish
Newly Designed Internal Piston And Return Spring Assembly Assures A Quick And Positive Release With Extended Service Life
Fully Rebuildable Design
High Displacement Capacity With Full 1.25 Inch Stroke In All Models
Uses 7/16-20 Male Union Inlet Fittings
No Supplier Warranty

Specifications of Wilwood Brakes Brake Master Cylinder - 260-15092
Bore Diameter	13/16 Inch
Color	Black
Condition	New
Finish	Electro Coated
Includes Reservoir	Yes
Material	Aluminum
Port Size	3/8 Inch-24 Inch
