Wilwood Brakes Brake Master Cylinder - 260-15088
Bore Diameter
1/2 Inch
Color
Black
Condition
New
Finish
Electro Coated
Includes Reservoir
Yes
Material
Aluminum
Port Size
3/8 Inch-24 Inch
Share this page

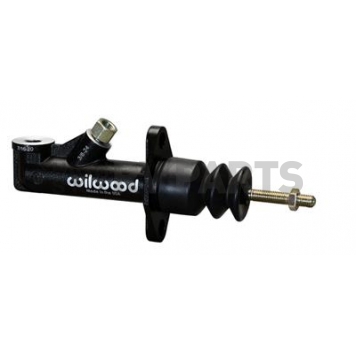

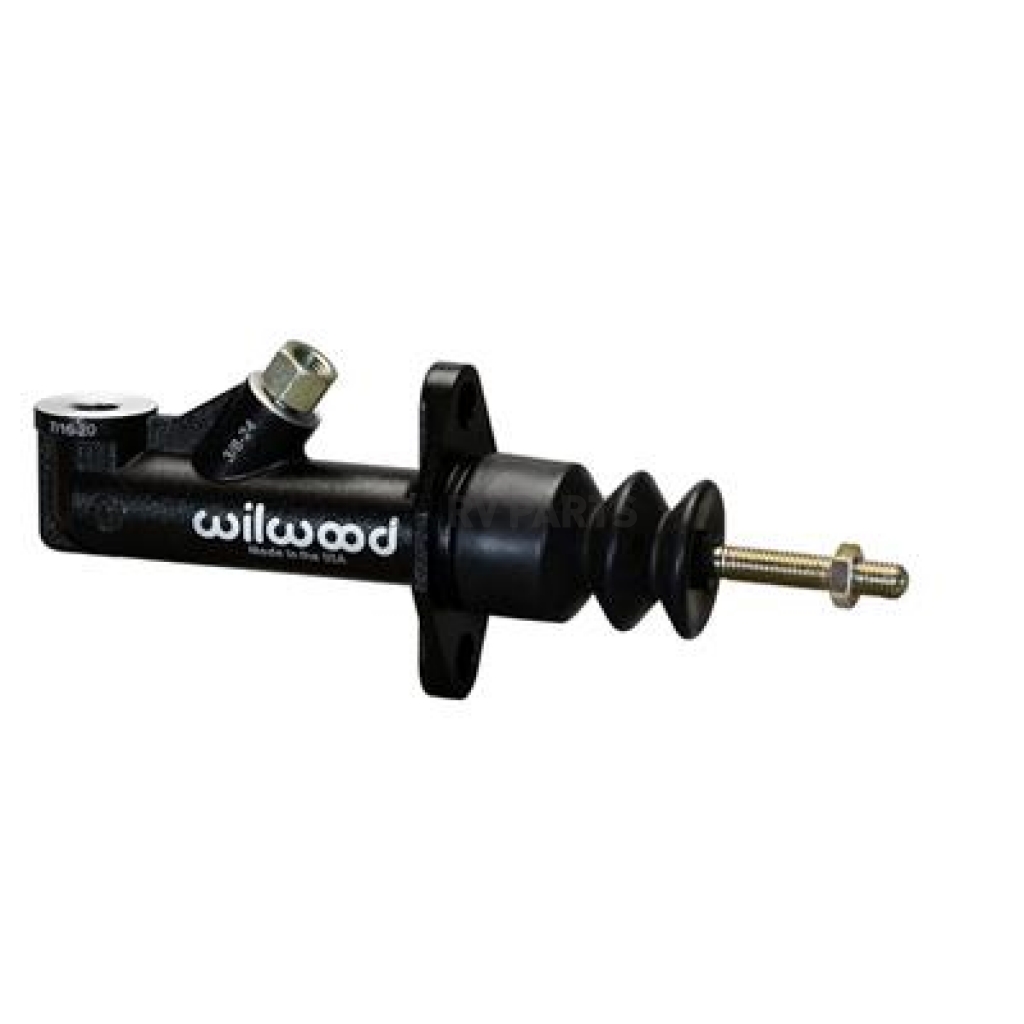

Wilwood Brakes Brake Master Cylinder
Brake Master Cylinder; Compact; Remote Reservoir; 1/2 Inch Bore Size; Single 3/8-24 Inch Outlet Port; E-Coated Black Aluminum
MPN: 26015088
Wilwood’s new GS Compact Remote Master Cylinders are an all new rebuildable design featuring a high pressure Die Cast Aluminum body with a protective e-coat finish. Remote cylinders feature a standard 7/16-20 threaded inlet. Internally, a refined return spring and piston assembly assures positive pressure control along with a quick and complete release.
Condition: New
Bore Diameter: 1/2 Inch
Port Size: 3/8 Inch-24 Inch
Finish: Electro Coated
Color: Black
Material: Aluminum
Includes Reservoir: Yes
Features
- Newly Tooled High Pressure Die-Cast Aluminum Bodies With Protective E-Coat Finish
- Newly Designed Internal Piston And Return Spring Assembly Assures A Quick And Positive Release With Extended Service Life
- Fully Rebuildable Design
- High Displacement Capacity With Full 1.25 Inch Stroke In All Models
- Uses 7/16-20 Male Union Inlet Fittings
- No Supplier Warranty
Specifications of Wilwood Brakes Brake Master Cylinder - 260-15088 | |
Bore Diameter | 1/2 Inch |
Color | Black |
Condition | New |
Finish | Electro Coated |
Includes Reservoir | Yes |
Material | Aluminum |
Port Size | 3/8 Inch-24 Inch |
