Wilwood Brakes Brake Master Cylinder - 260-14242-BK
Bore Diameter
15/16 Inch
Color
Black
Condition
New
Finish
Electro Coated
Includes Reservoir
Yes
Material
Aluminum
Port Size
1/2 Inch
Share this page

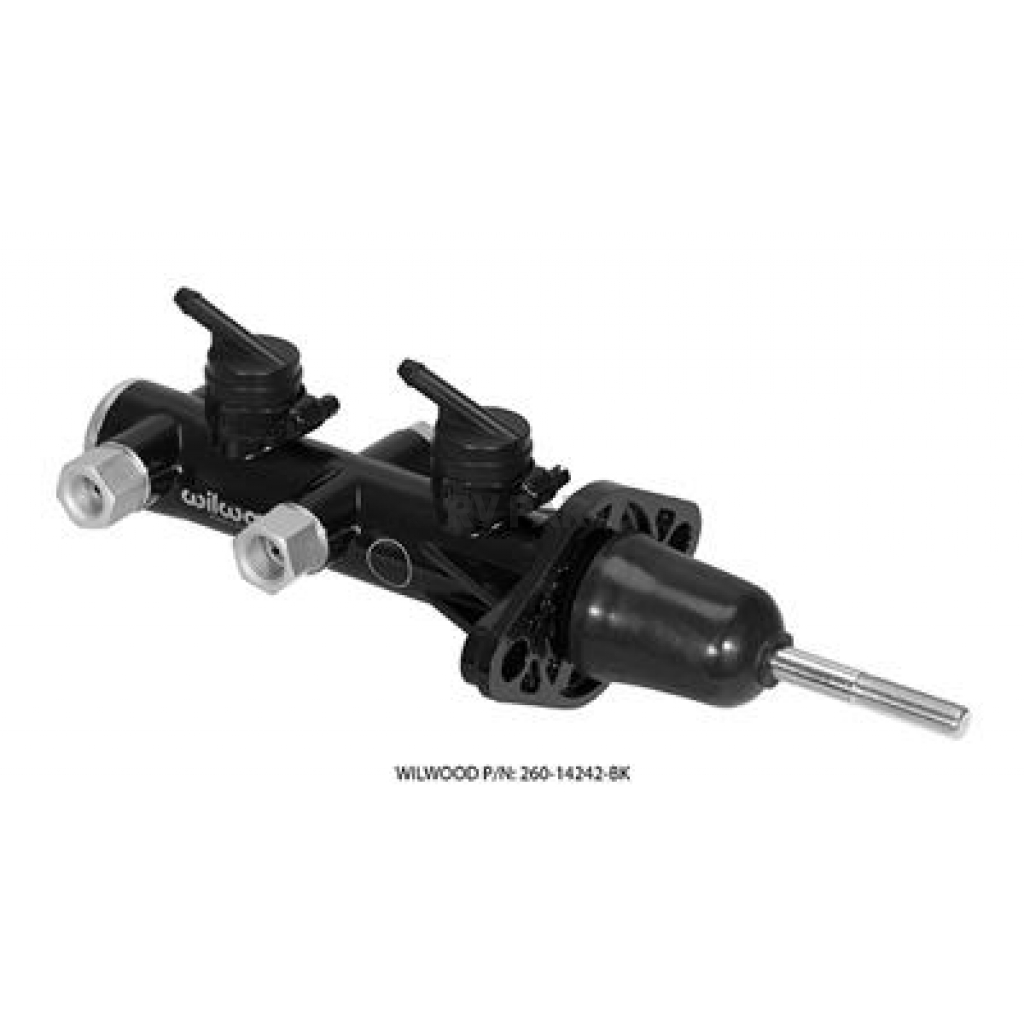

Wilwood Brakes Brake Master Cylinder
Brake Master Cylinder; Tandem; Remote Reservoir; 15/16 Inch Diameter Bore; With Two 1/2 Inch-20 Thread Port; E-Coated Body; Black; Aluminum/ Plastic; With Pushrod
MPN: 26014242BK
Wilwood’s new Remote Tandem Master Cylinder with Pushrod is available in 2 bore sizes 7/8 Inch and 15/16 Inch; and two finishes: ball burnished and black e-coat. 7/8 Inch and 15/16 Inch bore master cylinders are designed primarily for manual applications. They’re designed for mount flanges from 3.22 Inch to 3.40 Inch, common measurements for most domestic cars and trucks from the mid-1960s to present, and offer fluid outlet ports on both sides of the bore. The stroke is set at 1.12 Inch with a volume ratio of 2:1 between the primary and secondary chambers. Machined from high-pressure die castings, each master cylinder weighs only 3 Pounds, a 75 Percent weight savings over most cast iron OE type master cylinders.
Condition: New
Bore Diameter: 15/16 Inch
Port Size: 1/2 Inch
Finish: Electro Coated
Color: Black
Material: Aluminum
Includes Reservoir: Yes
Features
- Designed Primarily For Manual Applications
- Designed For Mount Flanges From 3.22 Inch To 3.40 Inch
- Offer Fluid Outlet Ports On Both Sides Of The Bore
- Machined From High-Pressure Die Castings
- 75 Percent Weight Savings Over Most Cast Iron OE Type
- No Supplier Warranty
| Specifications of Wilwood Brakes Brake Master Cylinder - 260-14242-BK | |
| Bore Diameter | 15/16 Inch |
| Color | Black |
| Condition | New |
| Finish | Electro Coated |
| Includes Reservoir | Yes |
| Material | Aluminum |
| Port Size | 1/2 Inch |
