Wilwood Brakes Brake Master Cylinder - 260-13375

Brand: Wilwood Brakes

0 reviews

Have a product question? Ask us
Part Number: 260-13375
Part Location: U.S.
Availability: Out Of Stock

Retail: $267.74

Price: $254.99

You Save: $12.75

Bore Diameter

15/16 Inch

Color

Silver And Black

Condition

Finish

Includes Reservoir

Material

Aluminum

Share this page

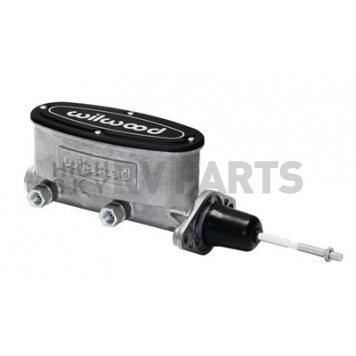

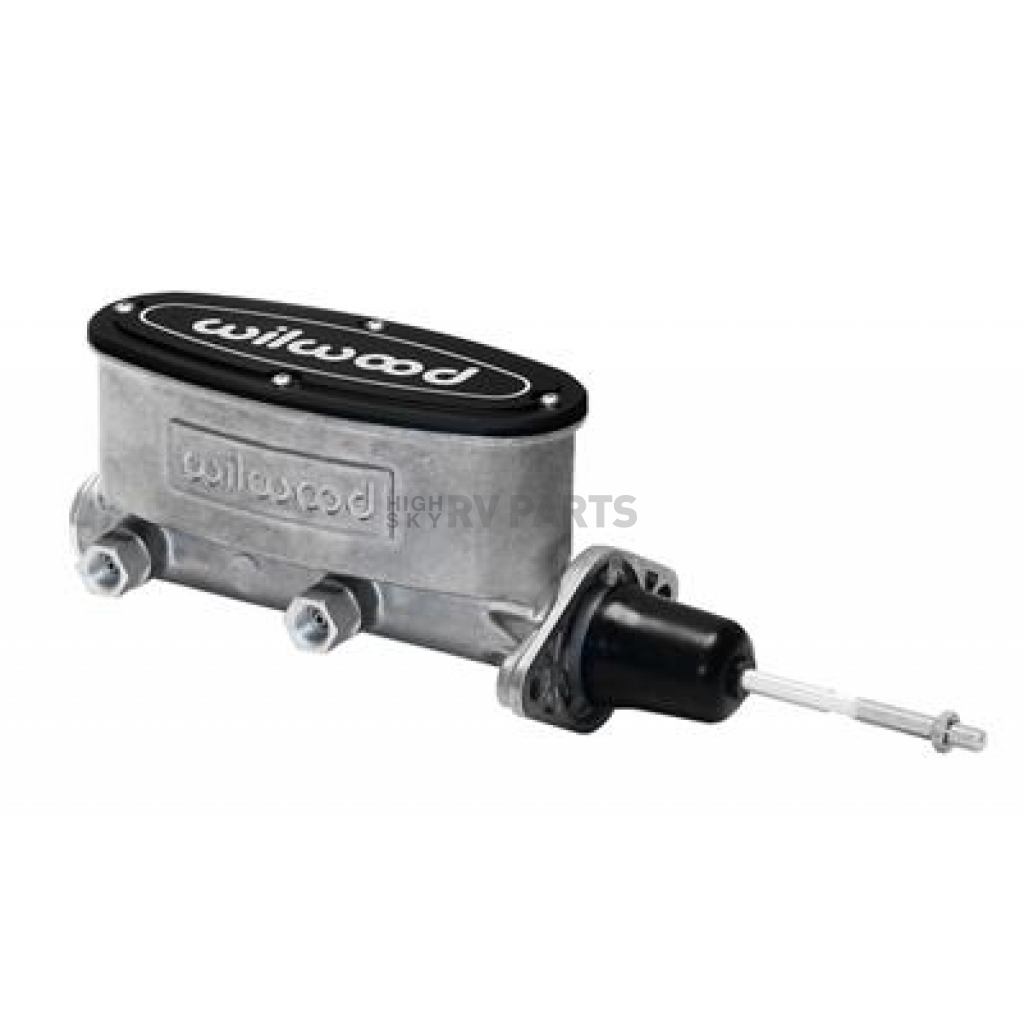

Wilwood Brakes Brake Master Cylinder

Brake Master Cylinder; Tandem; Integral Reservoir; 15/16 Inch Bore Size; Two Outlet Ports; Bare; Aluminum; With Bracket/ Proportioning Valve/ Stainless Steel Lines

MPN: 26013375

Condition: New

Bore Diameter: 15/16 Inch

Finish: Bare

Color: Silver And Black

Material: Aluminum

Includes Reservoir: Yes

Features

Designed For Mount Flanges From 3.22 Inch To 3.40 Inch, Common Measurements For Most Domestic Cars And Trucks From The Mid 1960s To Present, And Offer Fluid Outlet Ports On Both Sides Of The Bore
The Stroke Is Set At 1.10 Inch With A Volume Ratio Of 2:1 Between The Primary And Secondary Chambers
Machined From High-Pressure Die Castings, Each Master Cylinder Weighs Only 3 Pounds, A 75 Percent Weight Savings Over Most Cast Iron OE Type Master Cylinders
No Supplier Warranty

Specifications of Wilwood Brakes Brake Master Cylinder - 260-13375
Bore Diameter	15/16 Inch
Color	Silver And Black
Condition	New
Finish	Bare
Includes Reservoir	Yes
Material	Aluminum
