Wilwood Brakes Brake Master Cylinder - 260-12386

Brand: Wilwood Brakes
0 reviews
  • Have a product question? Ask us
  • Part Number: 260-12386
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: 3 - 4 Weeks
Retail: $154.34
Price: $146.99
You Save: $7.35
Bore Diameter
13/16 Inch
Color
Black
Condition
New
Finish
Electro Coated
Includes Reservoir
Yes
Material
Aluminum
Port Size
1/8 Inch
Share this page

Wilwood Brakes Brake Master Cylinder

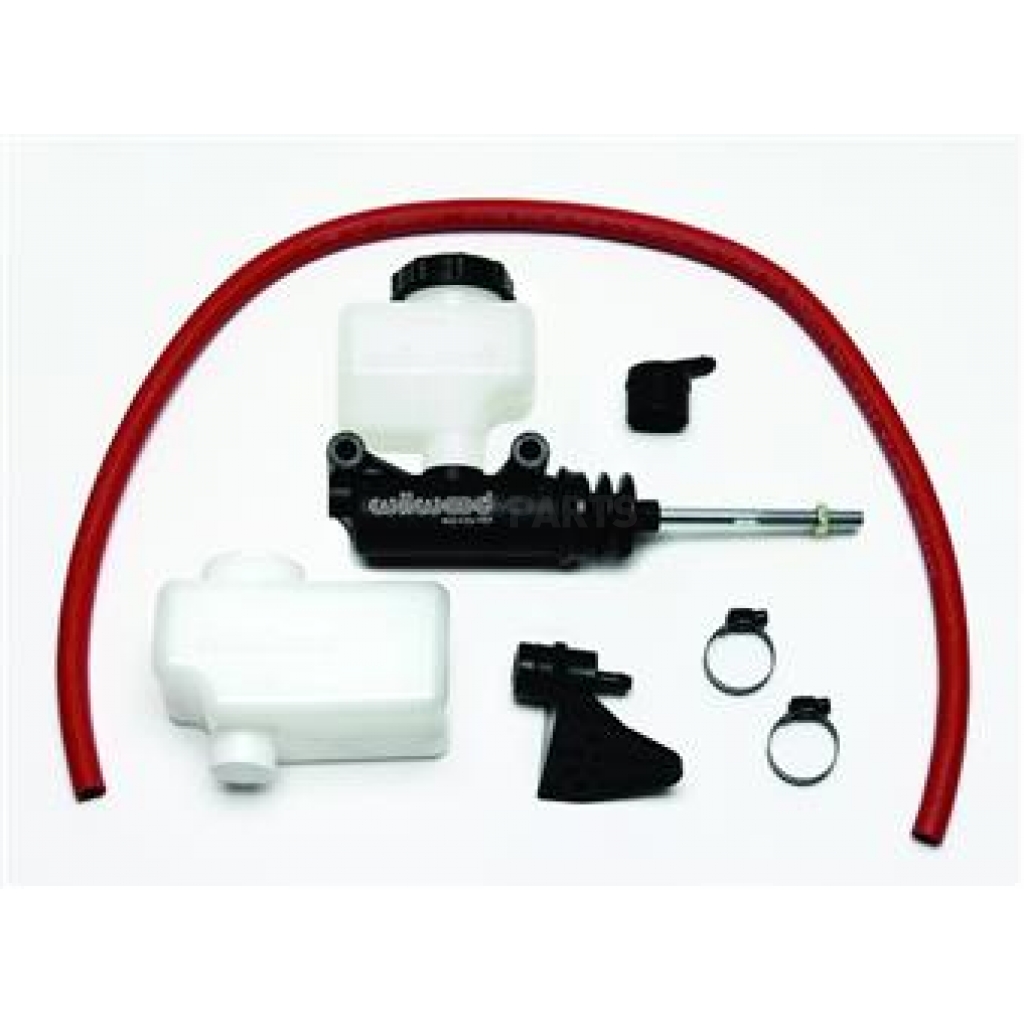

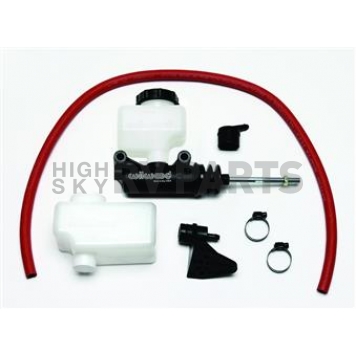

Brake Master Cylinder; Compact Side Mount; Remote Reservoir; 13/16 Inch Bore Size; Single 1/8 Inch NPT Outlet Port; E-Coated Body; Black; Aluminum Body/ Plastic Reservoir; With 7 Ounce And 10 Ounce Reservoir/ Hose/ Clamps

MPN: 26012386

Wilwood’s Compact Combination (Side Mount) Master Cylinders have been designed for limited space applications requiring the output capacity of a full size master cylinder. The ultra short 3.37 Inch compact body provides 2.16 Inch of additional clearance between the mounting boss and the fluid outlet. The new body design incorporates integral side mounting lugs with a 3 Inch center to distance and no traditional mounting flange, which further enhances its ability to mount in tight spaces. A full 1.12 Inch of piston stroke meets or exceeds the stroke capacity of most full size cylinders. With 1/8 Inch NPT fluid outlet port located at the top radius of the cylinder bore, reduces the chances for trapped air. Enhanced fluid inlet port allows mounting of the standard reservoir included in kit and also contain 11/16-20 internal threads for custom reservoir arrangements. The black E-Coated aluminum body resists corrosion and maintains a durable long lasting finish.
Condition: New
Bore Diameter: 13/16 Inch
Port Size: 1/8 Inch
Finish: Electro Coated
Color: Black
Material: Aluminum
Includes Reservoir: Yes

Features

  • Designed For Limited Space Applications Requiring The Output Capacity Of A Full Size Master Cylinder
  • Provides 2.16 Inch Of Additional Clearance Between The Mounting Boss And The Fluid Outlet
  • Black E-Coated Aluminum Body Resists Corrosion And Maintains A Durable Long Lasting Finish
  • No Supplier Warranty
Specifications of Wilwood Brakes Brake Master Cylinder - 260-12386
Bore Diameter 13/16 Inch
Color Black
Condition New
Finish Electro Coated
Includes Reservoir Yes
Material Aluminum
Port Size 1/8 Inch
