Wilwood Brakes Brake Kit - 140-1017-BD

Brand: Wilwood Brakes
0 reviews
  • Have a product question? Ask us
  • Part Number: 140-1017-BD
  • Part Location: U.S.
  • Availability: 1 In Stock
  • Delivery: Ships Out in 1 - 2 Business Days
  • If purchased before 12:00 EDT - estimated delivery by May 27
Retail: $1,042.64
Price: $992.99
You Save: $49.65
Disc Brake Caliper Color
Black
Disc Brake Caliper Condition
New
Disc Brake Caliper Finish
Anodized
Disc Brake Caliper Material
Aluminum
Disc Brake Caliper Number of Pistons
4
Disc Brake Pad Material
BP-10 Metallic
Disc Brake Pad Overall Length
100.58 Millimeter
Disc Brake Pad Overall Thickness
12.44 Millimeter
Disc Brake Pad Overall Width
60.45 Millimeter
Disc Brake Rotor Bolt Circle
6 X 6.5 Inch
Disc Brake Rotor Design
Drilled
Share this page

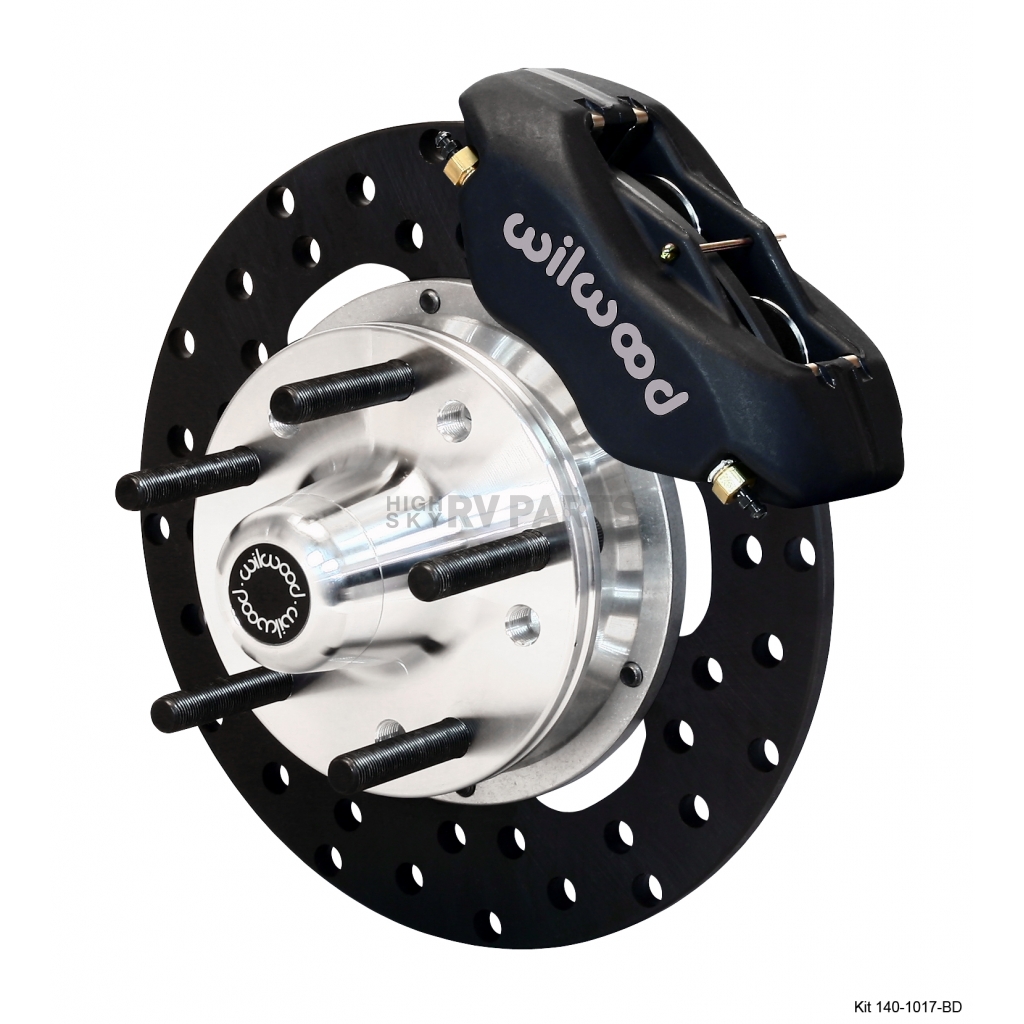

Wilwood Brakes Brake Kit

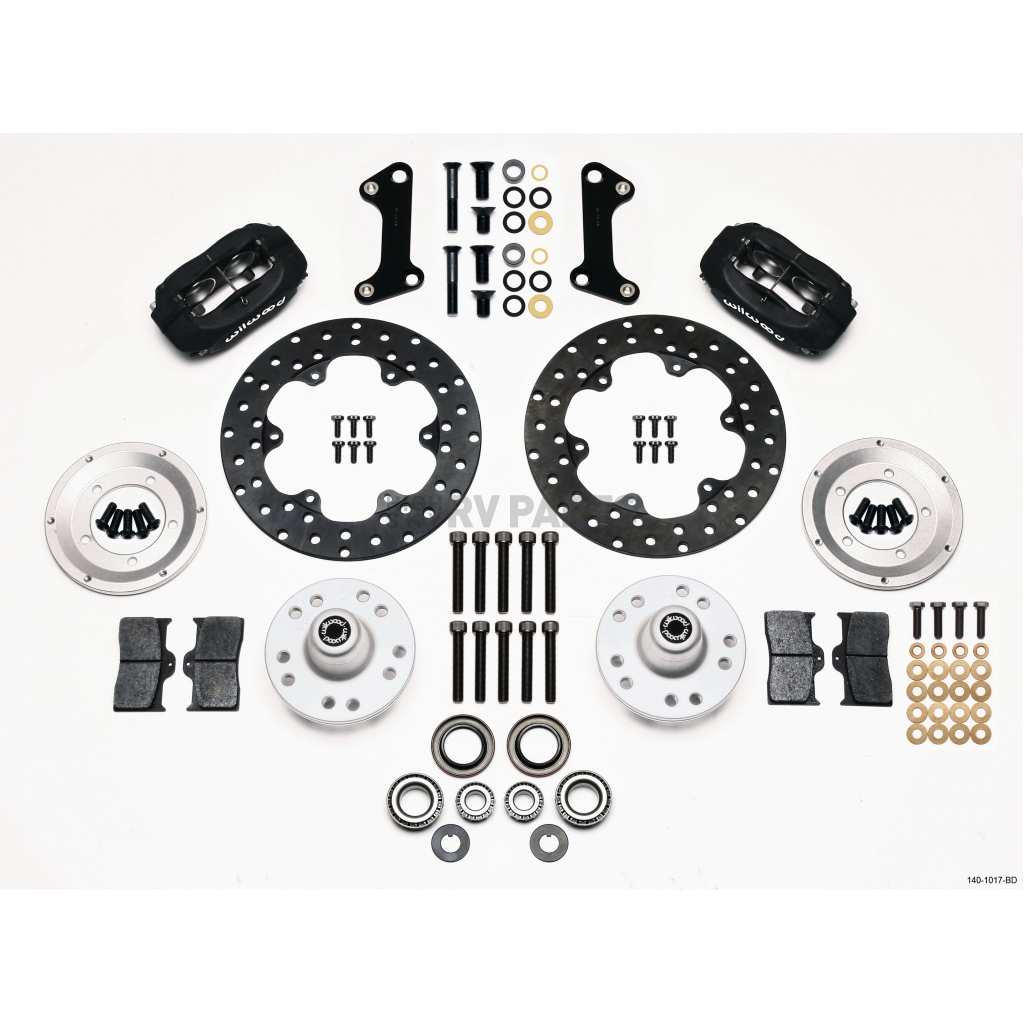

Brake Kit; Forged Dynalite; DRAG RACE USE ONLY/ -0.12 Offset; With BP-10 Metallic Brake Pads; 4 Piston; Black Oxide Steel 10.75 Inch Diameter Drilled Rotor; With Caliper Mounting Brackets/ Rotor Hats/ Hubs with 5 x 4.50/ 5 x 4.75 Lug Patterns/ Rotors/ Two Calipers/ Pads/ Studs/ Bearings/ Hardware; For Use On Four Wheel Disc Cars Weighing Up To 2,800 pounds Or Rear Drum Brake Cars Weighing Up To 2,400 Pounds Only; Requires Brake Line

MPN: 1401017BD

FDL Front Drag kits are drag racing’s most popular front brake kits. FDL kits are available for the popular muscle car spindles and select aftermarket front struts used on four-wheel disc cars weighing up to 2,800 Pounds, or rear drum brake equipped cars weighing up to 2,400 Pounds. Forged billet FDL four piston calipers mount directly to the spindle with a bolt-on bracket. Forged billet, five lug hubs with direct mount steel rotors combine to provide an average weight savings of over 30 Pounds compared to stock drum or disc brakes. Kits include all new hardware, wheel bearings, seals and extra length lug studs.
Recommended Use: Drag Racing
Disc Brake Pad Material: BP-10 Metallic
Disc Brake Pad Overall Length: 100.58 Millimeter
Disc Brake Pad Overall Width: 60.45 Millimeter
Disc Brake Pad Overall Thickness: 12.44 Millimeter
Disc Brake Caliper Condition: New
Disc Brake Caliper Finish: Anodized
Disc Brake Caliper Color: Black
Disc Brake Caliper Material: Aluminum
Disc Brake Caliper Number of Pistons: 4
Disc Brake Rotor Design: Drilled
Disc Brake Rotor Finish: Black Oxide
Disc Brake Rotor Material: Steel
Disc Type: 1-Piece
Disc Brake Rotor Outer Diameter (MM): 273.05 Millimeter
Disc Brake Rotor Outer Diameter (IN): 10-3/4 Inch
Nominal Thickness (MM): 8.89 Millimeter
Nominal Thickness (IN): 0.35 Inch
Disc Brake Rotor Hub Bore Size: 5 X 4.5 Inch Circle 1/ 5 X 4.75 Inch Circle 2
Disc Brake Rotor Bolt Circle: 6 X 6.5 Inch
Includes Bracket: Yes
Includes Hardware: Yes
Includes Shims: Yes
Includes Brake Lines: No

Features

  • Forged Billet FDL Four Piston Calipers Mount Directly To The Spindle With A Bolt-On Bracket
  • Provide An Average Weight Savings Of Over 30 Pounds Compared To Stock Drum Or Disc Brakes
  • No Supplier Warranty
Specifications of Wilwood Brakes Brake Kit - 140-1017-BD
Disc Brake Caliper Color Black
Disc Brake Caliper Condition New
Disc Brake Caliper Finish Anodized
Disc Brake Caliper Material Aluminum
Disc Brake Caliper Number of Pistons 4
Disc Brake Pad Material BP-10 Metallic
Disc Brake Pad Overall Length 100.58 Millimeter
Disc Brake Pad Overall Thickness 12.44 Millimeter
Disc Brake Pad Overall Width 60.45 Millimeter
Disc Brake Rotor Bolt Circle 6 X 6.5 Inch
Disc Brake Rotor Design Drilled
Disc Brake Rotor Finish Black Oxide
Disc Brake Rotor Hub Bore Size 5 X 4.5 Inch Circle 1/ 5 X 4.75 Inch Circle 2
Disc Brake Rotor Material Steel
Disc Brake Rotor Outer Diameter (IN) 10-3/4 Inch
Disc Brake Rotor Outer Diameter (MM) 273.05 Millimeter
Disc Type 1-Piece
Includes Bracket Yes
Includes Brake Lines No
Includes Hardware Yes
Includes Shims Yes
Nominal Thickness (IN) 0.35 Inch
Nominal Thickness (MM) 8.89 Millimeter
Recommended Use Drag Racing
