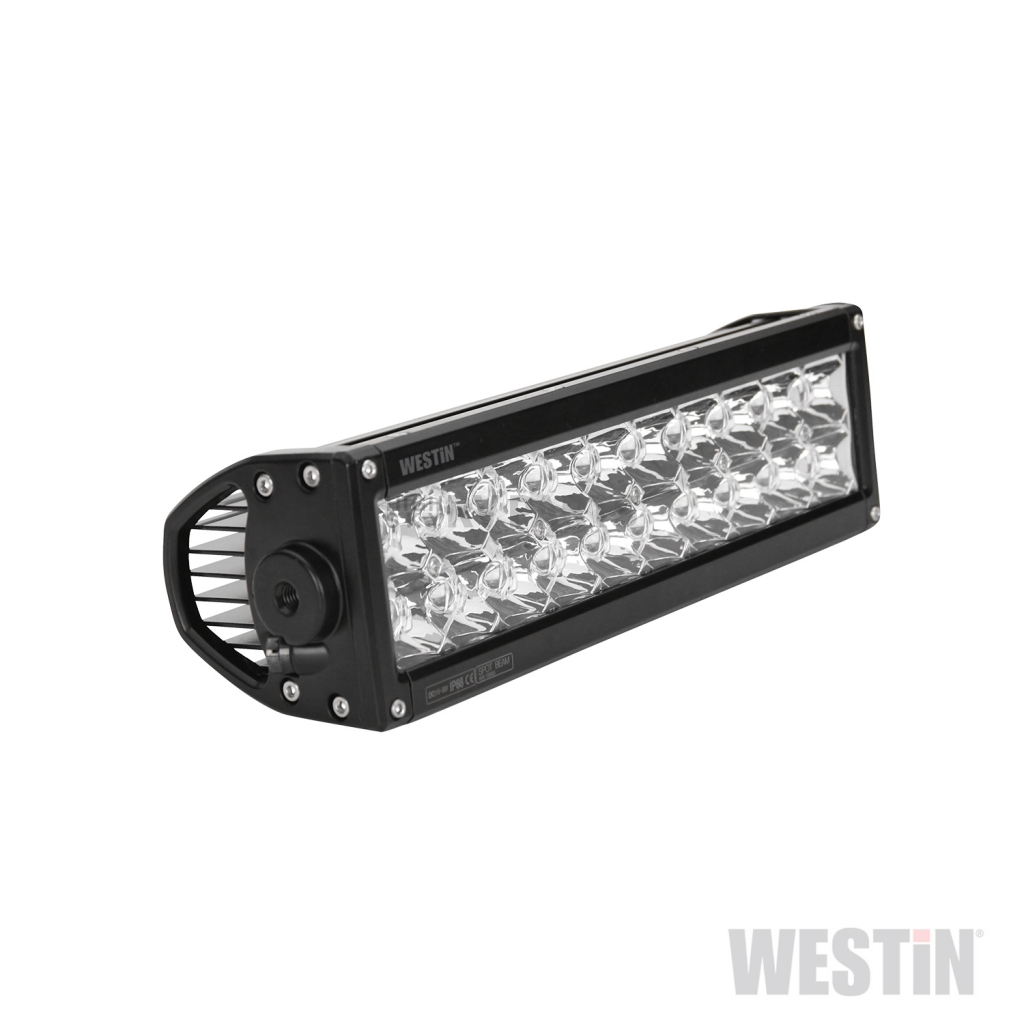

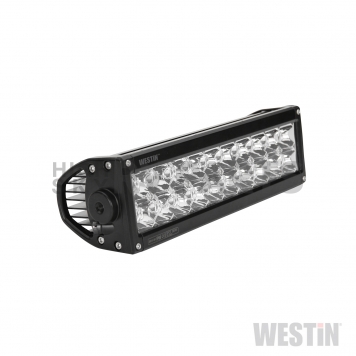

Westin Automotive Light Bar LED 10 Inch Straight - 09-12230-20S

Brand: Westin Automotive Westin Automotive
0 reviews
  • Have a product question? Ask us
  • Part Number: 09-12230-20S
  • Part Location: U.S.
  • Availability: Out Of Stock
Retail: $284.54
Price: $270.99
You Save: $13.55
Ampere Rating At 12 Volts
3.42 Amp
Beam Angle (Deg)
18 Degree
Beam Type
Flex Beam
Connection Type
Plug And Play Wiring Harness
Height (IN)
3-1/2 Inch
Housing Color
Black
Housing Material
Aluminum
Includes Light Cover
No
Includes Mounting Hardware
Yes
Length (IN)
10 Inch
Lens Material
Polycarbonate
Share this page

Westin Automotive Light Bar - LED

Light Bar - LED; Performance2X HP Low Profile; 10 Inch Length Double Row; 60 Watt; Flex Beam; Osram 20-LED Clear Bulb; Clear Polycarbonate Lens; Black Aluminum Housing; Surface Mount/ 11.7 Inch Mounting Bolt To Mounting Bolt; Single With Mounting Hardware/ Wire Harness/ Connectors/ Switch/ In-line Fuse

MPN: 09-12230-20S

Westin's circuitry is designed in-house to be more powerful, more efficient and to generate less heat. Our LED Light Bar housings feature heat sinks designed to keep inside temperatures at a minimum, allowing our LEDs to run cooler and brighter. We then give our housings a high quality powder-coat and finish them off with a custom-molded rubber seal and an unbreakable, scratch resistant lens. Mounting hardware included.
Beam Type: Flex Beam
Beam Angle (Deg): 18 Degree
Type: Straight
Number of LEDs: 20
Number Of Rows: Double
Wattage: 60 Watt
Voltage Rating: 9 To 30 Volt
Ampere Rating At 12 Volts: 3.42 Amp
Length (IN): 10 Inch
Width (IN): 3.2 Inch
Height (IN): 3-1/2 Inch
Mounting Length (IN): 11.7 Inch
Light Color: Clear
Lens Material: Polycarbonate
Housing Color: Black
Housing Material: Aluminum
Mounting Style: Surface Mount
Connection Type: Plug And Play Wiring Harness
Includes Light Cover: No
Includes Mounting Hardware: Yes

Features

  • Featuring Osram 3 Watts LED Chips
  • Features 6063 Extruded Aluminum Housing With Custom Over-Sized Heat Sinks
  • 50,000+ Hours Life Span
  • IP Rated At 68
  • Instant On/Off Operation. Amperage Required Is Much Less Compared To HID Lights
  • Gore Pressure Equalizing Vent (Eliminates Condensation Inside). PWM Thermal Management Regulation
  • ZERO UV Emissions. Includes Wiring Harness With Connector, Switch And In-Line Fuse
  • Limited Lifetime Warranty
Specifications of Westin Automotive Light Bar LED 10 Inch Straight - 09-12230-20S
Ampere Rating At 12 Volts 3.42 Amp
Beam Angle (Deg) 18 Degree
Beam Type Flex Beam
Connection Type Plug And Play Wiring Harness
Height (IN) 3-1/2 Inch
Housing Color Black
Housing Material Aluminum
Includes Light Cover No
Includes Mounting Hardware Yes
Length (IN) 10 Inch
Lens Material Polycarbonate
Light Color Clear
Mounting Length (IN) 11.7 Inch
Mounting Style Surface Mount
Number of LEDs 20
Number Of Rows Double
Type Straight
Voltage Rating 9 To 30 Volt
Wattage 60 Watt
Width (IN) 3.2 Inch
