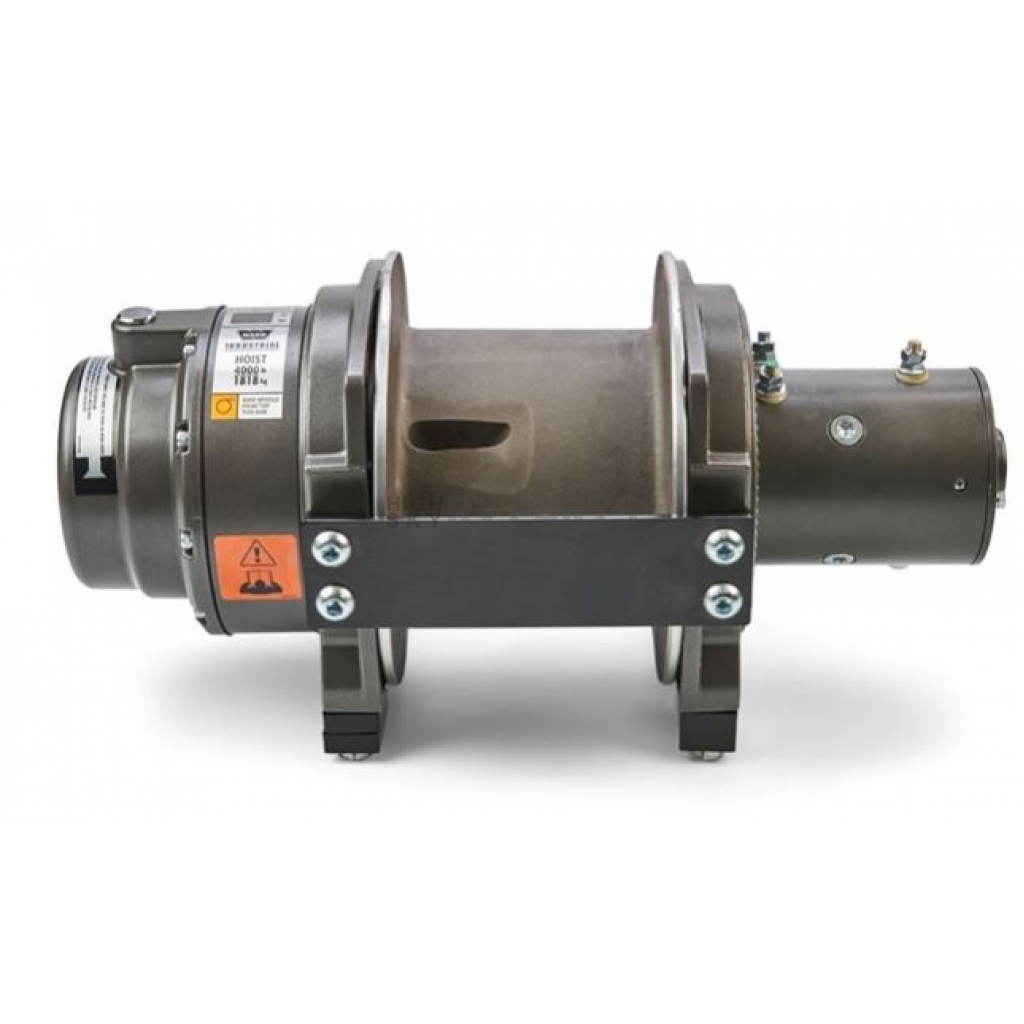

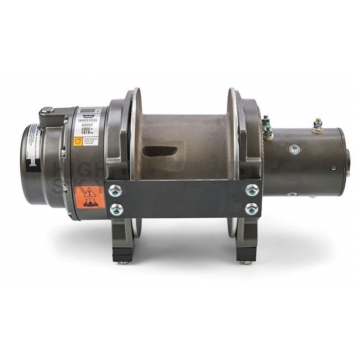

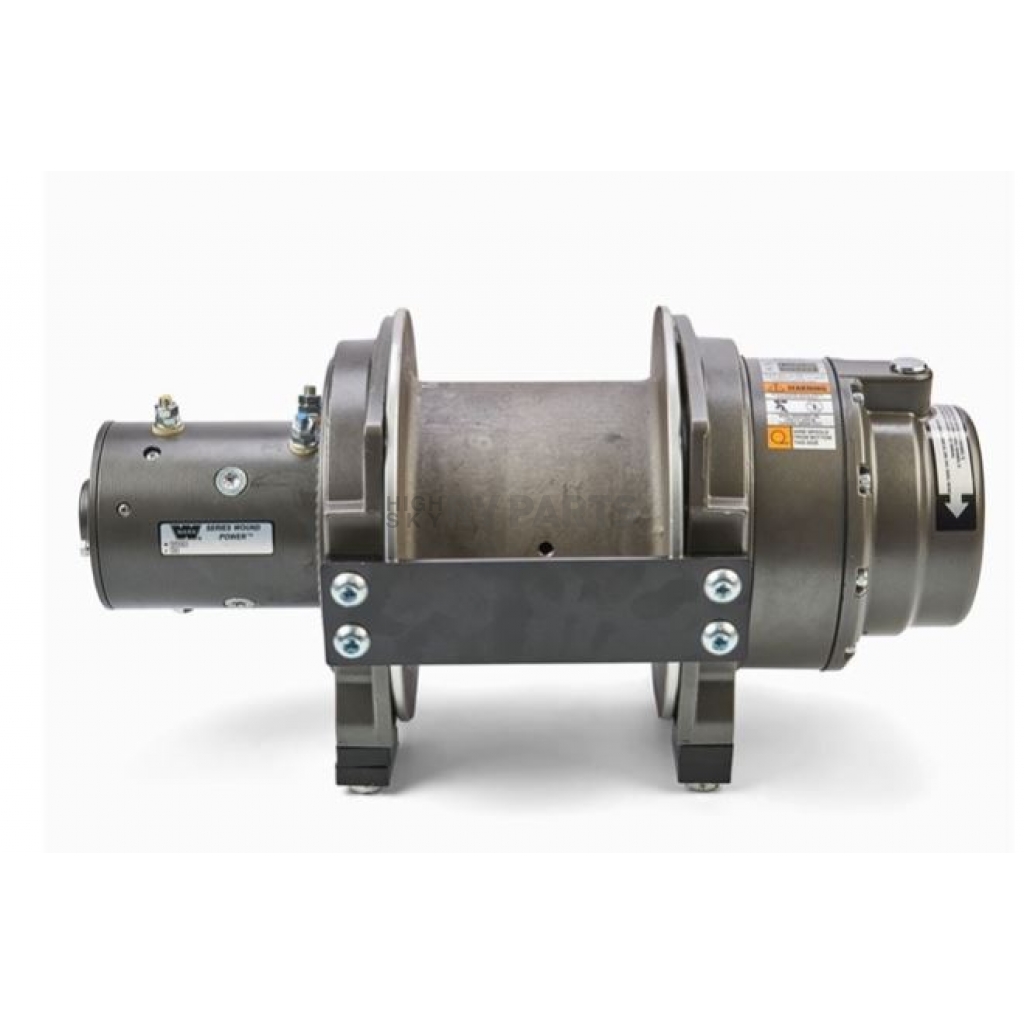

Warn Winch 4000 Pound Industrial Electric - 90124

Authorized Dealer
Brand: Warn Warn
0 reviews
  • Have a product question? Ask us
  • Part Number: 90124
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by June 22
Retail: $3,567.89
Price: $3,397.99
You Save: $169.90
Brake Type
Automatic Mechanical Disc
Color
Black
Drive Gear Type
Planetary
Drum Material
Aluminum
Estimated Install Time (Hours)
2
Fairlead Type
No Fairlead
Free Spooling
Yes
Gear Reduction Ratio
13.125694444
Includes Mounting Hardware
No
Line Diameter (IN)
No Rope
Line Length (FT)
No Rope
Share this page

Warn Winch

Winch; Industrial Hoist; 24 Volt Electric; 4000 Pound Line Pull Capacity; Without Rope; Without Fairlead; Without Remote; 315 Gear Reduction; Automatic Disc Brake

MPN: 90124

The DC4000 hoist combines a powerful series wound DC motor with robust sealing and our proven 3-stage all metal geartrain. Permanent grease lubrication means years of trouble free service. All WARN hoists incorporate an automatic mechanical brake that holds full rated load. The durable powder coated finish stands up to the elements and looks great. The DC4000 hoist is built on WARN's robust large frame design with a cast aluminum drum to provide plenty of wire rope capacity. Controls and accessories available separately.
Winch Rating: 4000 Pound
Recommended Use: Industrial
Type: Electric
Mount Type: Fixed Mount
Voltage: 24 Volt
Thermal Shutoff: No
Gear Reduction Ratio: 13.125694444
Free Spooling: Yes
Operation Type: Power
Line Length (FT): No Rope
Line Material: No Rope
Fairlead Type: No Fairlead
Remote Type: Not Applicable
Brake Type: Automatic Mechanical Disc
Includes Mounting Hardware: No
Color: Black
Mounting Pattern Size: 8 Inch Length x 4-1/2 Inch Width
Max Amp Draw: 195 Amp Draw At 4000 Pound
Line Speed At Max Pull: 16.4 Feet Per Minute At 4000 Pound
Motor Type: Series Wound
Drive Gear Type: Planetary
Line Diameter (IN): No Rope
Mounting Hole Quantity: 8
Drum Material: Aluminum
Estimated Install Time (Hours): 2

Please refer the Technical Bulletins attached to the Product Manual tab

Features

  • Powerful Series-Wound DC Motor With Robust Sealing
  • Proven 3-Stage All-Metal Gear Train With Permanent Grease Lubrication For Years Of Trouble-Free Service
  • Large-Frame Design With A Cast Aluminum Drum Provides Plenty Of Wire Rope Capacity
  • Automatic Disc Brake Holds Full Rated Load
  • Durable Powder-Coated Finish Stands Up To The Elements
  • Limited 1 Year Warranty
Specifications of Warn Winch 4000 Pound Industrial Electric - 90124
Brake Type Automatic Mechanical Disc
Color Black
Drive Gear Type Planetary
Drum Material Aluminum
Estimated Install Time (Hours) 2
Fairlead Type No Fairlead
Free Spooling Yes
Gear Reduction Ratio 13.125694444
Includes Mounting Hardware No
Line Diameter (IN) No Rope
Line Length (FT) No Rope
Line Material No Rope
Line Speed At Max Pull 16.4 Feet Per Minute At 4000 Pound
Max Amp Draw 195 Amp Draw At 4000 Pound
Motor Type Series Wound
Mount Type Fixed Mount
Mounting Hole Quantity 8
Mounting Pattern Size 8 Inch Length x 4-1/2 Inch Width
Operation Type Power
Recommended Use Industrial
Remote Type Not Applicable
Thermal Shutoff No
Type Electric
Voltage 24 Volt
Winch Rating 4000 Pound
