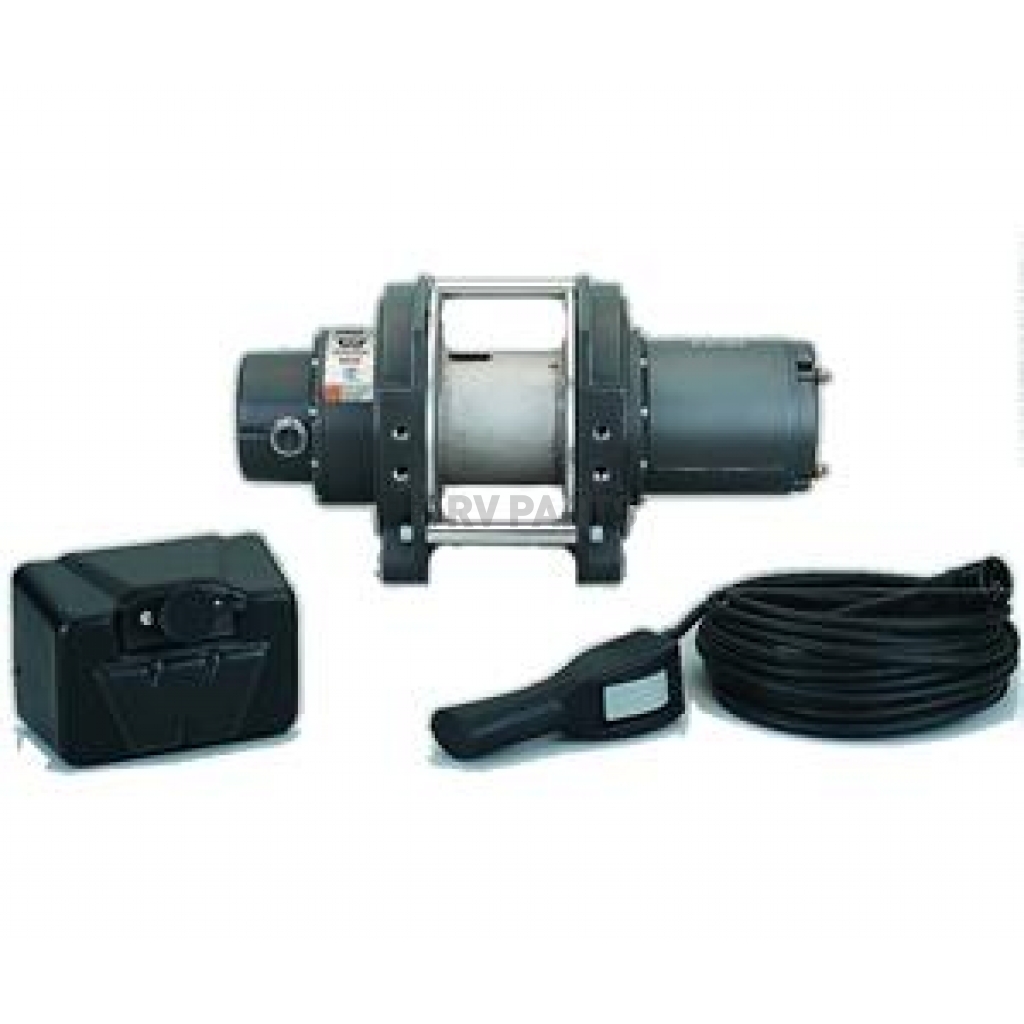

Warn Winch 1600 Pound Industrial Electric - 85159

Authorized Dealer
Brand: Warn Warn
0 reviews
  • Have a product question? Ask us
  • Part Number: 85159
  • Part Location: U.S.
  • Availability: 1 In Stock
  • Delivery: Ships Out in 1 - 2 Business Days
  • If purchased before 12:00 EDT - estimated delivery by July 07
Retail: $1,544.54
Price: $1,470.99
You Save: $73.55
Brake Type
Automatic Cone
Color
Black
Drive Gear Type
Planetary
Drum Material
Aluminum
Estimated Install Time (Hours)
2
Fairlead Type
No Fairlead
Free Spooling
Yes
Gear Reduction Ratio
10.875694444
Includes Mounting Hardware
No
Line Diameter (IN)
No Rope
Line Length (FT)
No Rope
Share this page

Warn Winch

Winch; Industrial Hoist; 24 Volt Electric; 1600 Pound Line Pull Capacity; Without Rope; Without Fairlead; Without Remote; 261 Gear Reduction; Automatic Cone Brake

MPN: 85159

The DC1600 hoist combines a powerful permanent magnet DC motor with robust sealing and our proven 3-stage all metal geartrain. Permanent grease lubrication means years of trouble free service. All WARN hoists incorporate an automatic mechanical brake that holds full rated load. The durable powder coated finish stands up to the elements and looks great. The DC1600 hoist is built on WARN's robust large frame design with a cast aluminum drum to provide plenty of wire rope capacity.
Winch Rating: 1600 Pound
Recommended Use: Industrial
Type: Electric
Mount Type: Fixed Mount
Voltage: 24 Volt
Thermal Shutoff: No
Gear Reduction Ratio: 10.875694444
Free Spooling: Yes
Operation Type: Power
Line Length (FT): No Rope
Line Material: No Rope
Fairlead Type: No Fairlead
Remote Type: Not Applicable
Brake Type: Automatic Cone
Includes Mounting Hardware: No
Color: Black
Mounting Pattern Size: 6 Inch Length X 4-1/2 Inch Width
Max Amp Draw: 43 Amp Draw At 1600 Pound
Line Speed At Max Pull: 13 Feet Per Minute At 1600 Pound
Motor Type: Permanent Magnet
Drive Gear Type: Planetary
Line Diameter (IN): No Rope
Mounting Hole Quantity: 8
Drum Material: Aluminum
Estimated Install Time (Hours): 2

Please refer the Technical Bulletins attached to the Product Manual tab

Features

  • Combines A Powerful Permanent Magnet DC Motor With Robust Sealing And Our Proven 3-Stage All Metal Gear Train
  • Incorporates An Automatic Mechanical Brake That Holds Full Rated Load
  • Durable Powder Coated Finish Stands Up To The Elements And Looks Great
  • Limited 1 Year Warranty
Specifications of Warn Winch 1600 Pound Industrial Electric - 85159
Brake Type Automatic Cone
Color Black
Drive Gear Type Planetary
Drum Material Aluminum
Estimated Install Time (Hours) 2
Fairlead Type No Fairlead
Free Spooling Yes
Gear Reduction Ratio 10.875694444
Includes Mounting Hardware No
Line Diameter (IN) No Rope
Line Length (FT) No Rope
Line Material No Rope
Line Speed At Max Pull 13 Feet Per Minute At 1600 Pound
Max Amp Draw 43 Amp Draw At 1600 Pound
Motor Type Permanent Magnet
Mount Type Fixed Mount
Mounting Hole Quantity 8
Mounting Pattern Size 6 Inch Length X 4-1/2 Inch Width
Operation Type Power
Recommended Use Industrial
Remote Type Not Applicable
Thermal Shutoff No
Type Electric
Voltage 24 Volt
Winch Rating 1600 Pound
