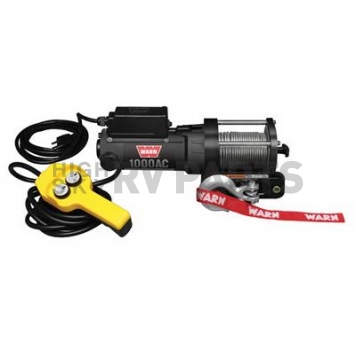

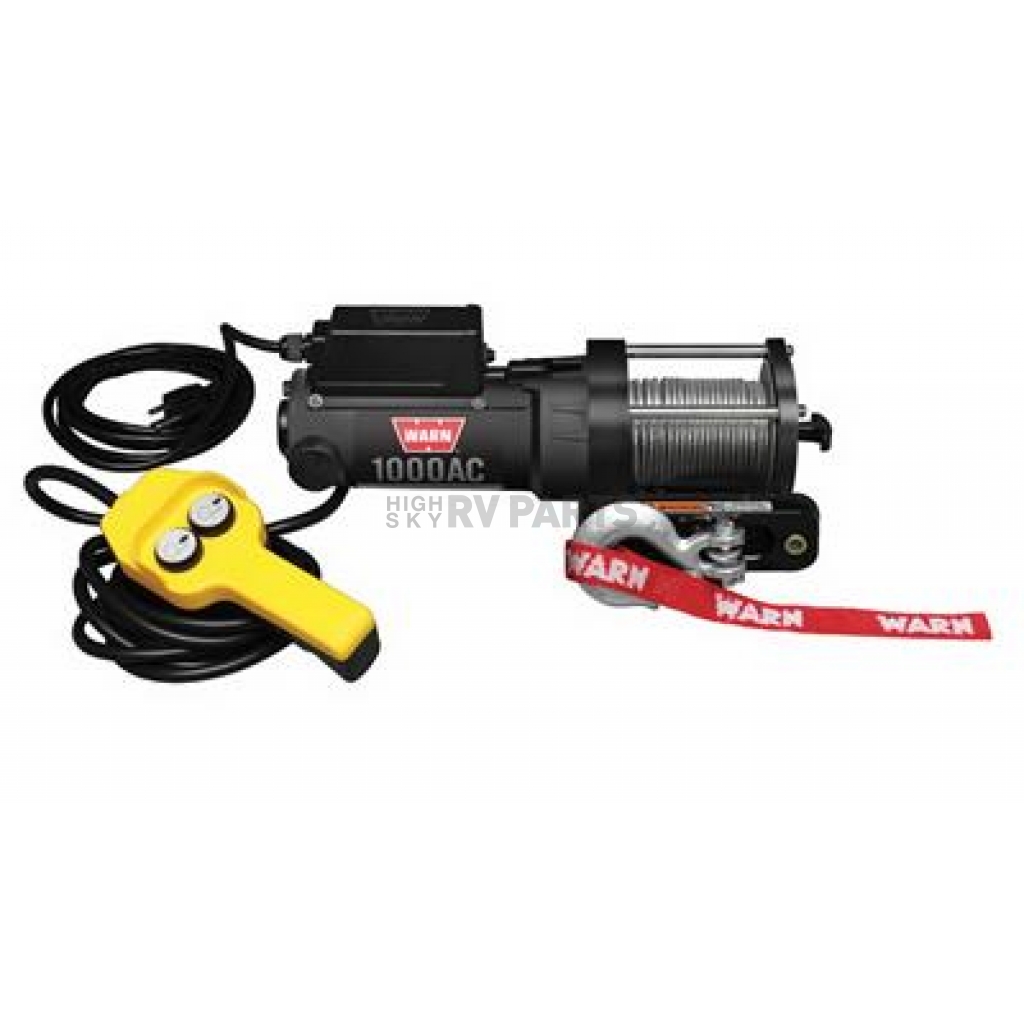

Warn Winch 1000 Pound UTV Electric 120 Volt - 80010

Authorized Dealer
Brand: Warn Warn
0 reviews
  • Have a product question? Ask us
  • Part Number: 80010
  • Part Location: U.S.
  • Availability: 85 In Stock
  • Delivery: Ships Out in 1 - 2 Business Days
  • If purchased before 12:00 EDT - estimated delivery by July 14
Retail: $470.39
Price: $447.99
You Save: $22.40
Brake Type
Self Braking Transmission
Color
Gray
Drive Gear Type
Differential Planetary
Drum Material
Steel
Electrical Control Type
Circuit Breaker Protected
Estimated Install Time (Hours)
2
Fairlead Type
Hawse
Free Spooling
Yes
Gear Reduction Ratio
10.875694444
Includes Mounting Hardware
No
Line Diameter (IN)
3/16 Inch
Share this page

Warn Winch

Winch; 1000AC Series; Portable Utility Winch; 120-Volt Electric; 1000 Pound Line Pull Capacity; 43 Foot Wire Rope; Hawse Fairlead; Wired Remote; Planetary Gear Drive

MPN: 80010

Ideal for use anywhere 120-Volt AC power is available, the WARN® 1000AC winch delivers 1,000 Pounds of pulling capacity. 43 Foot of wire rope, a long duty cycle and legendary WARN durability make this a tool you can rely on to get the job done.
Winch Rating: 1000 Pound
Recommended Use: UTV
Type: Electric
Mount Type: Portable
Voltage: 120 Volt
Motor Horsepower: 0.8 Horsepower
Thermal Shutoff: No
Gear Reduction Ratio: 10.875694444
Free Spooling: Yes
Operation Type: Power
Line Length (FT): 43 Feet
Line Material: Steel
Fairlead Type: Hawse
Remote Type: Wired
Brake Type: Self Braking Transmission
Includes Mounting Hardware: No
Color: Gray
Mounting Pattern Size: 3 Inch Length X 2-1/2 Inch Width
Max Amp Draw: 6 Amp Draw At 1000 Pound
Line Speed At Max Pull: 5.5 Feet Per Minute At 1000 Pound
Electrical Control Type: Circuit Breaker Protected
Motor Type: Permanent Magnet
Drive Gear Type: Differential Planetary
Line Diameter (IN): 3/16 Inch
Mounting Hole Quantity: 4
Drum Material: Steel
Estimated Install Time (Hours): 2

Please refer the Technical Bulletins attached to the Product Manual tab

Features

  • The 1000AC Winch Delivers 1,000 Pounds Of Pulling Capacity
  • 43 Foot Of Wire Rope, A Long Duty Cycle And Legendary WARN Durability Make This A Tool You Can Rely On To Get The Job Done
  • Limited 1 Year Warranty
Specifications of Warn Winch 1000 Pound UTV Electric 120 Volt - 80010
Brake Type Self Braking Transmission
Color Gray
Drive Gear Type Differential Planetary
Drum Material Steel
Electrical Control Type Circuit Breaker Protected
Estimated Install Time (Hours) 2
Fairlead Type Hawse
Free Spooling Yes
Gear Reduction Ratio 10.875694444
Includes Mounting Hardware No
Line Diameter (IN) 3/16 Inch
Line Length (FT) 43 Feet
Line Material Steel
Line Speed At Max Pull 5.5 Feet Per Minute At 1000 Pound
Max Amp Draw 6 Amp Draw At 1000 Pound
Motor Horsepower 0.8 Horsepower
Motor Type Permanent Magnet
Mount Type Portable
Mounting Hole Quantity 4
Mounting Pattern Size 3 Inch Length X 2-1/2 Inch Width
Operation Type Power
Recommended Use UTV
Remote Type Wired
Thermal Shutoff No
Type Electric
Voltage 120 Volt
Winch Rating 1000 Pound
