Turbonetics Turbocharger - 11897
Brand: Turbonetics
- Have a product question? Ask us
- Part Number: 11897
- Part Location: U.S.
- Availability: Out Of Stock
Retail: $1,558.19
Price:
$1,483.99
You Save: $74.20
Bearing Type
Journal
Compressor Wheel Construction
Billet Aluminum
Compressor Wheel Exducer Size
62 Millimeter
Compressor Wheel Inducer Size
48 Millimeter
Cooling Type
Oil And Water Cooled
Turbine Housing A/R Ratio
0.65
Turbine Housing Outlet Type
V-Band
Turbine Wheel Exducer Size
54 Millimeter
Turbine Wheel Inducer Size
43 Millimeter
Wastegate Location
Internal
With Gasket
No
Share this page
Turbonetics Turbocharger

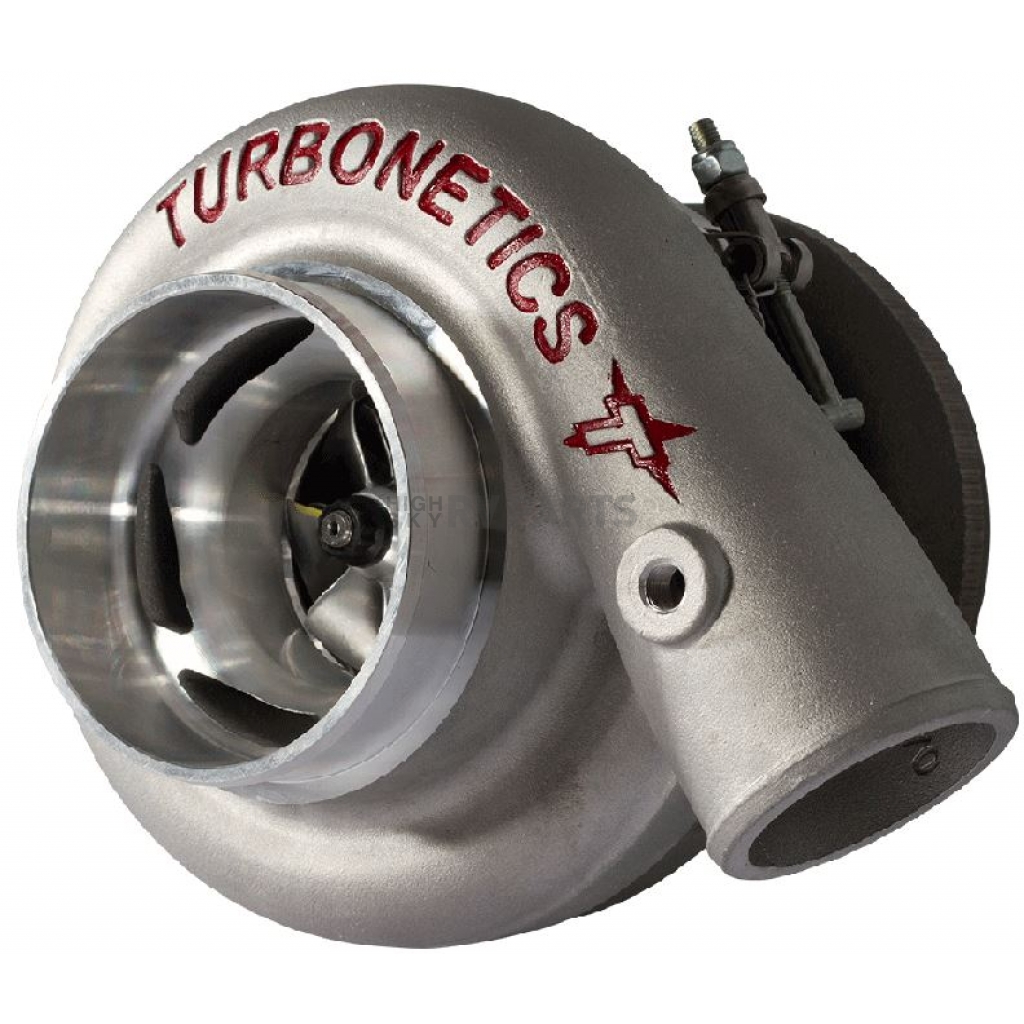

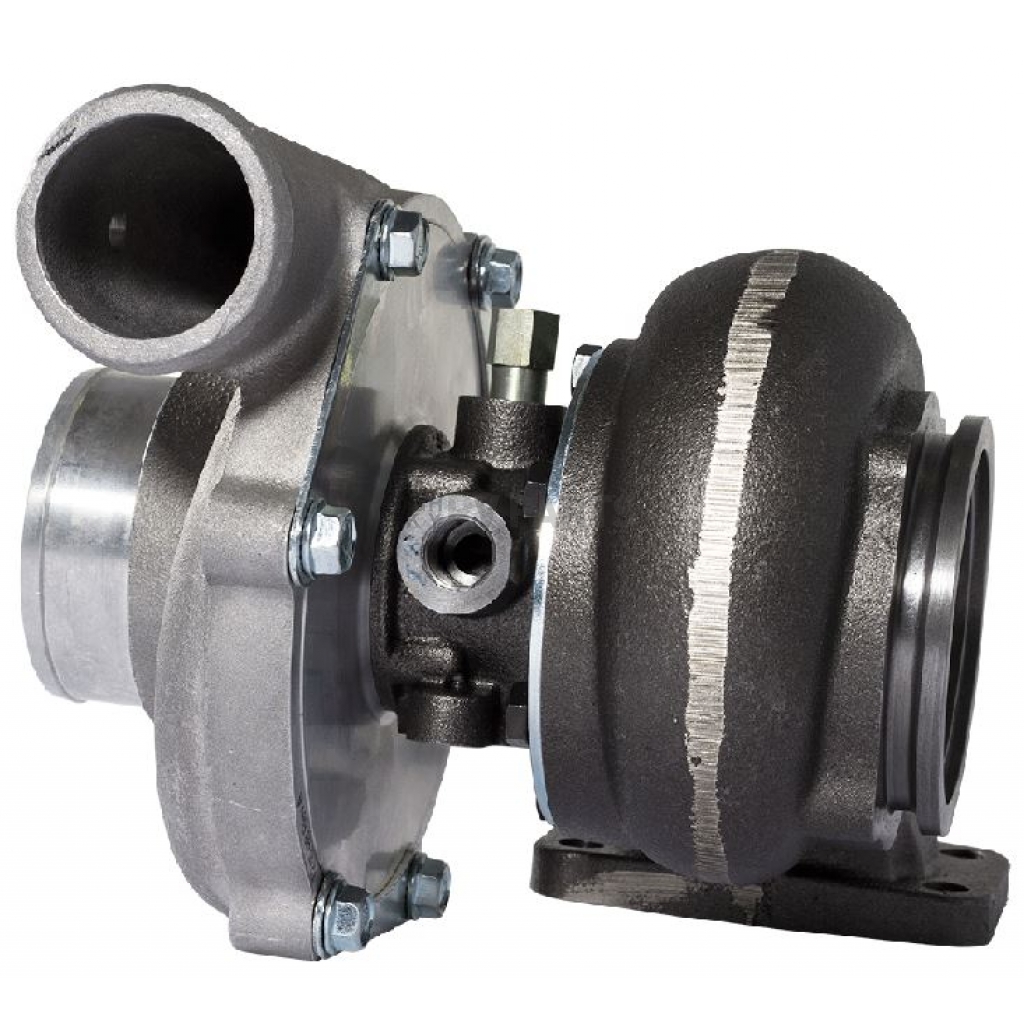

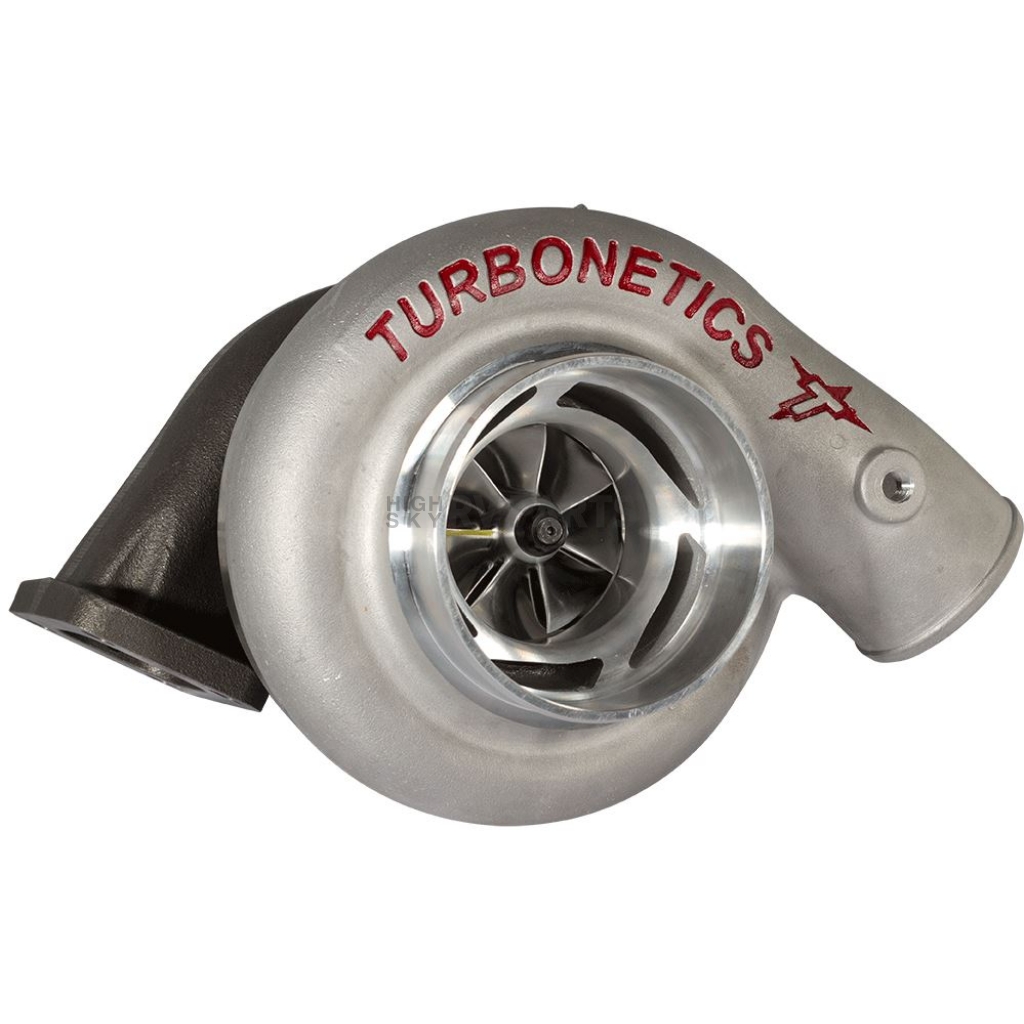

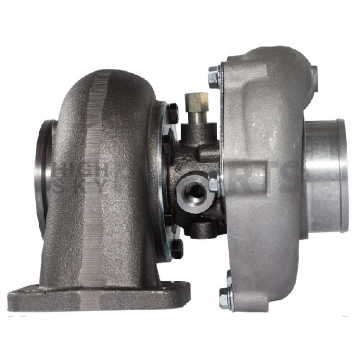

Turbocharger; TNX 20; 62/48 Millimeter Compressor Wheel; T4B Compressor Housing; 54/43 Millimeter Turbine Wheel; T2 Turbine Housing; 0.65 A/R; Journal Bearing; Oil and Water Cooled; Internal Wastegate
MPN: 11897
Turbonetics is pleased to present the TNX Series Turbocharger. The Newest Addition To Our Line Up. A clean sheet design that packs cutting edge turbocharger technology into a compact package to get the most from your engine. Turbonetics TNX Compressor and Turbine Stages are designed using advanced Computational Fluid Dynamics (CFD) and Finite Element Analysis (FEA) tools to optimize performance and durability. This ensures high efficiency over a broad operating range and reliability under the most demanding conditions. Our Compressor Wheels and Housings are designed for high air flow and wide operating range to maximize Horsepower and drivability. Our turbines are designed for low inertia and high exhaust temperatures for fast boost response and longevity under extreme operation.
Bearing Type: Journal
Compressor Wheel Construction: Billet Aluminum
Compressor Wheel Exducer Size: 62 Millimeter
Compressor Wheel Inducer Size: 48 Millimeter
Cooling Type: Oil And Water Cooled
Turbine Housing A/R Ratio: 0.65
Turbine Housing Outlet Type: V-Band
Turbine Wheel Exducer Size: 54 Millimeter
Turbine Wheel Inducer Size: 43 Millimeter
Wastegate Location: Internal
With Gasket: No
Features
- New CFD And FEA Designed High-Efficiency Compressor And Turbine Wheels Ensures High Efficiency Over A Broad Operating Range And Reliability Under The Most Demanding Conditions
- Ultra-Low-Friction Dual Ceramic Ball Bearing Or Low-Friction Journal Bearing
- Water-Cooled For Extended Bearing And Seal Life
- Lightweight, Compact Outline, Engineered And Built From The Ground Up To Provide Maximum Performance For Smaller Displacement High-Performance Applications
- Dual Oil Seals At Each End Of The Shaft
- Our Compressor Wheels And Housings Are Designed For High Air Flow And Wide Operating Range To Maximize Horsepower And Drivability
- Designed For Low Inertia And High Exhaust Temperatures For Fast Boost Response And Longevity Under Extreme Operation
- Limited 1 Year Warranty
| Specifications of Turbonetics Turbocharger - 11897 | |
| Bearing Type | Journal |
| Compressor Wheel Construction | Billet Aluminum |
| Compressor Wheel Exducer Size | 62 Millimeter |
| Compressor Wheel Inducer Size | 48 Millimeter |
| Cooling Type | Oil And Water Cooled |
| Turbine Housing A/R Ratio | 0.65 |
| Turbine Housing Outlet Type | V-Band |
| Turbine Wheel Exducer Size | 54 Millimeter |
| Turbine Wheel Inducer Size | 43 Millimeter |
| Wastegate Location | Internal |
| With Gasket | No |
