Turbo Smart Fuel Pressure Regulator - TS-0401-1103
Color
Blue
Fuel Type
Gasoline/ Ethanol
Gauge Port
Yes
Includes Fittings
Yes
Includes Mounting Brackets
Yes
Inlet Attachment
Male Threads
Inlet Quantity
Dual
Inlet Size
3/8 Inch (-6 AN)
Material
Aluminum
Outlet Attachment
Male Threads
Outlet Quantity
Single
Share this page

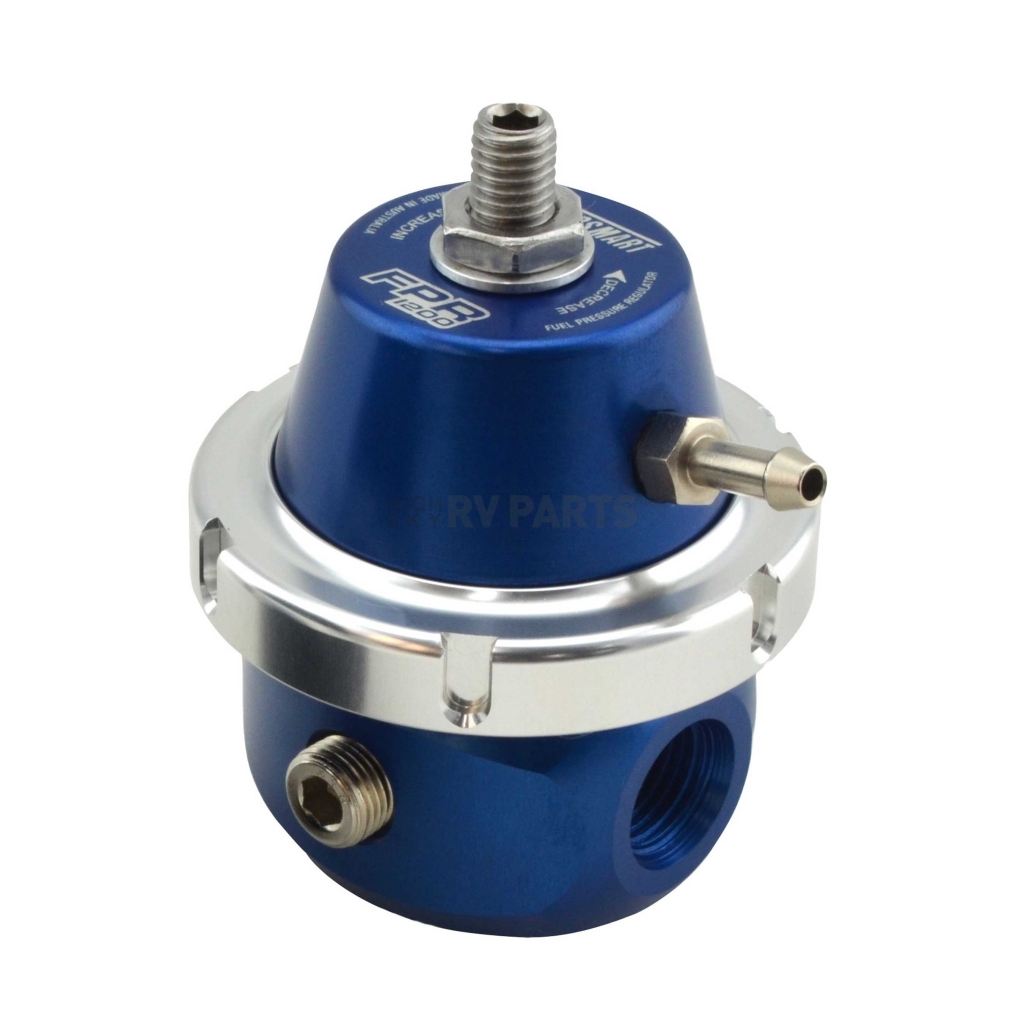

Turbo Smart Fuel Pressure Regulator
Fuel Pressure Regulator; FPR1200; For Up To 1200 Horsepower; 35-90 PSI; 6AN Inlet/Outlets; Gasoline/ E85; Blue; Aluminum
MPN: TS04011103
Turbosmart’s newest High-performance EFI fuel pressure regulator is smaller, lighter and better. Featuring two -6AN inlet ports, one -6AN return port, and one 1/8 NPT gauge port, 30 to 90 PSI base pressure adjustment, 1:1 ratio, premium diaphragm and stainless steel valve + seat allow for ANY fuel type including E85 and is suitable for engines with up to 1200 horsepower fuel systems. FPR’s feature a non-directional bias to regulation, so no matter where the fuel comes in they will regulate the same. Factory tested.
Fuel Type: Gasoline/ Ethanol
Pressure Range (PSI): 30 To 90 Pounds Per Square Inch
Regulator Type: High-Performance EFI
Gauge Port: Yes
Inlet Attachment: Male Threads
Inlet Quantity: Dual
Inlet Size: 3/8 Inch (-6 AN)
Outlet Attachment: Male Threads
Outlet Quantity: Single
Outlet Size: 3/8 Inch (-6 AN)
Includes Fittings: Yes
Includes Mounting Brackets: Yes
Return Port Size: 3/8 Inch (-6AN)
Color: Blue
Material: Aluminum
Features
- Stainless steel internals providing maximum integrity and reliability
- Capable of regulating up to 1200 horsepower of fuel flow
- 1:1 manifold pressure ratio with no load losses
- MILSPEC diaphragm
- Limited 1 Year Warranty
Specifications of Turbo Smart Fuel Pressure Regulator - TS-0401-1103 | |
Color | Blue |
Fuel Type | Gasoline/ Ethanol |
Gauge Port | Yes |
Includes Fittings | Yes |
Includes Mounting Brackets | Yes |
Inlet Attachment | Male Threads |
Inlet Quantity | Dual |
Inlet Size | 3/8 Inch (-6 AN) |
Material | Aluminum |
Outlet Attachment | Male Threads |
Outlet Quantity | Single |
Outlet Size | 3/8 Inch (-6 AN) |
Pressure Range (PSI) | 30 To 90 Pounds Per Square Inch |
Regulator Type | High-Performance EFI |
Return Port Size | 3/8 Inch (-6AN) |
