Turbo Smart Fuel Pressure Regulator - TS-0401-1101
Color
Blue
Fuel Type
Gasoline/ Ethanol
Gauge Port
Yes
Includes Fittings
Yes
Includes Mounting Brackets
Yes
Inlet Attachment
Male Threads
Inlet Quantity
Dual
Inlet Size
1/8 Inch (-2 AN)
Material
Aluminum
Outlet Attachment
Male Threads
Outlet Quantity
Single
Share this page

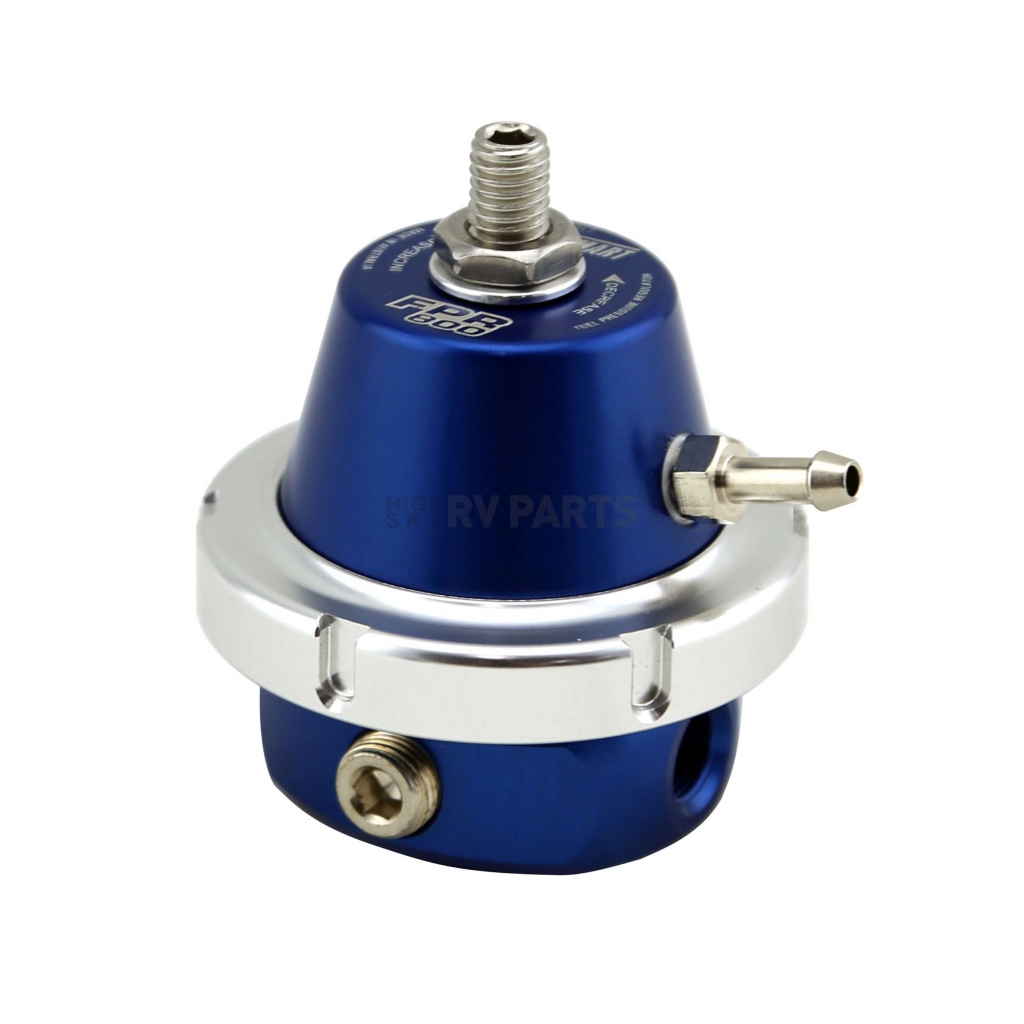

Turbo Smart Fuel Pressure Regulator
Fuel Pressure Regulator; FPR800; For Up To 800 Horsepower; 35-90 PSI; 1/8 Inch NPT Inlet/Outlets; Gasoline/ E85; Blue; Aluminum
MPN: TS04011101
Turbosmart's newest High-performance EFI fuel pressure regulator is smaller, lighter and better. Now featuring two 1/8 Inch NPT inlet ports, one 1/8 Inch NPT return port and 1/8 Inch gauge port, 35 to 90 PSI base pressure adjustment, 1:1 ratio, premium diaphragm and stainless steel valve . FPR's Features A Non-Directional Bias To Regulation, So No Matter Where The Fuel Comes In They Will Regulate The Same. Factory tested.
Fuel Type: Gasoline/ Ethanol
Pressure Range (PSI): 30 To 90 Pounds Per Square Inch
Regulator Type: High-Performance EFI
Gauge Port: Yes
Inlet Attachment: Male Threads
Inlet Quantity: Dual
Inlet Size: 1/8 Inch (-2 AN)
Outlet Attachment: Male Threads
Outlet Quantity: Single
Outlet Size: 1/8 Inch (-2 AN)
Includes Fittings: Yes
Includes Mounting Brackets: Yes
Return Port Size: 1/8 Inch (-2AN)
Color: Blue
Material: Aluminum
Features
- Stainless steel internals providing maximum integrity and reliability
- Capable of regulating up to 800 horsepower of fuel flow
- 1:1 manifold pressure ratio with no load losses
- MILSPEC diaphragm
- Limited 1 Year Warranty
Specifications of Turbo Smart Fuel Pressure Regulator - TS-0401-1101 | |
Color | Blue |
Fuel Type | Gasoline/ Ethanol |
Gauge Port | Yes |
Includes Fittings | Yes |
Includes Mounting Brackets | Yes |
Inlet Attachment | Male Threads |
Inlet Quantity | Dual |
Inlet Size | 1/8 Inch (-2 AN) |
Material | Aluminum |
Outlet Attachment | Male Threads |
Outlet Quantity | Single |
Outlet Size | 1/8 Inch (-2 AN) |
Pressure Range (PSI) | 30 To 90 Pounds Per Square Inch |
Regulator Type | High-Performance EFI |
Return Port Size | 1/8 Inch (-2AN) |
