Teraflex Leveling Kit Suspension - 0504324000

Brand: Teraflex

Have a product question? Ask us
Part Number: 0504324000
Part Location: U.S.
Availability: 1 In Stock
Delivery: Ships Out in 1 - 2 Business Days
If purchased before 12:00 EDT - estimated delivery by May 21

Retail: $1,840.64

Price: $1,752.99

You Save: $87.65

Amount Raised Or Lowered

2 Inch Lift

Color

Estimated Install Time (Hours)

Includes Shock/Struts

Material

Aluminum

Strut Assembly

Share this page

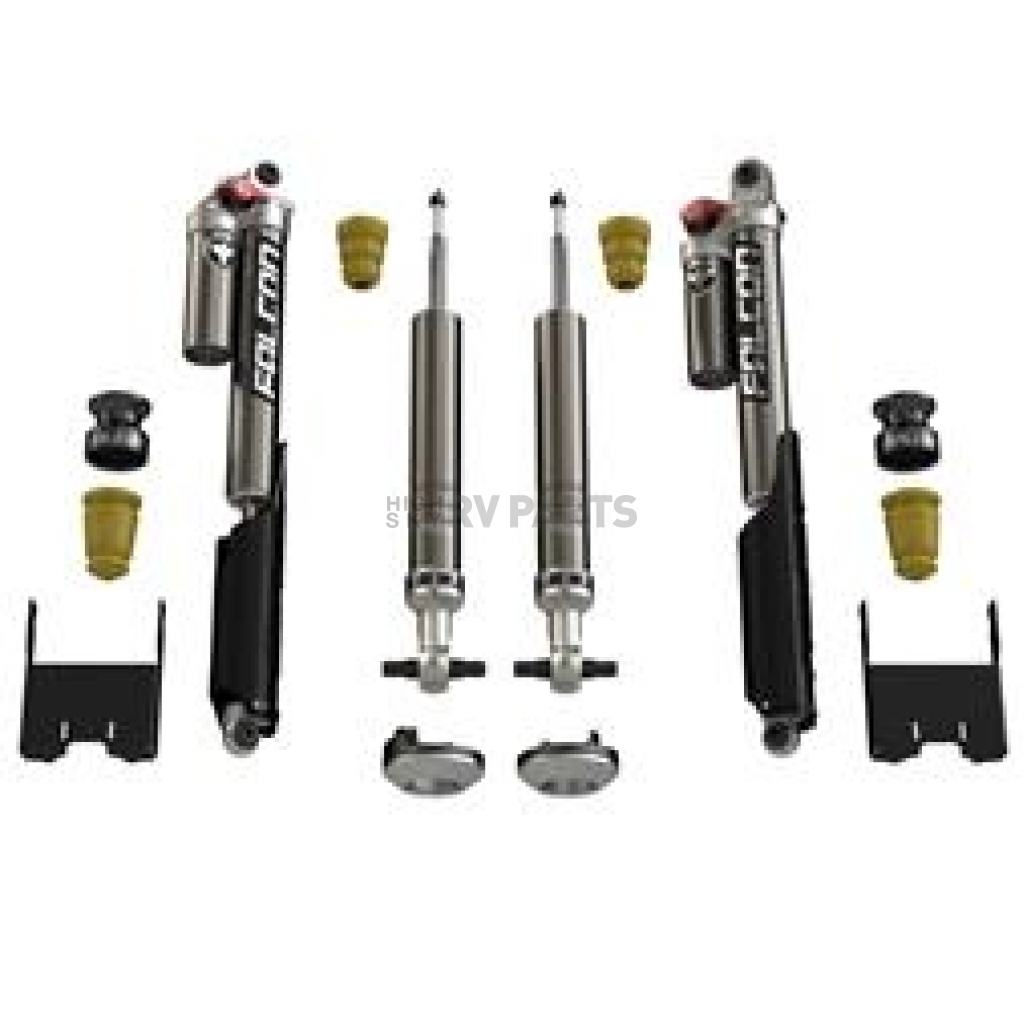

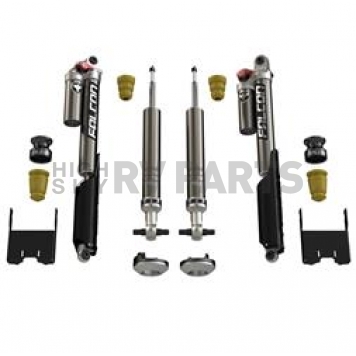

Teraflex Leveling Kit Suspension

Leveling Kit Suspension; Falcon 2.1 Sport; 0 To 2 Inch Adjustable Lift; Replacement Struts; With Front Struts And Rear Falcon Adjustable Piggyback Shock Absorbers/ Front And Rear Bump Stops/ Coil Spring Isolator/ Rear Bump Stop Cups/ Rear Roost Guards/ Installation Hardware

MPN: 0504324000

The Ford F-150 Falcon Sport Tow or Haul Shock Absorber Systems pair monotube front shock absorbers with adjustable piggyback rear shock absorbers with settings for comfort and control or for towing and hauling duties. The rear shocks feature a three-position Fast Adjust Knob that allows the driver to select from Comfort and Control, Moderate Tow or Haul, and Heavy Tow or Haul settings. Zone Rate Tuning (ZRT) manipulates the factory linear-rate spring tuning to produce three distinct performance zones with a more exaggerated spring curve to tackle various driving conditions. An internal negative-rate spring offsets the factory spring’s preload while in the Extension Zone. This eliminates top out clunk and shock stress at full extension, while softening tire landing and reducing body roll on impact during aggressive driving. The factory spring rate is unaffected in Drive Zone for a comfortable and controlled ride. A provided progressive microcellular bump stop effectively retunes the spring rate while in Compression Zone to reduce bottoming and body roll during aggressive driving. Traditional velocity sensitive shock absorbers react quickly during low speed driving causing excessive “head toss” on rough terrain – or even driveways. Conventional damping then firms up during faster speeds resulting in a jarring ride. Falcon’s proprietary Volume Optimized Damping (VOD) features a digressive linear valve that produces quicker ramp up for increased damping volume, which improves vehicle feedback and control during low-speed driving. VOD also improves the shock absorber’s ability to reduce bottoming out at full compression during faster speeds or over uneven terrain.

Amount Raised Or Lowered: 2 Inch Lift

Type: Strut Assembly

Includes Shock/Struts: Yes

Color: Gray

Material: Aluminum

Estimated Install Time (Hours): 2

Features

Rear Fast Adjust Knob With 3 Compression Settings For Large Damping Adjustments; Application-Specific Pickup Shock Absorbers With Race-Inspired Performance
Front Shock Features Multiple Snap Ring Grooves To Level Out Front End; Snap Ring Grooves Maintain Set Ride Height (Instructions Laser Etched On Shock Body)
Dramatic Improvement In On-Road Comfort And Off-Road Performance; Increases Vehicle Stability; Improved Dynamic Roll Control And Low Speed Damping
All Testing Done On E-Rated Tires (Worst Possible Ride); 2.25 Inch Shock Body Provides Optimal Performance; Built In-House At The TeraFlex Falcon Shock Division; Patent Pending Design
6061-T6 Aluminum Alloy Shock Body Resists Wear And Protects Internal Components While Providing Superior Heat Dissipation; Smooth Honed Internal Shock Body Surface For Long-Term Performance
3/4 Inch Shaft To Prevent Shaft Buckling; Induction Hardened Chrome Plated Shaft Resists Rock Damage And Corrosion; Hard Anodized Piston
Zone Rate Tuning (ZRT) Retunes The Factory Spring In The Extension, Drive And Compression Zones; OGS – The Oil Or Gas Separator Prevents Cavitation; Digressive Linear Piston
Negative Spring Inside Shock Body Eliminates Top Out Clunk, Softens Tire Landing, And Reduces Body Roll And Stress On Shock; Application-Specific Tuned Bump Stop Reduces Bottoming Out And Body Roll
Synthetic Formula Also Contains Special Anti-Wear And Lubricity Agents For Excellent Thermal Stability; Optimized Fitment For Clearance During Full Suspension Travel
Limited 3 Year Warranty

Specifications of Teraflex Leveling Kit Suspension - 0504324000
Amount Raised Or Lowered	2 Inch Lift
Color	Gray
Estimated Install Time (Hours)	2
Includes Shock/Struts	Yes
Material	Aluminum
Type	Strut Assembly
