Teraflex Heavy Duty Ball Joint Press In Style - 3442022
Adjustability
Adjustable
Application
DANA 30/ DANA 44 Axles
Greasable
Yes
Housing Type
Press-In Style With Knurl
Includes Dust Boots
No
Quantity
Two Upper And Two Lower
Rebuildable
No
Share this page

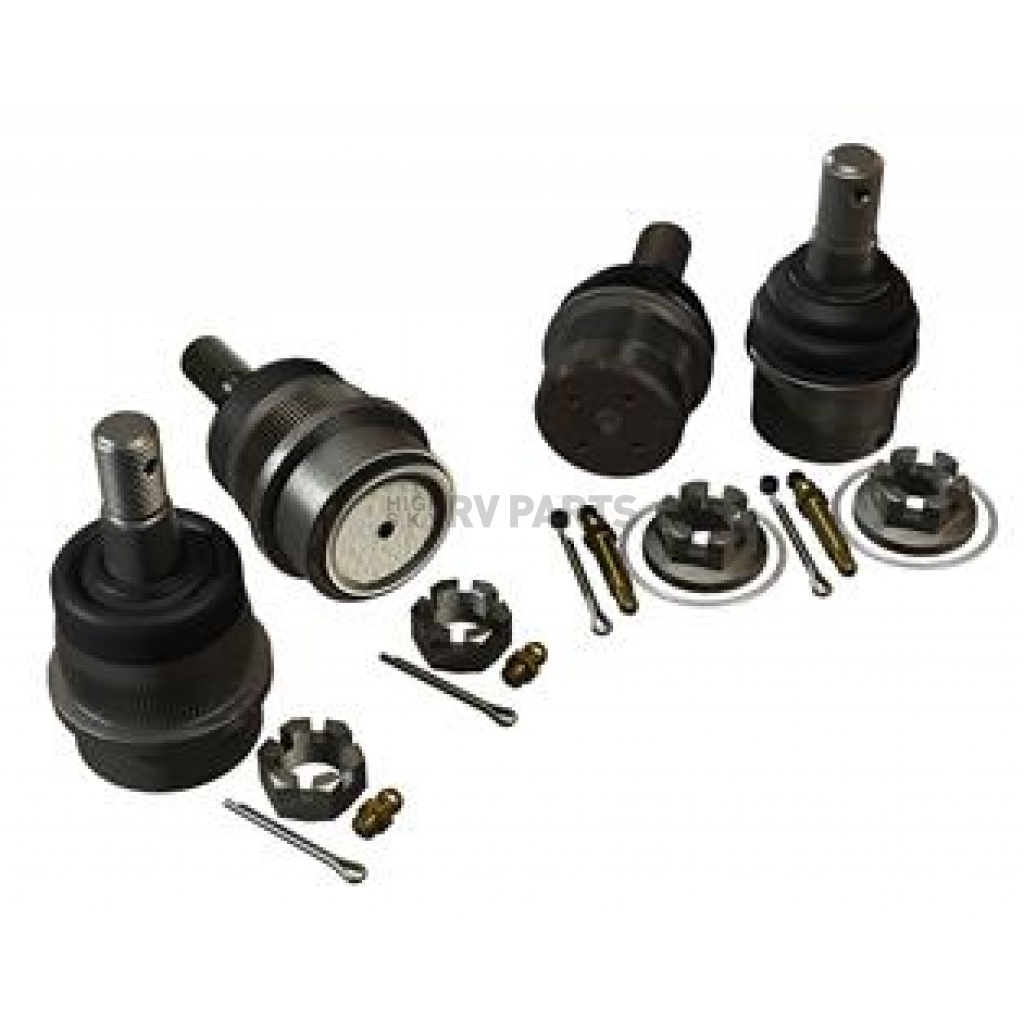

Teraflex Ball Joint
Ball Joint; Heavy Duty; Press In Style With Knurl; Adjustable; With Grease Fittings; For Use With DANA 30/ DANA 44 Axles; Non Rebuildable; With Two Upper And Two Lower Ball Joint
MPN: 3442022
TeraFlex JK HD Ball Joints replace the weak factory ball joints that are unable to handle the demands of repeated off road use or larger tires. The ball joint studs are made from 4140 chrome moly steel for high hardenability and are heat treated to provide excellent fatigue and abrasion resistance. The weak factory plastic cups have been eliminated. The upper ball joint has two sintered metal bearings to handle the rotational load and the lower ball stud rides in a metal cup that is threaded to provide for a precise pre-load. In-between the lower ball joint threaded cup and ball stud is a special plate spring made from high carbon tool steel for excellent wear resistance as the lower joint must bear the vehicle weight. The lower ball joint also features an oversized flanged nut for a good bearing surface against the outer knuckle. Both ball joints have grease zerks that are easy to service. The lower ball joint has a special flush needle zerk that is offset for u-joint clearance and ease of maintenance.
Housing Type: Press-In Style With Knurl
Adjustability: Adjustable
Greasable: Yes
Rebuildable: No
Application: DANA 30/ DANA 44 Axles
Includes Dust Boots: No
Quantity: Two Upper And Two Lower
Please refer the Technical Bulletins attached to the Product Manual tab
Features
- Heat treated 4140 chromoly ball/ stud and 1045 carbon steel housing
- Magnesium Phosphate coating to inhibit corrosion throughout
- Upper Ball Joint: Extremely hard sintered wear bushings to handle extreme side load demands without failure. Factory-style serrated flange nut and grease fitting
- Lower Ball Joint: Hard alloy tool steel slotted wear plate for ball/ stud to socket wear protection
- Wear plate features dual helical grease channels for increased flow through entire joint ensuring longevity and predictable operation
- Factory-style serrated flanged castle nut
- Low-profile single lip dust seal prevents contaminants
- 30 Millimeter (1.18 Inch) adjustable ball stud for accurate initial and future preload adjustments using simple hand tools
- 2 grease zerk fittings allow greasing access from either side
- Limited 1 Year Warranty
| Specifications of Teraflex Heavy Duty Ball Joint Press In Style - 3442022 | |
| Adjustability | Adjustable |
| Application | DANA 30/ DANA 44 Axles |
| Greasable | Yes |
| Housing Type | Press-In Style With Knurl |
| Includes Dust Boots | No |
| Quantity | Two Upper And Two Lower |
| Rebuildable | No |
2007 Jeep Wrangler JK
2008 Jeep Wrangler JK
2009 Jeep Wrangler JK
2010 Jeep Wrangler JK
2011 Jeep Wrangler JK
2012 Jeep Wrangler JK
2013 Jeep Wrangler JK
2008 Jeep Wrangler JK
2009 Jeep Wrangler JK
2010 Jeep Wrangler JK
2011 Jeep Wrangler JK
2012 Jeep Wrangler JK
2013 Jeep Wrangler JK
