TCI Automotive Harmonic Balancer - 870017

Authorized Dealer
Brand: TCI Automotive TCI Automotive
0 reviews
  • Have a product question? Ask us
  • Part Number: 870017
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 17
Retail: $613.19
Price: $583.99
You Save: $29.20
Balance Style
Internal
Degree Markings
Yes
Degree Markings Range
360 Degree
Engine Compatibility
Chevy Small Block V8 262-265-283-305-350-400 Cubic Inch
Material
Steel
Outside Diameter (IN)
6.290 Inch
Safety Rating
SFI 18.1
Thickness (IN)
1-1/4 Inch
Share this page

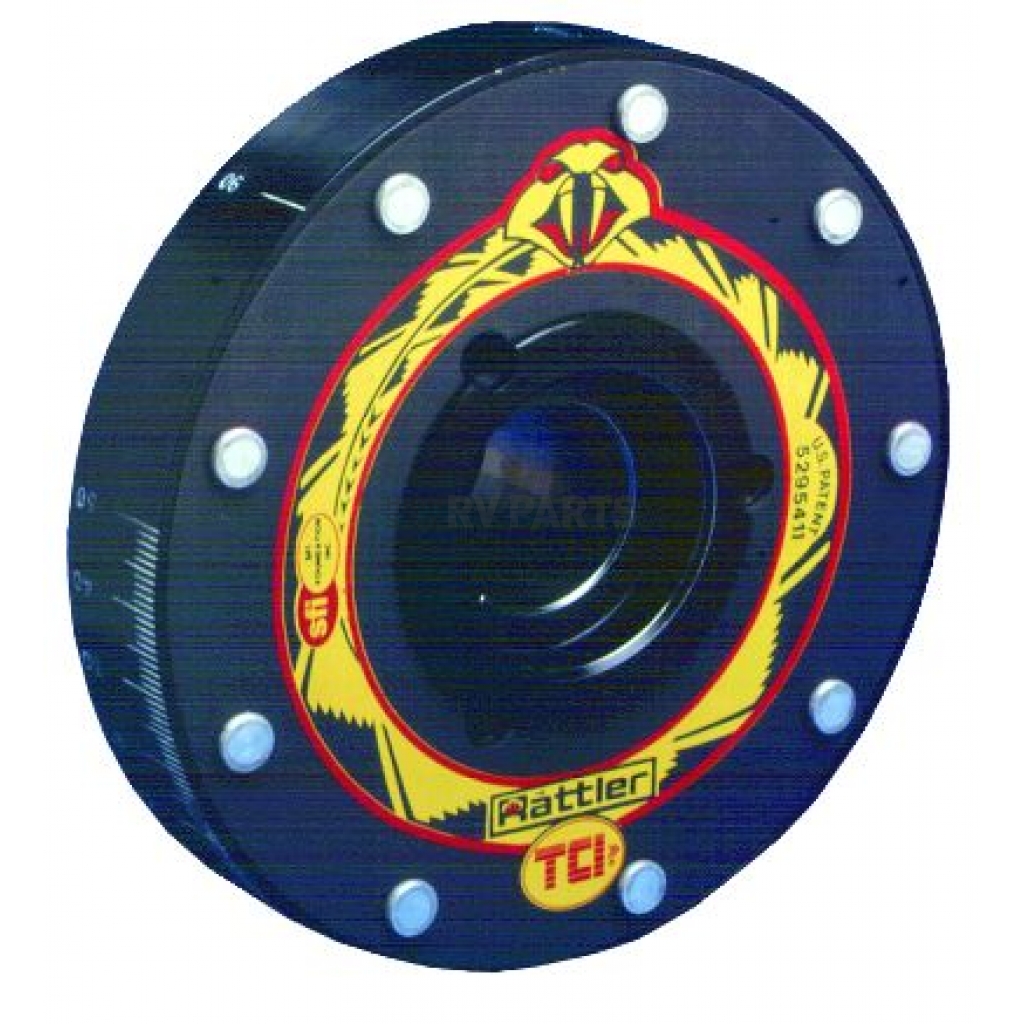

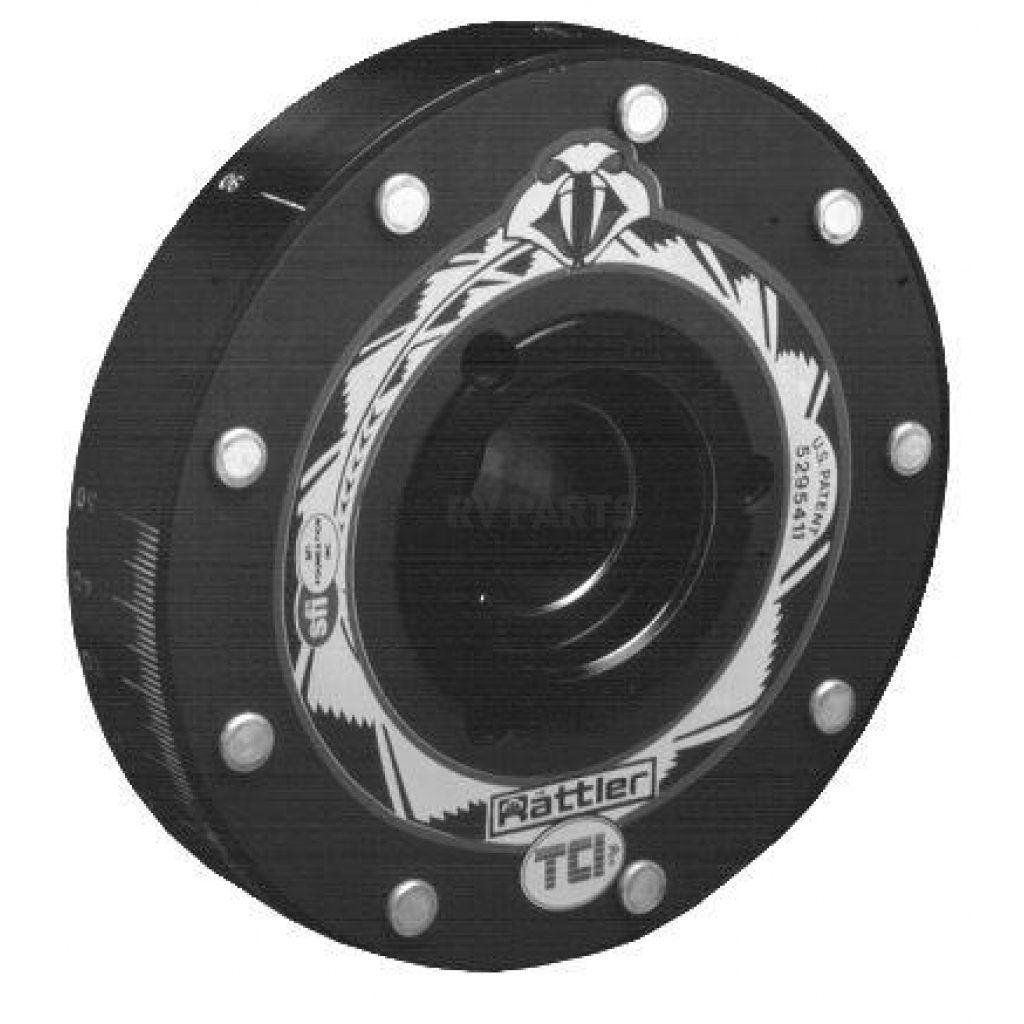

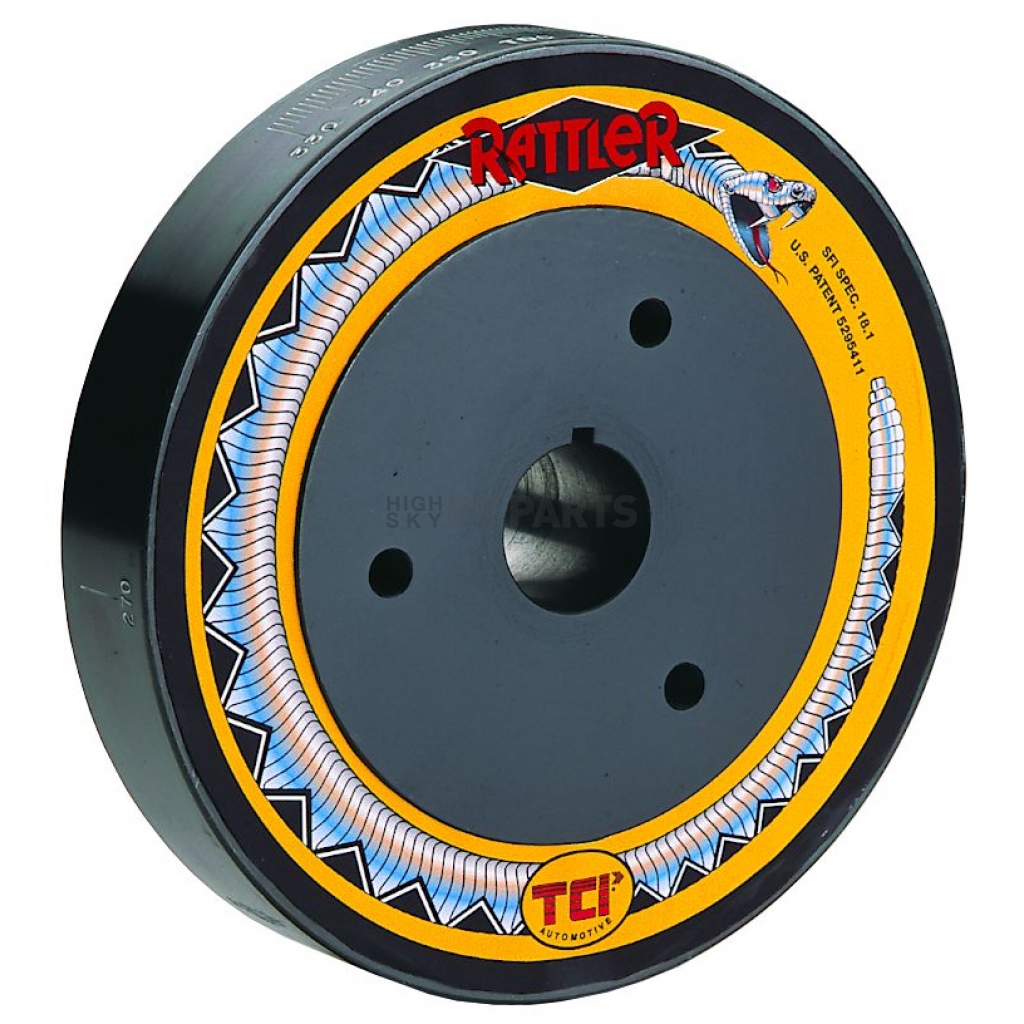

TCI Automotive Harmonic Balancer

Harmonic Balancer; Rattler ®; 6.290 Inch; Internal; 3 Bolt; 1.246 Inch; Steel; 1.250 Inch; Spacer Not Required

MPN: 870017

The Rattler® by TCI® is a pendulum absorber developed to control amplitudes of vibration and angle of crankshaft twist like no other design. Its ability to absorb rather than dampen is the key to its success. The Rattler® is effective for the entire RPM range and extends crankshaft and bearing life. The Rattler® also has the ability to allow the engine to run smoother during operation, which can potentially increase valve train stability and life. The design does not utilize viscous fluids and requires virtually no maintenance. You can always depend on the Rattler® timing marks to be correct because they are etched onto the body and cannot move relative to crankshaft centerline. The Rattler® is also lighter in weight than most units of the same size and material construction.
Engine Compatibility: Chevy Small Block V8 262-265-283-305-350-400 Cubic Inch
Balance Style: Internal
Outside Diameter (IN): 6.290 Inch
Thickness (IN): 1-1/4 Inch
Material: Steel
Safety Rating: SFI 18.1
Degree Markings: Yes
Degree Markings Range: 360 Degree

Features

  • Available In 6.25 Inch And 7.25 Inch Diameters (External Balance Chevrolet Are 8 Inch Diameter)
  • Integral Timing Marks Cannot Move Relative To The Crankshaft
  • No Fluids, Elastomers Or Friction Materials
  • Maintains Maximum Effectiveness At All Engine Speeds
  • CNC Machined To Exacting Tolerances
  • No Pulley Or Crank Trigger Shims Required
  • SFI 18.1 Certified
  • Limited 30 Day Warranty On Racing Equipment And Limited 90 Day Warranty On Street Or Strip Equipment
Specifications of TCI Automotive Harmonic Balancer - 870017
Balance Style Internal
Degree Markings Yes
Degree Markings Range 360 Degree
Engine Compatibility Chevy Small Block V8 262-265-283-305-350-400 Cubic Inch
Material Steel
Outside Diameter (IN) 6.290 Inch
Safety Rating SFI 18.1
Thickness (IN) 1-1/4 Inch

1900 Chevrolet Small Block 1955-1986

1982 Pontiac 6000
1983 Pontiac 6000
1984 Pontiac 6000
1985 Pontiac 6000
1986 Pontiac 6000
1987 Pontiac 6000
1988 Pontiac 6000
1989 Pontiac 6000
1990 Pontiac 6000
1991 Pontiac 6000

1975 Pontiac Astre
1976 Pontiac Astre
1977 Pontiac Astre

1984 Pontiac Fiero
1985 Pontiac Fiero
1986 Pontiac Fiero
1987 Pontiac Fiero
1988 Pontiac Fiero

1982 Pontiac Firebird
1983 Pontiac Firebird
1984 Pontiac Firebird
1985 Pontiac Firebird
1986 Pontiac Firebird

2009 Pontiac G3

2007 Pontiac G5
2008 Pontiac G5
2009 Pontiac G5

2006 Pontiac G6
2007 Pontiac G6
2008 Pontiac G6
2009 Pontiac G6
2010 Pontiac G6

1985 Pontiac Grand Am
1986 Pontiac Grand Am
1987 Pontiac Grand Am
1988 Pontiac Grand Am
1989 Pontiac Grand Am
1990 Pontiac Grand Am
1991 Pontiac Grand Am
1992 Pontiac Grand Am
1993 Pontiac Grand Am
1994 Pontiac Grand Am
1995 Pontiac Grand Am
1996 Pontiac Grand Am
1997 Pontiac Grand Am
1998 Pontiac Grand Am
1999 Pontiac Grand Am
2000 Pontiac Grand Am
2001 Pontiac Grand Am
2002 Pontiac Grand Am
2003 Pontiac Grand Am
2004 Pontiac Grand Am
2005 Pontiac Grand Am

1990 Pontiac Grand Prix
1991 Pontiac Grand Prix

1982 Pontiac J2000
1983 Pontiac J2000

1984 Pontiac J2000 Sunbird
1985 Pontiac J2000 Sunbird

1963 Pontiac LeMans

1988 Pontiac LeMans
1989 Pontiac LeMans
1990 Pontiac LeMans
1991 Pontiac LeMans
1992 Pontiac LeMans
1993 Pontiac LeMans

1977 Pontiac Phoenix
1978 Pontiac Phoenix

1980 Pontiac Phoenix
1981 Pontiac Phoenix
1982 Pontiac Phoenix
1983 Pontiac Phoenix
1984 Pontiac Phoenix

2006 Pontiac Solstice
2007 Pontiac Solstice
2008 Pontiac Solstice
2009 Pontiac Solstice

1976 Pontiac Sunbird
1977 Pontiac Sunbird
1978 Pontiac Sunbird
1979 Pontiac Sunbird
1980 Pontiac Sunbird

1986 Pontiac Sunbird
1987 Pontiac Sunbird
1988 Pontiac Sunbird
1989 Pontiac Sunbird
1990 Pontiac Sunbird
1991 Pontiac Sunbird
1992 Pontiac Sunbird
1993 Pontiac Sunbird
1994 Pontiac Sunbird

1995 Pontiac Sunfire
1996 Pontiac Sunfire
1997 Pontiac Sunfire
1998 Pontiac Sunfire
1999 Pontiac Sunfire
2000 Pontiac Sunfire
2001 Pontiac Sunfire
2002 Pontiac Sunfire
2003 Pontiac Sunfire
2004 Pontiac Sunfire
2005 Pontiac Sunfire

1981 Pontiac T1000
1982 Pontiac T1000
1983 Pontiac T1000
1984 Pontiac T1000
1985 Pontiac T1000
1986 Pontiac T1000
1987 Pontiac T1000

1961 Pontiac Tempest
1962 Pontiac Tempest
1963 Pontiac Tempest

1977 Pontiac Ventura

2007 Pontiac Vibe
2008 Pontiac Vibe
2009 Pontiac Vibe
2010 Pontiac Vibe
