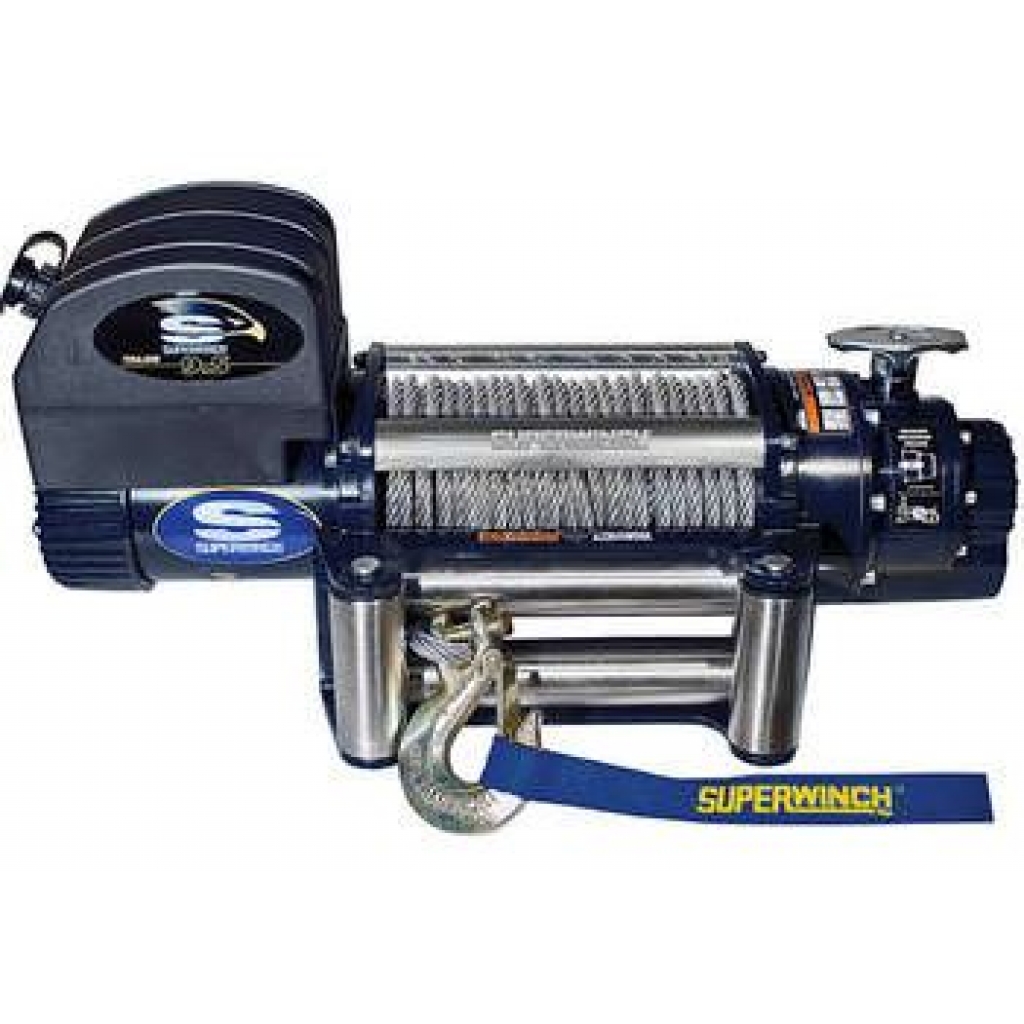

Superwinch Winch 9500 Pound Vehicle Mounted Power - 1695300
Brake Type
Dynamic
Color
Blue
Drive Gear Type
Planetary And Spur
Drum Material
Steel
Electrical Control Type
Vented/ Sealed Submersible Solenoid
Estimated Install Time (Hours)
2
Fairlead Type
Roller
Free Spooling
Yes
Gear Reduction Ratio
6.1673611111
Includes Mounting Hardware
Yes
Line Diameter (IN)
3/8 Inch
Share this page
Superwinch Winch
Winch; Talon 9.5; Vehicle Mounted; Vehicle Recovery; 24 Volt Electric; 9500 Pound Line Pull Capacity; 85 Foot Wire Rope; Roller Fairlead; Wired Remote; Vented/ Sealed Submersible Solenoid; 2-Stage Planetary and 2 -Stage Spur Gear
MPN: 1695300
This is the industry's best truly sealed vehicle recovery winch assembly. All seals on the entire winch meet the IP67 standard, from the outermost end of the high performance motor and groundbreaking solenoid to the 2-stage planetary and 2-stage spur gearbox. Superwinch synthetic ropes are genuine AmSteel-Blue™ with Samthane™, a special coating to help resist abrasion. The raw material in AmSteel-Blue™ is made from genuine Dyneema(R) SK-75 High Modulus Polyethylene fiber, "which is the worlds strongest fiber™" made by Samson Rope Technologies. AmSteel(R)-Blue is a torque-free 12-strand single braid that yields the maximum in strength-to-weight ratio and, size for size, is the same strength as steel—yet it floats. AmSteel(R)-Blue outlasts wire 3:1, making it an excellent wire rope replacement. It has extremely low stretch and superior flex fatigue and wear resistance. Average strength is 19,600 Pound and minimum strength is 17,600 Pound Elastic elongation is only 0.96 Percent at 30 Percent of the break strength.
Winch Rating: 9500 Pound
Recommended Use: Vehicle Recovery
Type: Electric
Mount Type: Fixed Mount
Voltage: 24 Volt
Motor Horsepower: 5.2 Horsepower
Thermal Shutoff: No
Gear Reduction Ratio: 6.1673611111
Free Spooling: Yes
Operation Type: Power
Line Length (FT): 85 Feet
Line Material: Steel
Fairlead Type: Roller
Remote Type: Wired
Brake Type: Dynamic
Includes Mounting Hardware: Yes
Color: Blue
Mounting Pattern Size: 10 Inch Length X 4-1/2 Inch Width
Max Amp Draw: 430 Amp Draw At 9500 Pound
Line Speed At Max Pull: 5 Feet Per Minute At 9500 Pound
Electrical Control Type: Vented/ Sealed Submersible Solenoid
Motor Type: Series Wound
Drive Gear Type: Planetary And Spur
Line Diameter (IN): 3/8 Inch
Mounting Hole Quantity: 4
Drum Material: Steel
Estimated Install Time (Hours): 2
Features
- The Solenoid Will Keep Out Water, Mud, Snow, And Dust And Has A Patented Venting Feature That Allows The Contacts To Resist Water And Release Contact Damaging Internal Condensation
- Vented, Sealed Submersible Solenoid
- Free-Spooling Clutch
- Automatic, 100 Percent Load Holding Brake
- Heavy-Duty/Clevis Pinned/Latched Hook
- Limited Lifetime Warranty For Mechanical Components And Limited 3 Year Warranty For Electrical Components
| Specifications of Superwinch Winch 9500 Pound Vehicle Mounted Power - 1695300 | |
| Brake Type | Dynamic |
| Color | Blue |
| Drive Gear Type | Planetary And Spur |
| Drum Material | Steel |
| Electrical Control Type | Vented/ Sealed Submersible Solenoid |
| Estimated Install Time (Hours) | 2 |
| Fairlead Type | Roller |
| Free Spooling | Yes |
| Gear Reduction Ratio | 6.1673611111 |
| Includes Mounting Hardware | Yes |
| Line Diameter (IN) | 3/8 Inch |
| Line Length (FT) | 85 Feet |
| Line Material | Steel |
| Line Speed At Max Pull | 5 Feet Per Minute At 9500 Pound |
| Max Amp Draw | 430 Amp Draw At 9500 Pound |
| Motor Horsepower | 5.2 Horsepower |
| Motor Type | Series Wound |
| Mount Type | Fixed Mount |
| Mounting Hole Quantity | 4 |
| Mounting Pattern Size | 10 Inch Length X 4-1/2 Inch Width |
| Operation Type | Power |
| Recommended Use | Vehicle Recovery |
| Remote Type | Wired |
| Thermal Shutoff | No |
| Type | Electric |
| Voltage | 24 Volt |
| Winch Rating | 9500 Pound |
